Concrete degrades silently. Rebar corrodes invisibly. In a seismic zone, what you cannot see is what kills you. Here is how the right instruments change that.
The Problem With Earthquakes Is What Happens Afterward
The Philippines averages 20 earthquakes a day. Destructive events, like the 1990 Luzon quake, the 2019 Cotabato sequence, and the 2022 Abra earthquake, have repeatedly exposed the same blind spot: concrete structures that pass visual inspection after a seismic event continue to carry loads they can no longer safely bear. Internal cracking propagates without breaking the surface. Rebar corrodes behind intact facades. Delamination advances silently until spalling begins. By the time failure is visible, it is too late. This is not a construction problem. It is an inspection problem.
“Visual inspection after an earthquake tells you what has already failed. Instrument-based NDT tells you what is about to fail. In a seismic zone, that distinction saves lives.”
Four Instruments, One Complete Assessment
Screening Eagle Technologies, through its Proceq brand, produces a complementary suite of portable NDT instruments purpose-built for concrete inspection. Used in sequence, they deliver a full structural picture from surface to core.
Schmidt Hammer OS8000 / Silver Schmidt OS8200 for Rapid Strength Triage
The rebound hammer, invented by Proceq in 1954, remains the fastest way to assess in-situ concrete compressive strength without drilling or coring. The OS8200’s optical sensor delivers superior Q-value accuracy with automatic angle correction and Bluetooth-connected reporting. After a seismic event, inspectors can map compressive strength across an entire structure in hours, flagging weakened zones for deeper investigation.

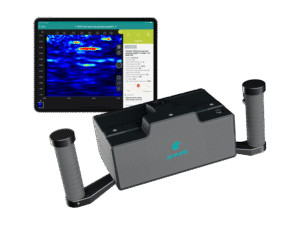

Pundit PD8050 Ultrasonic Pulse Echo Array for Internal Defect Imaging
The Pundit PD8050 transmits ultrasonic pulses through concrete from a single face and generates cross-sectional images revealing internal cracks, voids, delamination, and honeycombing. No access to the opposite face is required, which makes it practical inside damaged structures. For post-earthquake column and shear wall assessment, it is the only way to see what is happening at the structural core.

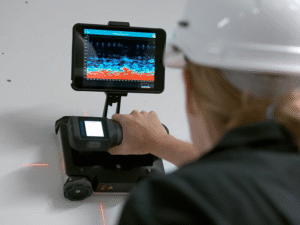

Proceq GP8000 / GS9000 Ground Penetrating Radar for Subsurface Mapping
Proceq’s stepped-frequency continuous-wave GPR technology covers the widest frequency range available in a portable device, enabling both shallow rebar detection and deep structural imaging from a single unit. The GS9000 multichannel array adds real-time 3D subsurface visualization, making it possible to trace rebar layout, measure cover depth, and identify moisture infiltration pathways that accelerate corrosion after quake-induced cracking.

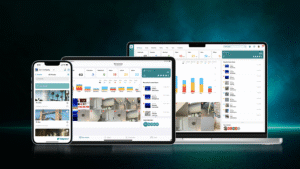

Screening Eagle INSPECT for Documentation
INSPECT integrates data from all Proceq sensors into one inspection workflow. Findings are tagged onto floor plans in real time using a bodycam. AI-assisted analysis flags anomalies for engineer review, and automated cloud reporting eliminates re-entry of field data. In disaster response, speed of documentation is operationally as important as the inspection itself.
The Stronger Case: Inspect Before the Earthquake
Post-event assessment is reactive by definition. The highest value of these technologies is baseline documentation established before any seismic event occurs. Structures mapped with GPR and ultrasonic tools in advance give engineers a pre-event dataset that makes post-event comparison precise: deterioration that predated the quake is distinguished from seismic damage, and structural decisions are grounded in evidence rather than assumption. Proactive inspection programs are not a premium. In an earthquake-prone country, they are a minimum standard of care.
Cifra Marketing Corporation is the Philippines’ authorized distributor of Screening Eagle Technologies and Proceq products, bringing the full instrument lineup, consumables, calibration accessories, and end-to-end technical support to Filipino engineers and asset owners nationwide. From a single instrument to a complete enterprise inspection program, Cifra supplies the technology and the expertise to deploy it effectively.
Contact us today.
