Proceq Torrent

Concrete Air Permeability Tester

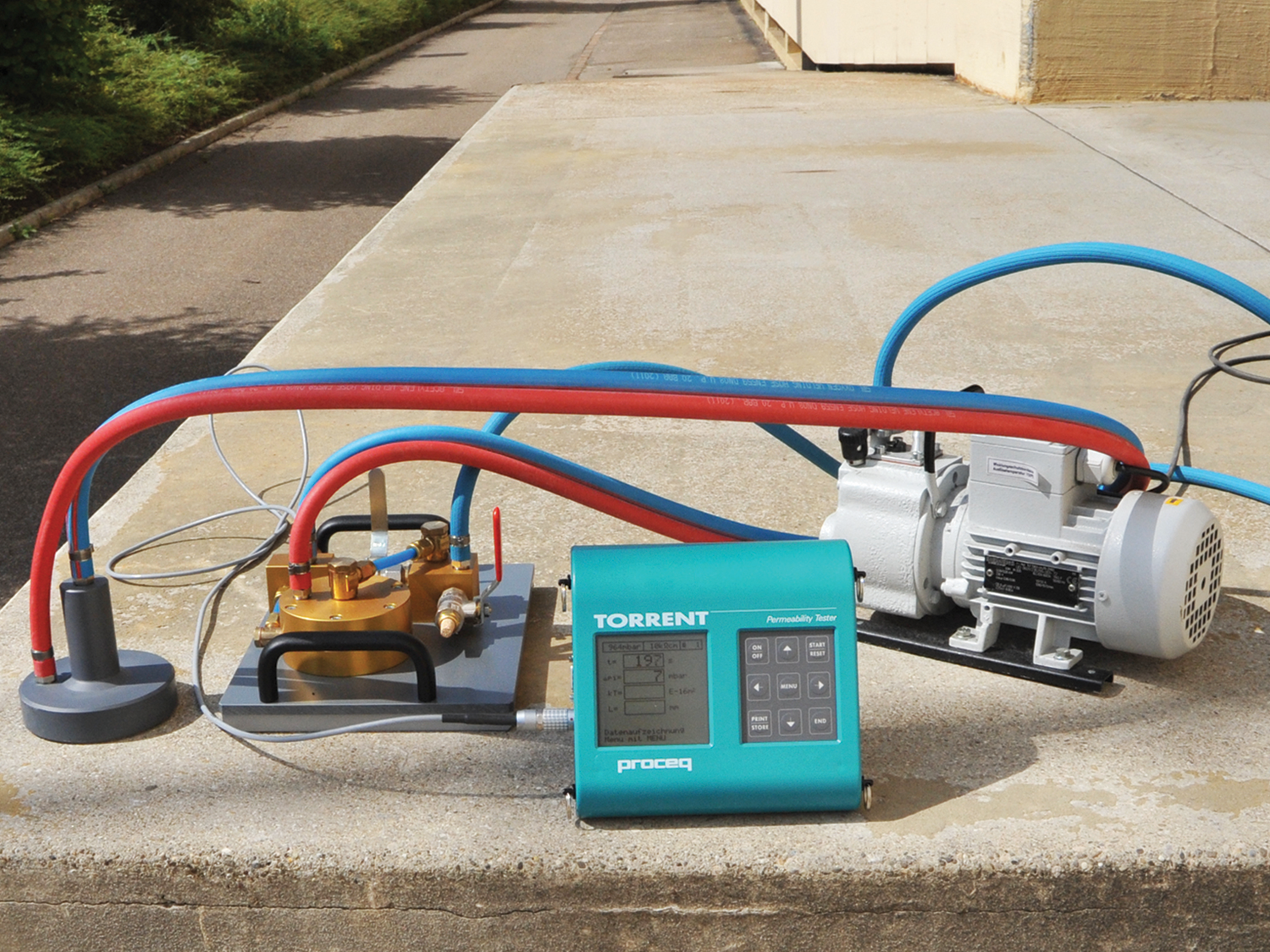

The Proceq Torrent is a portable, non‑destructive instrument designed to rapidly assess the air permeability of concrete cover. Utilizing a unique two‑chamber vacuum cell setup and pressure regulation system, it measures the permeability coefficient (kT) to evaluate concrete durability and resistance, all within 2 to 12 minutes of on-site testing.

Features

Two‑chamber vacuum cell principle for perpendicular airflow penetration
Integrated pressure regulator and automatic kT computation
Intuitive menu system with graphic LCD display (128 × 128)
On-device calculation of permeability class via kT and optional resistivity correction
Transfers data via RS‑232 or optional USB adapter
Stores up to 200 measured values onboard
Lightweight handheld unit; vacuum pump ordered separately
Battery powered with six AA (LR6) cells (~60 h runtime)

Applications

Concrete durability and permeability assessment
Evaluation of concrete cover quality
Assessment of fire‑damaged structures
Effectiveness testing of protective coatings
Non‑destructive site testing for construction QA/QC

Technical Data

Parameter	Specification
Measured Quantity	Air‑permeability coefficient kT
Display	128 × 128 graphic LCD
Memory Capacity	200 measured values
Interface	RS‑232 / optional RS‑232-to‑USB
Power Supply	6 × AA (LR6) batteries (~60 h)
Temperature Range	−10 °C to +60 °C
Weight (Display Unit)	~2.1 kg (incl. carrying case)
Carrying Case Dimensions	325 × 295 × 105 mm
Vacuum Control Unit	Membrane regulator + pressure sensor
Vacuum Pump (optional)	Suction ~1.5 m³/h; final pressure ~10 mbar
Standards	SIA 262‑1 (Swiss concrete permeability standard)
