1075 SCARPRO

24/7 SCAR Productivity

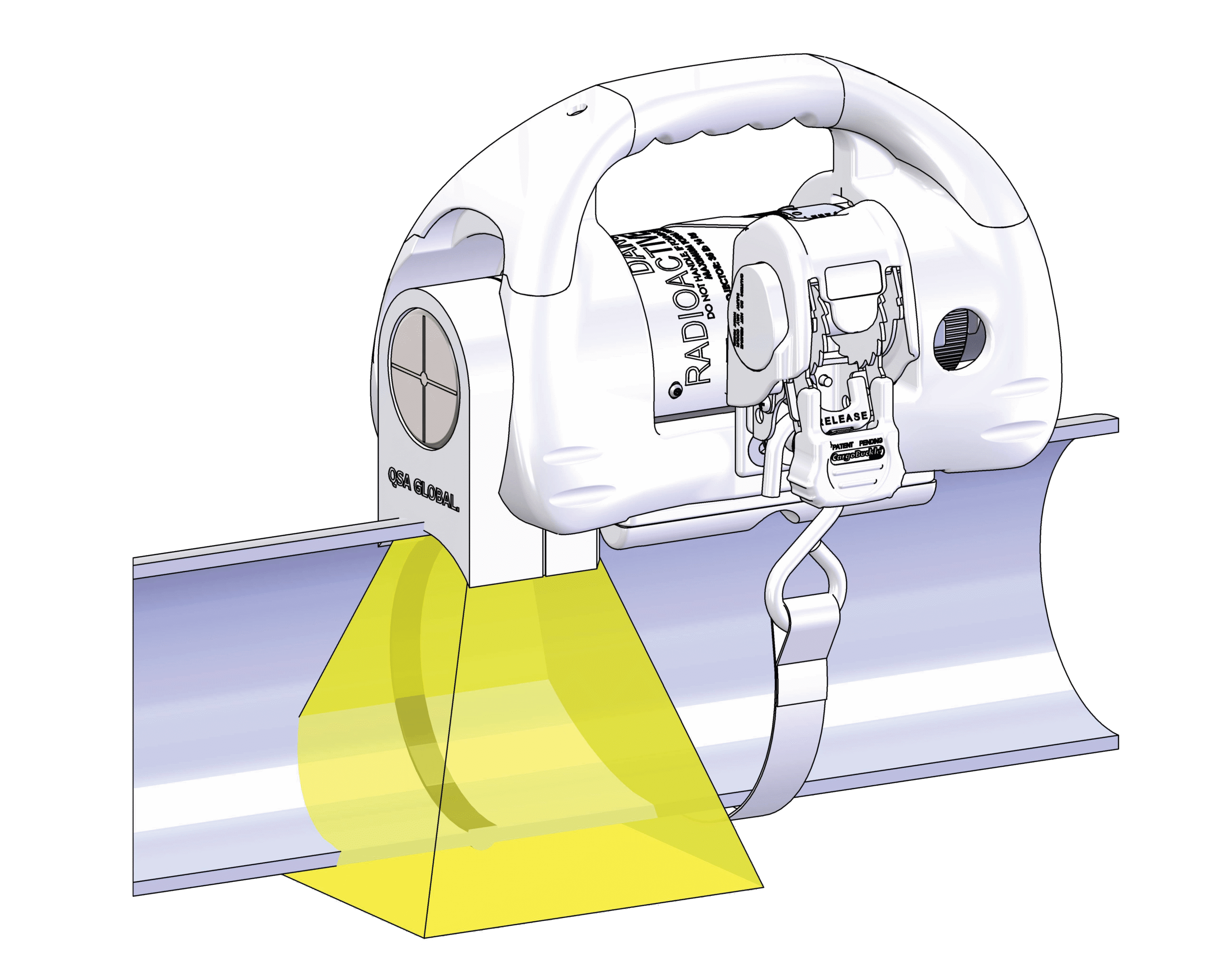

Sentinel 1075 is a lightweight gamma radiography camera engineered for efficient non-destructive testing using sealed radioactive sources. Designed for field use, it combines portability with rugged stainless-steel construction and internal shielding to ensure operator safety and long-term reliability. Its compact form factor and compatibility with multiple isotopes make it ideal for weld inspection, pipeline evaluation, and other critical industrial radiography tasks in challenging environments.

Inquire Now
Download Brochure
Features
  • Compact and lightweight design
  • Durable stainless steel body
  • Internal depleted uranium shielding
  • Supports Ir-192 and Se-75 isotopes
  • Manual crank operation
  • Locking source channel for transport safety
  • Easy source loading and retrieval
  • Certified for safe transport and use
Applications
  • Pipeline inspection
  • Pressure vessel testing
  • Power plant maintenance
  • Petrochemical industry
  • Offshore platforms
  • Structural weld inspection
  • Shipbuilding
Technical Data
Parameter Value
Radiation Source Ir-192, Se-75
Maximum Source Capacity Up to 50 Ci (Ir-192)
Camera Weight Approx. 10 kg
Shielding Material Depleted uranium
Body Material Stainless steel
Operation Method Manual crank system
Operating Temperature -20°C to +50°C
Source Channel Lock Integrated safety mechanism
Transport Certification Type A container
Safety Compliance ISO/IEC and ANSI standards
  • Tags: field inspection, gamma radiography, industrial radiography, Ir-192 camera, lightweight gamma camera, NDT, non-destructive testing, pipeline radiography, portable x-ray, pressure vessel testing, Se-75 radiography, weld testing

Tags:

gamma radiography, portable x-ray, NDT, Ir-192 camera, Se-75 radiography, field inspection, weld testing, non-destructive testing, pipeline radiography, industrial radiography, pressure vessel testing, lightweight gamma camera

Gamma Ray System, Metals Testing, Radiographic Testing
