Ceramic Pad Heating Elements

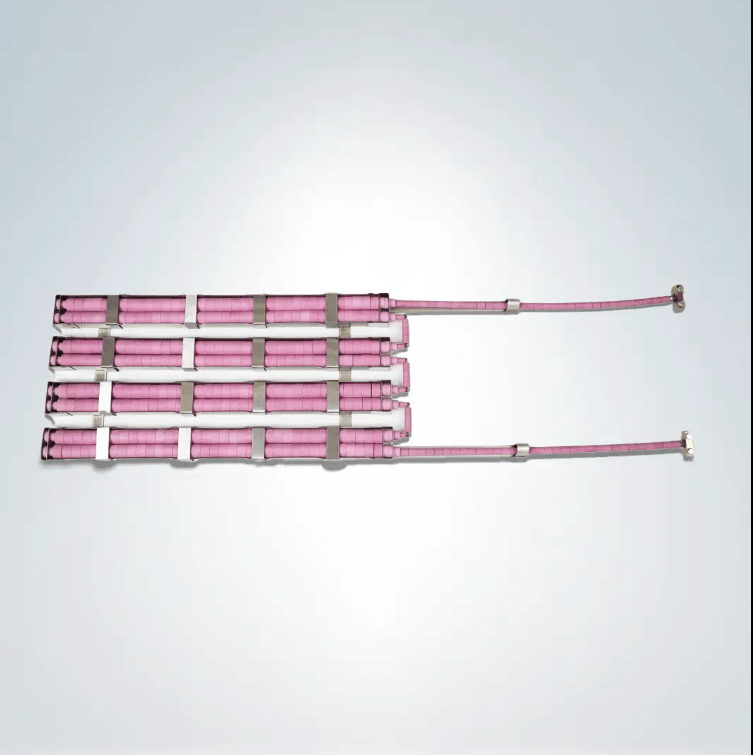

Cooperheat’s Flexible Ceramic Pad (FCP) heating elements are rugged, nickel-chrome, pad-style resistive heaters built for precision pre- and post-weld heat treatment (PWHT) up to 800 °C. Utilizing high-grade sintered alumina ceramic beads and nickel cold tails butt-welded to the heating core wire, they deliver reliable flexibility, exceptional thermal transfer, and long-lasting performance—even under repeated high-temperature cycles.

Features

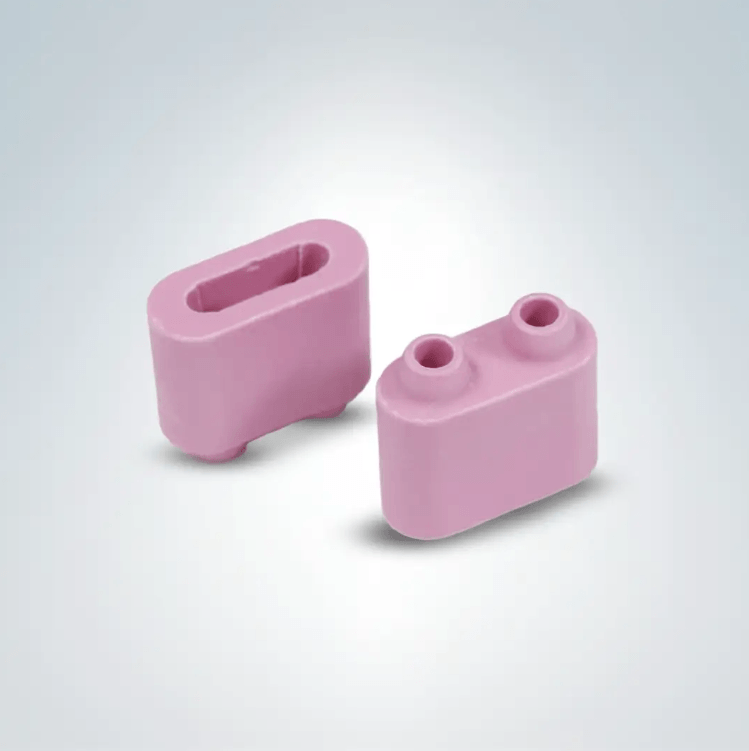

High-grade sintered alumina beads with nickel-chrome core wire for thermal durability
Flexible pad design for easy adaptation to various pipe sizes and shapes
Precise temperature control capability up to 800 °C

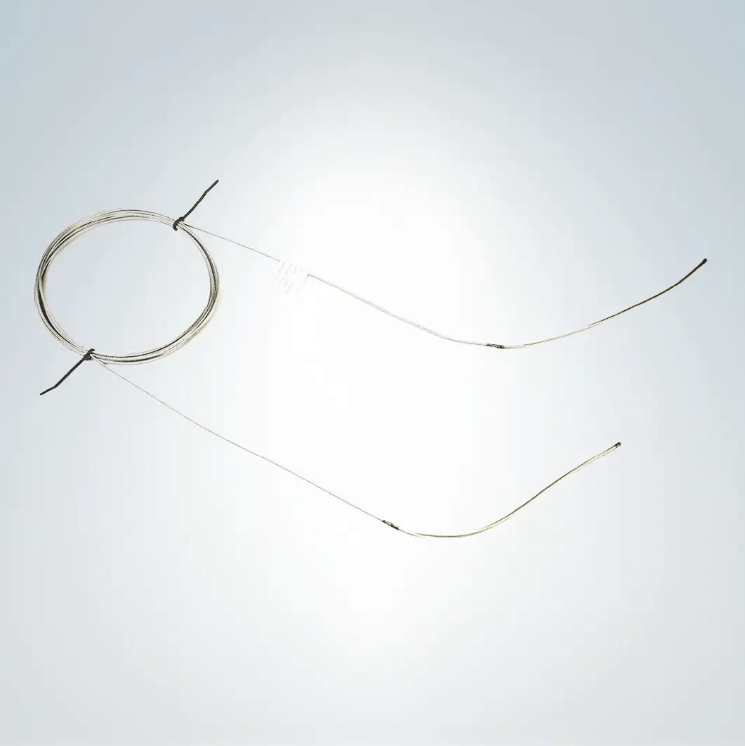

Butt-welded cold tails for improved reliability and reduced failure points
Multiple voltage and power options (e.g., 2.7 kW, 3.6 kW; 60 V or 80 V)
Range of pad sizes from compact to large formats
Custom sizing available for specific applications
High mechanical and thermal resilience for repeated use
Repairable through bead and connector replacement
Proven reliability in industrial welding heat processes

Applications

Preheat and post-weld heat treatment for pipes and pressure vessels
Fabrication heating of weld seams on pipes, tanks, and vessels
On-site or workshop-based welding heat applications
Heating for varied pipe diameters and configurations
Maintenance and repair in petrochemical, refinery, and offshore industries

Technical Data

Element Type	Voltage (V)	Power (kW)	Size (mm)
CP3 / CP3H	60 / 80	2.7	76 × 660
CP8 / CP8H	60 / 80	2.7	205 × 250 / 205 × 360
CP33H	80	3.6	840 × 85
CP48	60 / 80	2.7 / 3.6	1220 × 45

Construction: Sintered alumina ceramic beads, nickel-chrome core wire, nickel cold tails (butt-welded)

Max Temperature: Up to 800 °C (up to 1,050 °C for special grades)

Durability: Withstands repeated thermal cycling

Repairability: Beads and connectors replaceable
