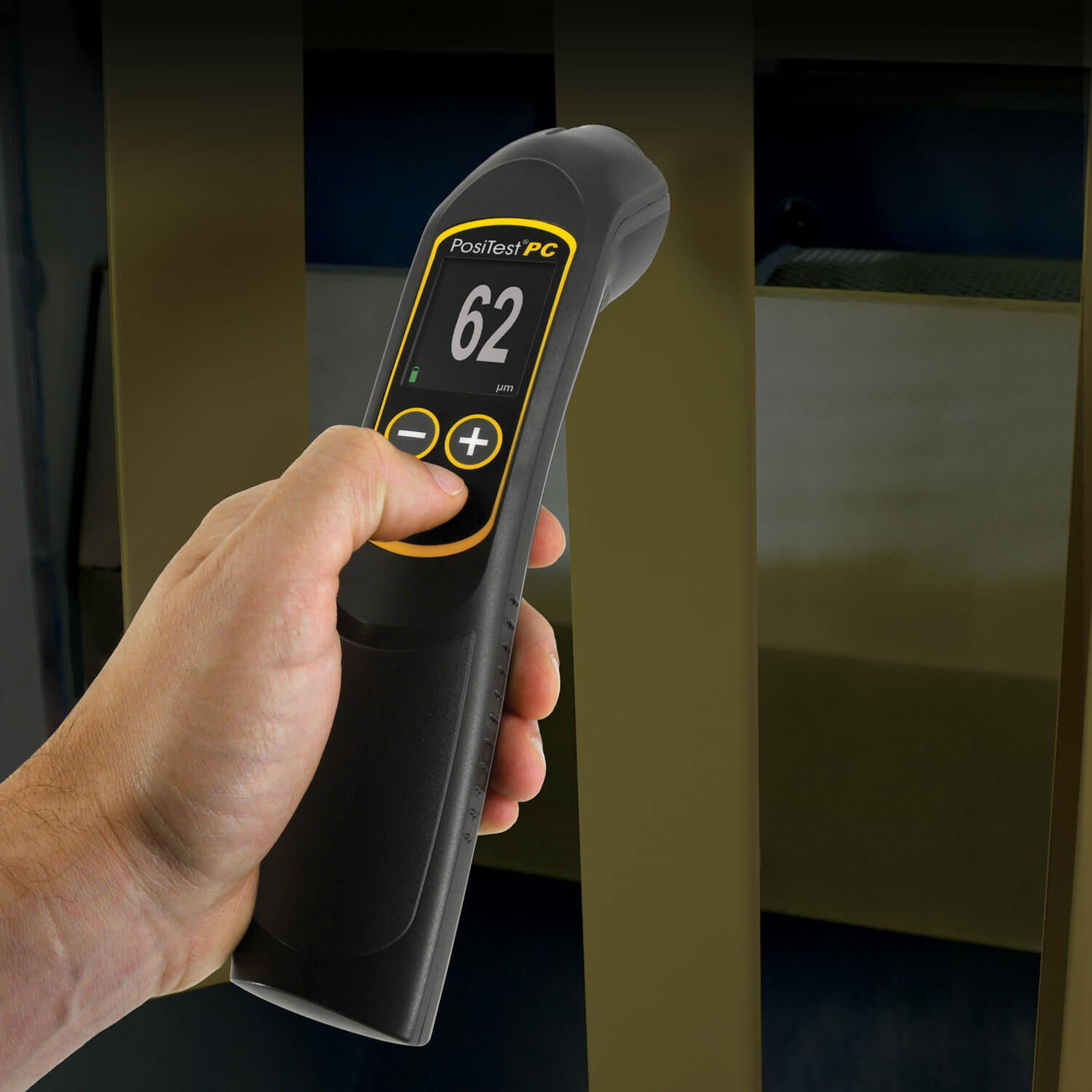

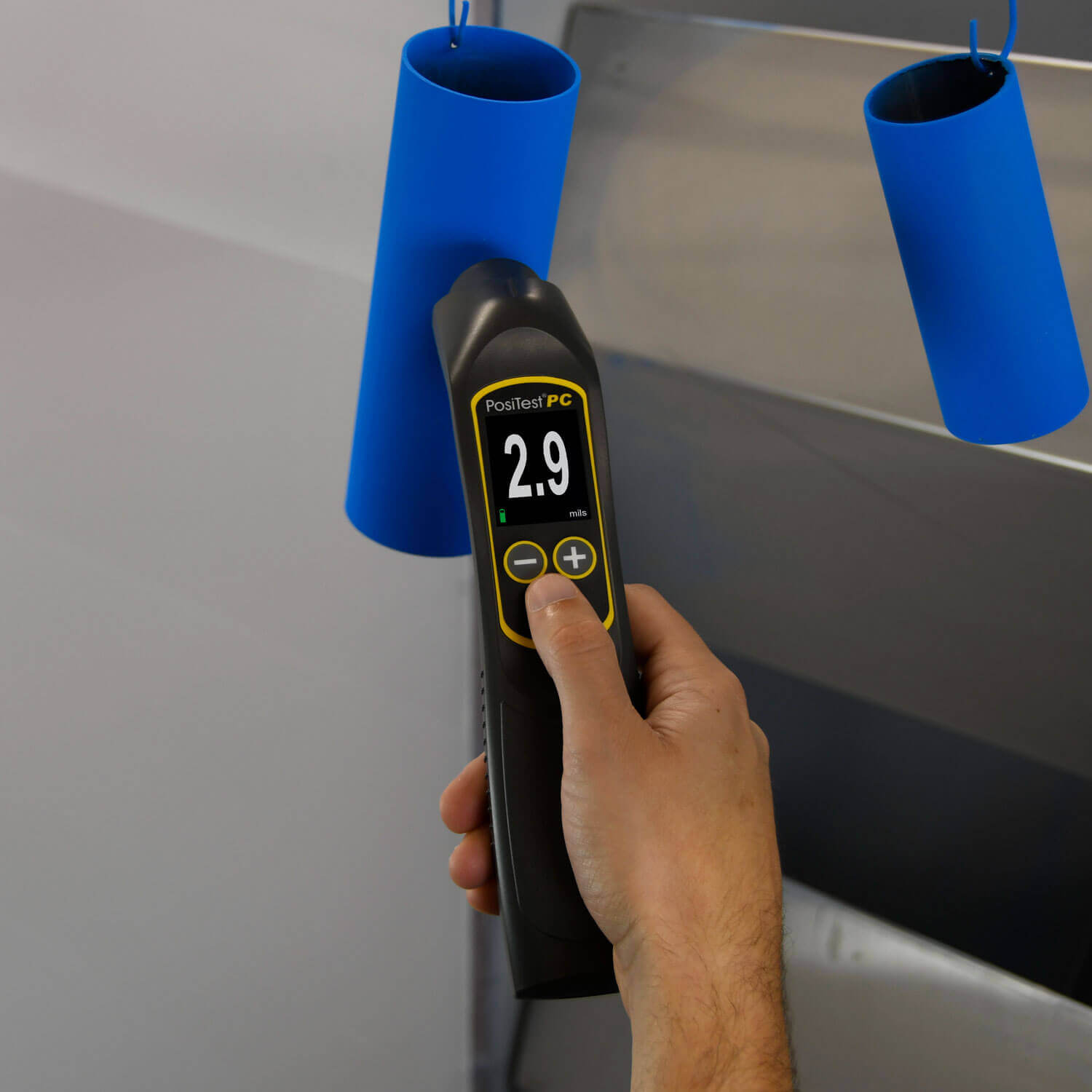

PosiTest PC

Non-contact Uncured Powder Thickness Gage

Affordably measures uncured powder coatings using non-contact ultrasonic technology to predict a cured thickness.

Features

Dedicated stand-alone unit is ready to measure right out of the box
Up to 4x faster measurement speed*—ideal for moving lines and swinging parts
No calibration adjustment required for most powders
Storage of 999 readings with onscreen averaging. Stored readings can be downloaded to PosiSoft Desktop Software
Scan Mode continuously takes measurements—ideal for analyzing large areas

Applications

Automotive manufacturing and refinishing
Aerospace coating inspection
Pipeline and infrastructure maintenance
Marine vessel and offshore platform inspections
General industrial quality control
Power generation equipment monitoring

Technical Data

Specification	Details
Measurement Range	20 – 100 μm (0.8 – 4.0 mils)
Resolution	1 μm (0.1 mil)
Accuracy	±5 μm (±0.2 mil)
Measurement Time	1 – 3 seconds
Measurement Distance	19 mm (0.75 inch)
Measurement Area	2 mm (0.8 inch)
Size	241 x 64 x 51 mm (9.5″ x 2.5″ x 2.0″)
Weight	180 g (6.4 oz.) without batteries
Operating Temperature	0°C to 50°C
Power Source	4 AAA batteries (alkaline or rechargeable)
Display	High-contrast color LCD
USB Connectivity	Yes, for data transfer and power
Software Compatibility	PosiSoft Desktop
