Probot

High-performance Probe Pusher System

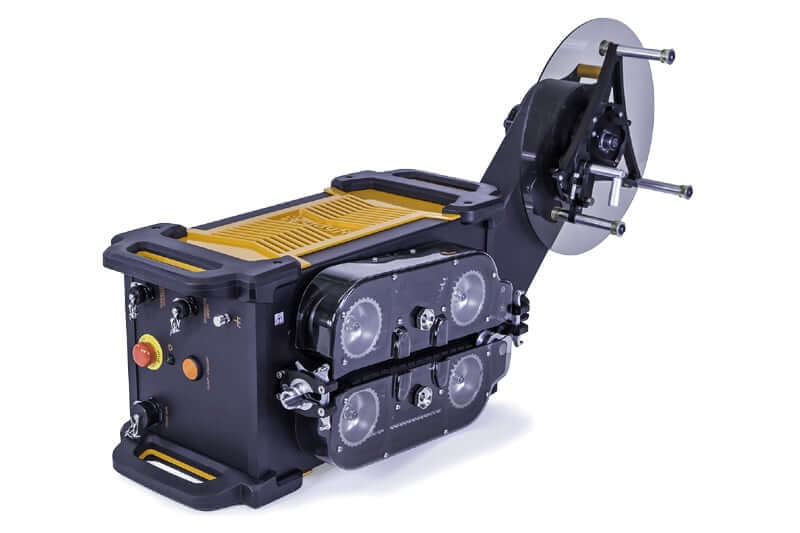

The Probot is a powerful, compact, and lightweight electric probe pusher system engineered to automate probe motion during heat exchanger and Balance of Plant (BoP) tubing inspections. Operating entirely without compressed air, it features an electric belt tensioner and an IP65-sealed, fully integrated drive unit that houses both its controls and power supply. Probot natively pairs with the Ectane 3 test instrument and Magnifi® software to support both manual and fully automated inspection workflows.

Features

One-Person Operation: Engineered to dramatically increase inspection throughput, allowing a single operator to safely manage probe feeding, scanning, and data acquisition.
Fully Integrated Control System: Features a self-contained architecture with internal power supplies and controls, eliminating heavy external control boxes or tethered modules.
Compressed-Air Free: Utilizes an advanced electric belt tensioning system, completely removing the dependency on field air compressors or pneumatic lines.
Magnifi® Integration: Integrates with Eddyfi’s Magnifi software platform to deliver seamless automated and manual drive modes, optimized speed profiles, and precise probe tracking.
High-Force Electric Drive: Delivers a peak pushing force of 445 N (100 lbf) and continuous force of 245 N (55 lbf) to easily feed probes through complex or long tube bundles.
Ruggedized IP65 Chassis: Housed in a compact, industrial enclosure designed for water and dust resistance in harsh industrial settings.

Applications

Balance of Plant (BoP) inspections
Heat exchanger tubing inspections
Condenser tube testing
Steam generator tubing assessments
Automated probe motion deployment for high-speed tubing inspection campaigns

Technical Data

Parameter / Feature	Technical Specification Details
Drive Weight	23.6 kg (52 lb) with belts and covers; 22.3 kg (49 lb) bare
Take-Up Reel Weight	6.4 kg (14 lb)
Dimensions (W × H × D)	Drive only: 307 × 277 × 554 mm (12.1 × 10.9 × 21.8 in) With Take-up Reel: 361 × 521 × 940 mm (14.2 × 20.5 × 37.0 in)
Speed Range	Variable from 0 to 2.5 m/s (0–100 in/s) to match specific NDT methods
Supported Poly Sizes	9.53 mm (3/8 in), 7.94 mm (5/16 in), and 6.35 mm (1/4 in) with optional belt
Supported Probe Diameters	Accommodates probe diameters from 7 mm to 23 mm (0.276–0.906 in)
Spool Specifications	406.4 mm (16 in) outer diameter; capacity up to 33.5 m (110 ft) of 9.53 mm tubing
Encoder Resolution	High-precision tracking at 18.796 counts/mm (477.406 counts/in)
Power Requirements	110–120 V / 220–240 V AC, 50–60 Hz input
Slipring Interface	Available in 4-pin and 19-pin configurations
Environmental Limits	Designed for IP65; operating temperature range of 0–45ºC (32–113ºF)
