Sims Pro

Floormap® Data Analysis and Reporting Software

SIMS PRO™ is a dedicated tank bottom data analysis and reporting software framework designed for post-acquisition engineering evaluation of storage tank floors. It integrates with SIMS GO (the onboard acquisition engine of the FloormapX scanner) to translate raw inspection data into clear, auditable asset integrity models. Built to fulfill standard regulatory demands like API 653 and EEMUA 159, SIMS PRO processes high-resolution Magnetic Flux Leakage (MFL) and Surface Topology Air-gap Reluctance Sensors (STARS) datasets, allowing companies to formulate optimized repair strategies and confidently extend equipment inspection intervals.

Features

100% Raw Array Inspection Insights: Displays full-resolution MFL Array and STARS data profiles captured by the FloormapX, letting analysts track under-surface corrosion indicators as small as 10% wall loss.
Top/Bottom Corrosion Differentiation: Provides instant software filtering to display individual or combined layouts of top-side only, bottom-side only, or dual-side volumetric metal loss.

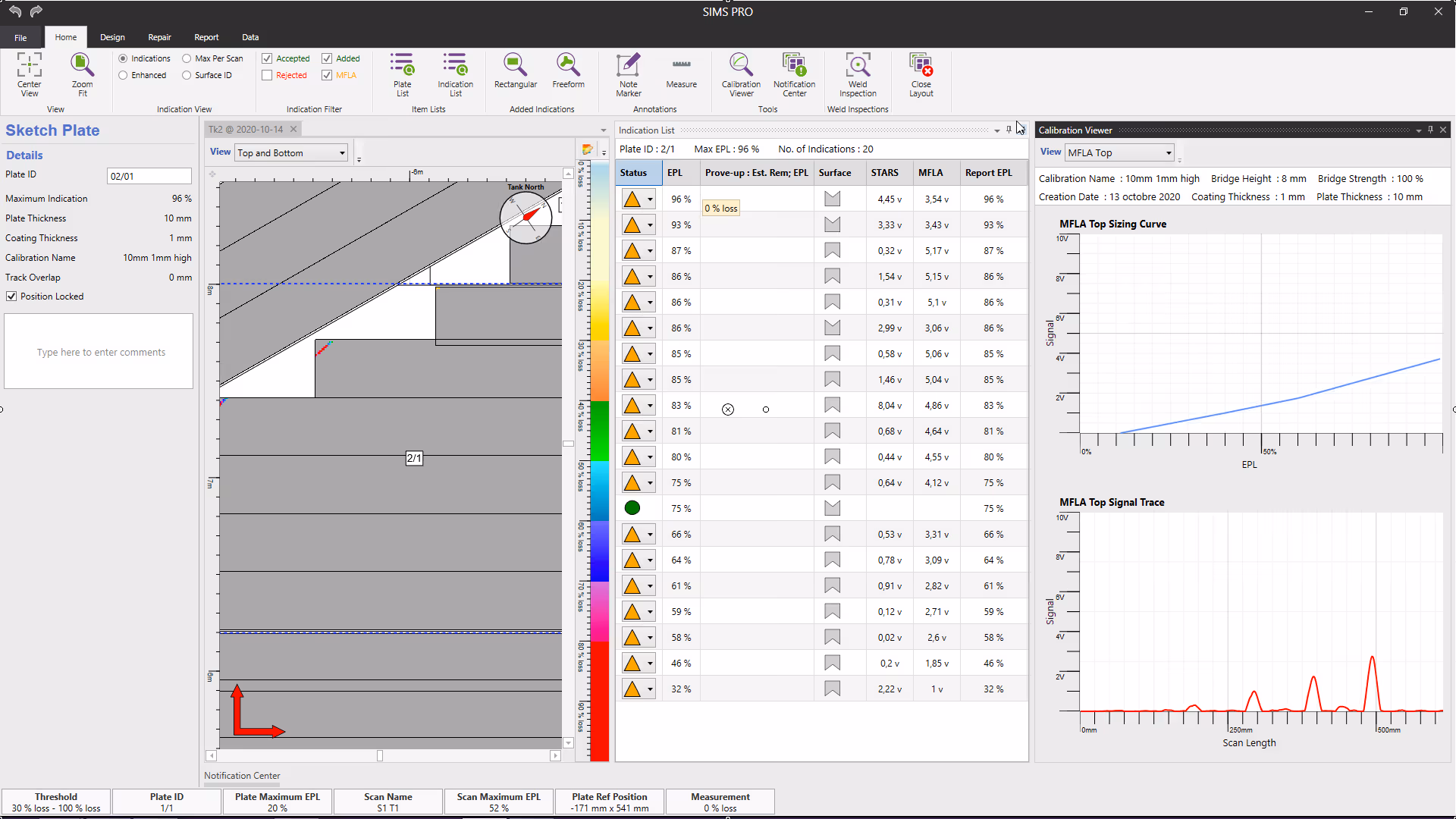

Fully Auditable Indication Manager: Features an interactive, editable indication database where technicians can log, reject, or update defect calls with complementary non-destructive evaluation (NDE) cross-checks without destroying the baseline raw inspection history.

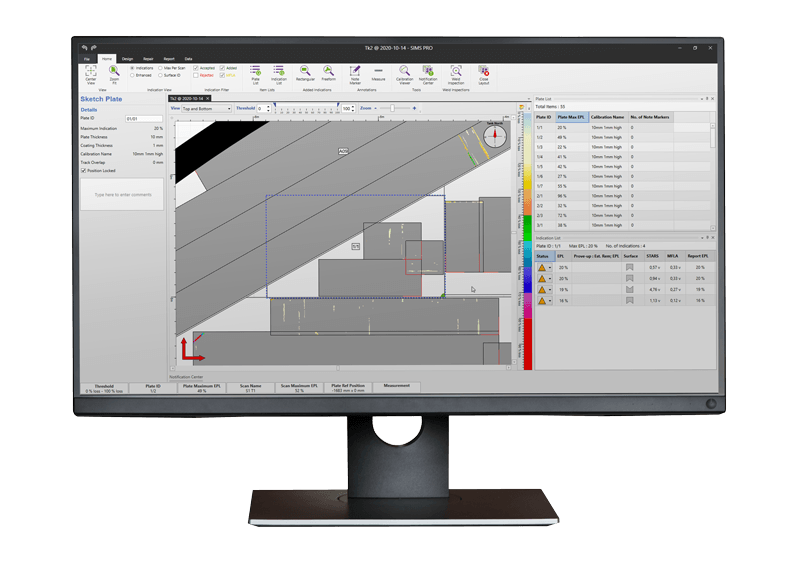

Integrated Tank & Patch Plate Builder: Features a complete drag-and-drop design utility to simulate structural floor obstacles (sumps, internal column supports, manways) and position patch repair plates natively without requiring external third-party CAD applications.
Automated Traceability Validation: Automatically imports sensor calibration traces directly from the field scan files into the main analysis layout, strengthening client transparency and data repeatability.
Paperless Report Engine: Generates customizable, localized reporting templates with integrated severity grids, visual defect breakdowns, and corporate logotypes. Reports can be natively exported to PDF, Microsoft Word, or Excel formats.

Applications

Comprehensive storage tank bottom engineering analysis and condition assessment
High-resolution corrosion severity mapping (top-side vs. bottom-side defect evaluation)
Compliance reporting in strict accordance with API 653 and EEMUA 159 guidelines
Baseline tank tracking down to early-stage 10% material loss anomalies
Rapid CAD-free tank floor layout modeling and structural replication
Repair plate drafting, positioning, and maintenance forecasting
Retrospective audit tracing of legacy tank datasets (backward compatible with Floormap3Di data)

Technical Data

Parameter / Operational Feature	Performance & Diagnostic Details
Primary Testing Principles	Post-processing for MFL Array & Magnetic Field Reluctance (STARS) data streams
Defect Severity Range Tracking	Captures, visualizes, and isolates material loss signatures down to 10%
Regulatory Compliance Targets	Fully satisfies global requirements for EEMUA 159 and API 653 inspection reports
Data Synchronization	Automated extraction of all hardware data from the SIMS GO acquisition tablet
Backward Data Compatibility	Direct file import and translation support for legacy Floormap3Di datasets
Export Report Formats	Native document compilation to PDF, DOCX (Word), and XLSX (Excel)
Visual Diagnostic Overlays	2D/3D color-coded severity maps, raw MFL/STARS C-scans, and calibration traces
Design Environments Included	Built-in Tank Layout Creator and Drag-and-Drop Repair Patch Designer (No CAD required)
