PosiPen

Magnetic Pull-Off Coating Thickness Gage

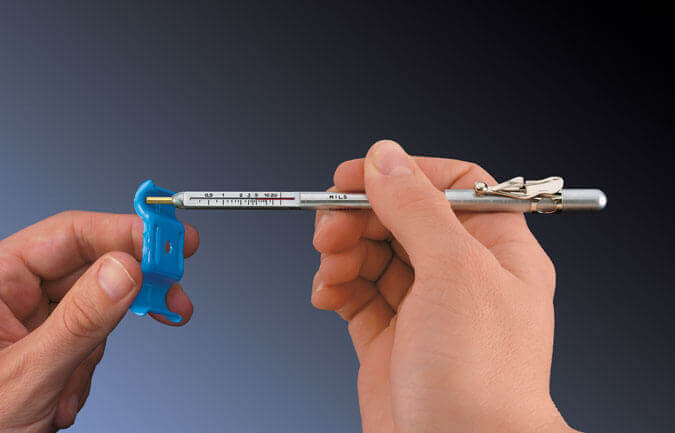

PosiPen has a very small, unique magnet which can be placed with pin-point accuracy on extremely small parts, and on peaks and valleys. Ideal for measuring non-magnetic coatings such as paint, enamel, plating, and hot-dip galvanizing on steel.

Features

Can be used on small, hot or hard-to-reach surfaces
Easy-to-Use
Lightweight—easy to carry, just like a ball point pen
Rugged—not affected by mechanical shock, acid, oil, water and dust
No user adjustment required
Highly wear resistant probe tip for long life and continuous accuracy
Certificate of Calibration showing traceability to PTB included (Long Form)

Applications

Refineries, petrochemical plants
Platers—electroplating, chrome, zinc, galvanizing
Powder coaters

Technical Data

Specification	Details
Range	0.25 – 20 mils (5 – 500 µm) (defelsko.com)
Tolerance	±(0.1 mil + 10% of reading) / ±(2.5 µm + 10% of reading)
Operating Temp	–150 °F to +450 °F (–100 °C to +230 °C)
Scales	Dual scales in mils and microns
Calibration	Factory‑calibrated; Long‑Form certificate (PTB/NIST traceable)
Power Source	No batteries or electronics – mechanical operation
Durability	Resistant to shock, acid, oil, water, dust
Gravity Compensation	Triple indicator supports horizontal, up/down positions
Compliance Standards	ASTM D7091/B499, ISO 2808, etc.
Included Accessories	Leather pouch, manual & calibration certificate
