PosiTector 200

Coating Thickness Gages for Non-Metal Substrates

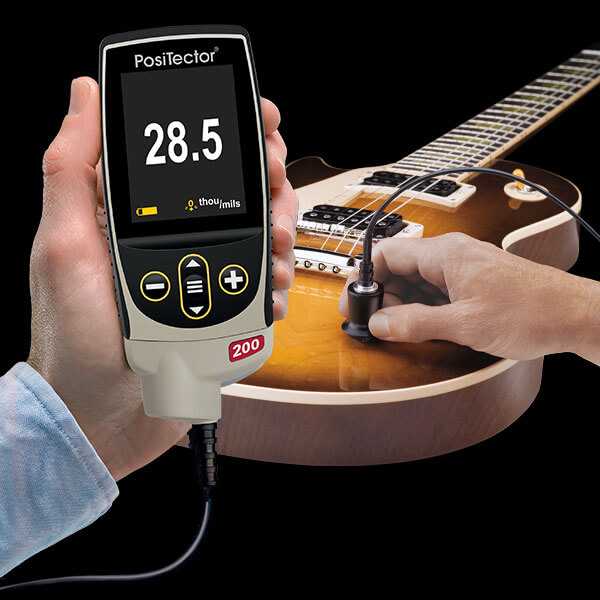

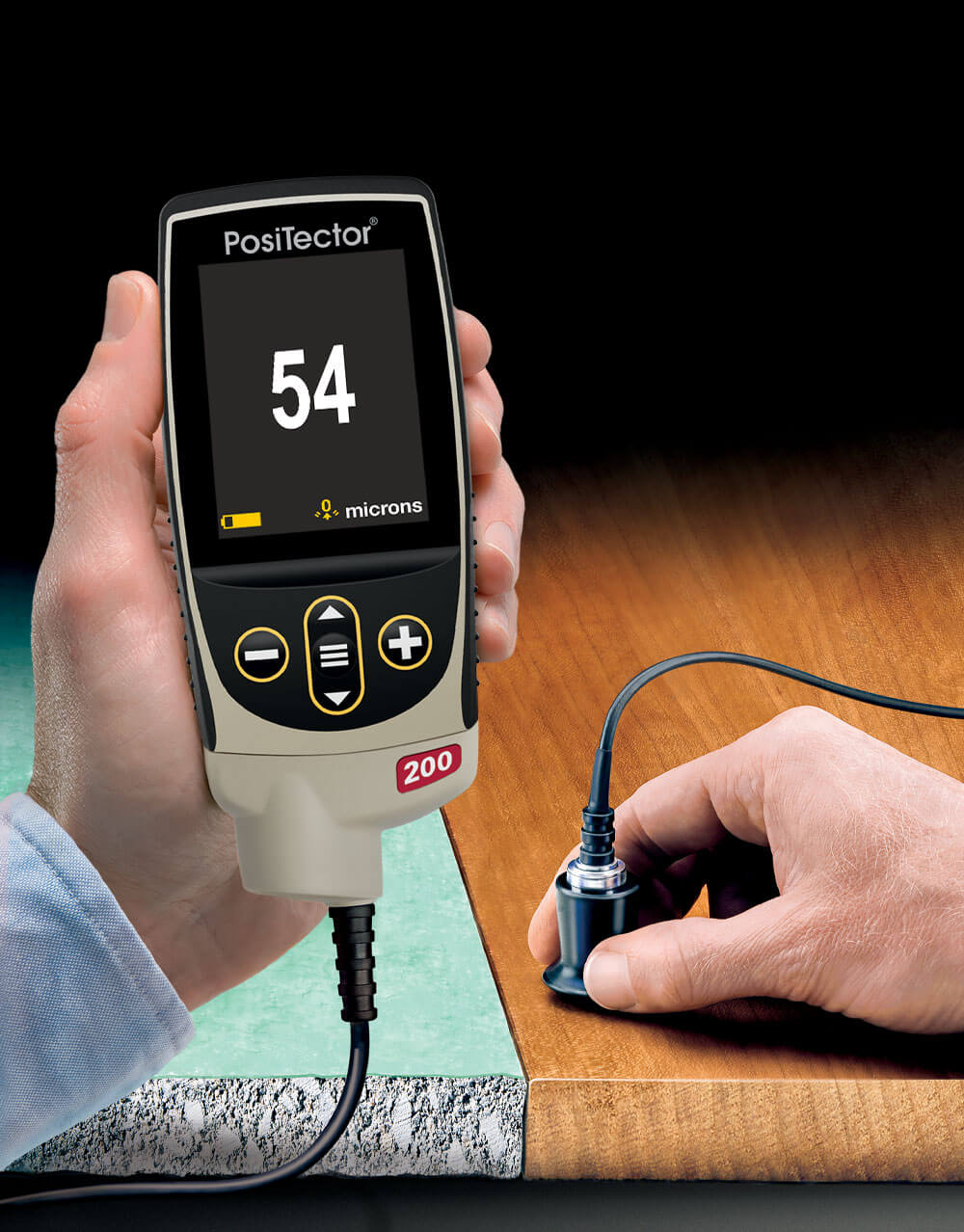

Non-destructively measures a wide variety of applications using proven ultrasound technology. Measure coating thickness over wood, concrete, plastic, and more. Advanced models measure up to 3 layers with graphics.

Features

Ready to measure—no calibration adjustment required for most applications
Large 2.8″ impact resistant color touchscreen with redesigned keypad for quick menu navigation
Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
Certificate of Calibration showing traceability to NIST or PTB included (Long Form

Applications

Manufacturing
Construction
Woodworks
Automotive

Technical Data

Probes	200B	200C	200D
Typical Applications	Polymer coatings on wood, plastic, etc.	Coatings on concrete, fiberglass, etc.	Thick, soft coatings such as polyurea, asphalitic neoprene, very thick polymers, etc.
Measurement Range	13 – 1,000 µm 0.5 – 40 mils	50 – 3,800 µm 2 –150 mils	50 – 7,600 µm 2 – 300 mils
Accuracy	± (2 µm ± 3% of reading) ± (0.1mils ± 3% of reading)		± (20 µm ± 3% of reading) ± (1 mil ± 3% of reading)
Minimum Layer Thickness	13 µm 0.5 mils	50 µm 2 mils	500 µm 20 mils
