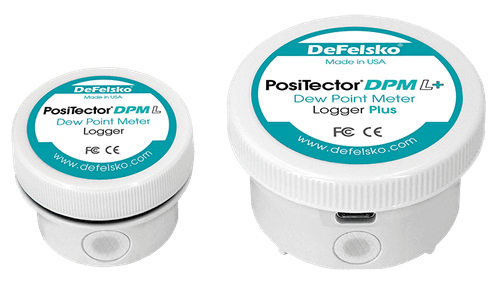

PosiTector DPM L

Dew Point Meter Loggers

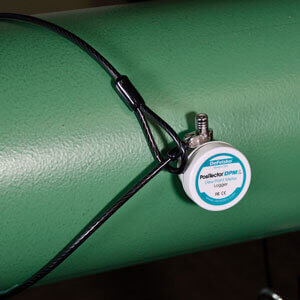

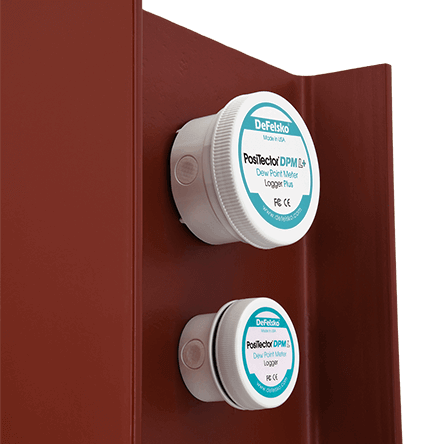

Magnetic probes attach to steel structures for monitoring climatic conditions.

  • Measures and records climatic conditions including: relative humidity, air temperature, surface temperature, dew point temperature, difference between surface and dew point temperatures, and wet bulb temperature.
  • Fast response, precision sensors provide accurate, repeatable readings
  • Environmentally sealed enclosure – weatherproof, dustproof, and shockproof—meets or exceeds IP65
  • Internal memory storage of 10,000 datasets (60,000 readings)

Conforms to ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7 and US Navy NSI 009-32

Inquire Now
Download Brochure
Features
  • Measures and Records 6 Key Environmental Parameters: Relative Humidity, Air Temperature, Surface Temperature, Dew Point Temperature, Wet Bulb Temperature, and Delta T (surface–dew point temperature difference).
  • High-Precision Sensors: Fast response, accurate, and repeatable measurements.
  • Long-Term Logging: Records data for up to 200 days (DPML) or 600 days (DPML+) with user-selectable intervals from 1 minute to 8 hours.

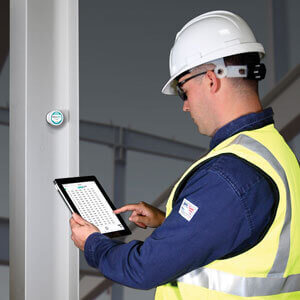

  • Wireless Connectivity: Bluetooth-enabled for real-time data viewing and configuration via the PosiTector App on Apple/Android devices.
  • Remote Monitoring (DPML+): WiFi capability for continuous data uploads to PosiSoft.net and email alerts when conditions exceed user-defined thresholds.
  • Robust Design: Environmentally sealed enclosure—weatherproof, dustproof, and shockproof—meets or exceeds IP65.
  • Large Memory Capacity: Stores up to 10,000 datasets (60,000 readings), each time-stamped for detailed analysis.
  • User-Friendly Interface: High-contrast, reversible, color LCD display with enhanced one-handed menu navigation.
Applications
  • Monitoring environmental conditions during coating applications.
  • Assessing surface preparation suitability for painting.
  • Ensuring compliance with industry standards and specifications.
  • Tracking climatic conditions during curing processes.
  • Remote monitoring of job site conditions.
  • Data logging for quality control and documentation purposes.
Technical Data
Parameter Range Accuracy Resolution
Surface Temperature -40° to 80°C (-40° to 176°F) ±0.5°C (±0.9°F) 0.1°C (0.1°F)
±1.5°C (±2.7°F) 0.1°C (0.1°F)
Air Temperature -40° to 80°C (-40° to 176°F) ±0.5°C (±0.9°F) 0.1°C (0.1°F)
±1.5°C (±2.7°F) 0.1°C (0.1°F)
Humidity 0 to 100% ±3% 0.1%
Dew Point -60° to 80°C (-76° to 176°F) ±0.3°C (±0.5°F)* 0.1°C (0.1°F)
Wet Bulb Temperature -10° to 60°C (14° to 140°F) ±3°C (±5.4°F) 0.1°C (0.1°F)
Delta T -60° to 60°C (-76° to 140°F) Dependent on RH 0.1°C (0.1°F)
  • Tags: air temperature, ASTM D3276, Bluetooth-enabled logger, coating applications, Delta T, Dew Point Meter Logger, dew point temperature, Environmental monitoring, IMO PSPC, IP65-rated logger, ISO 8502-4, NIST-traceable calibration, PosiSoft.net, PosiTector App, PosiTector DPML, Relative Humidity, remote monitoring, SSPC-PA7, surface preparation, surface temperature, wet bulb temperature, WiFi-enabled logger

Tags:

Coating Inspection Technologies, Environmental Monitoring
