PosiTector GLS

Gloss Meter

Portable gloss measurement for all surface finishes.

Conforms to ASTM C584/D523/D4039, ISO 2813/7668, DIN 67530, JIS Z 8741, AS/NZS 1580.602.2.

Features

Large 2.8″ impact resistant color touchscreen with redesigned keypad for quick menu navigation
Weatherproof, dustproof, and water-resistant gage body—IP65-rated enclosure

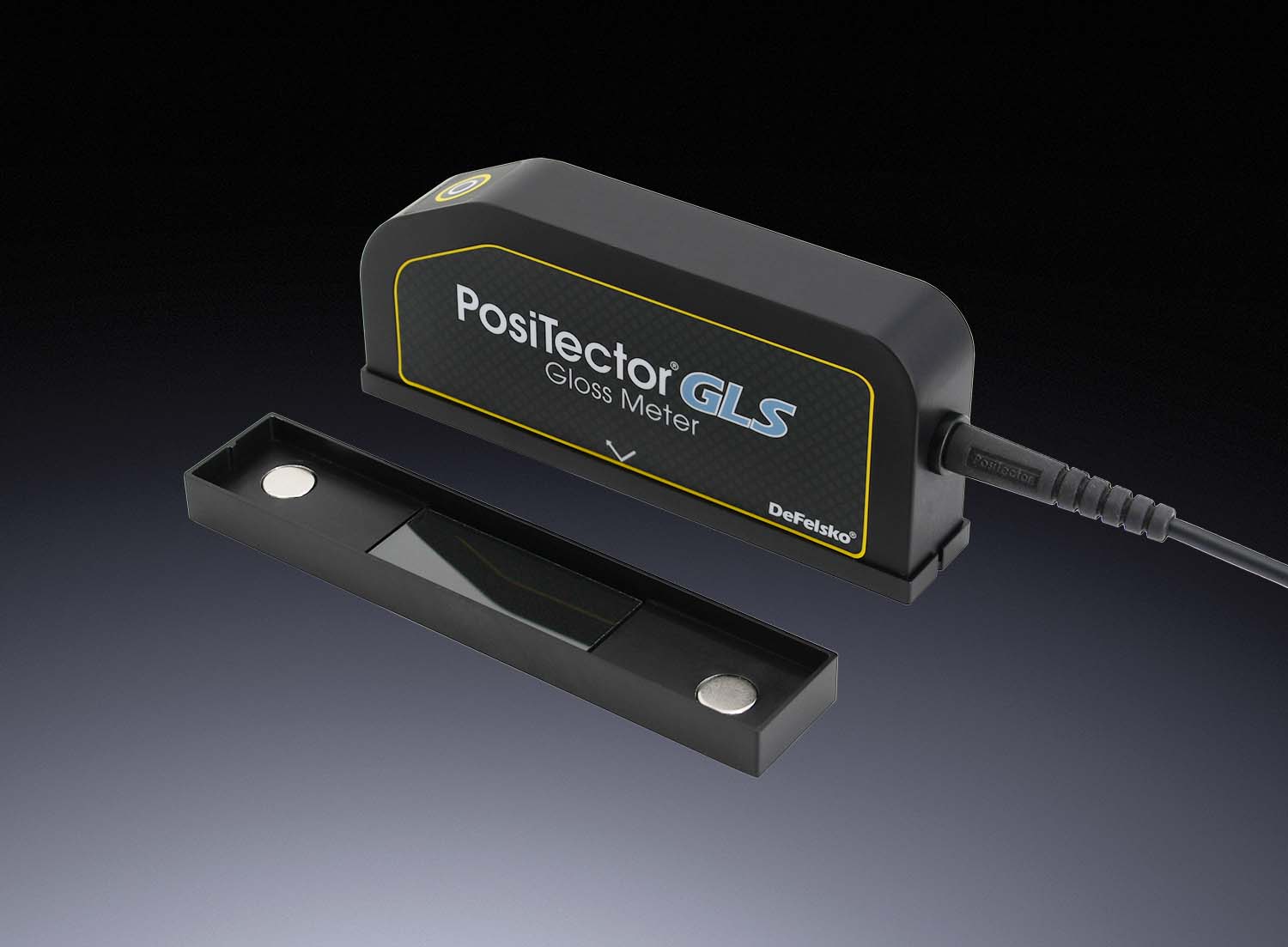

Automatic Diagnosis and Auto Calibration performed upon power-on using the protective base plate with integrated calibration standard (tile)
Fast measurement speeds of 60+ readings per minute
2 Powerful Scan Modes for quantifying large surfaces (Advanced models only)
USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
Certificate of Calibration showing traceability to NRC for both the probe and gloss standard included

Applications

Technical Data

		20°	60°	85°
Measurement Area		10 x 10 mm	10 x 20 mm	4 x 45 mm
Measurement Range		0 — 2,000 GU	0 — 1,000 GU	0 — 160 GU
Repeatability		±0.2 GU (≤100 GU), ±0.2% (>100 GU)
Reproducibility		±0.5 GU (≤100 GU), ±0.5% (>100 GU)
Resolution	Gloss	±0.1 GU (≤100 GU), ±1 GU (>100 GU)
	% Reflectance	0.1%
	Haze	±0.1 (≤100), ±1 (>100)
Operating Conditions		0° to 45° C (32° to 113° F) – non-condensing
Probe Size		165 x 73 x 32 mm (6.5″ x 2.875″ x 1.25″)
Probe Weight		555 g (19.6 oz.)

Gloss Range	60° value	Measure with
High Gloss	> 70 GU	20°
Semi Gloss	10 – 70 GU	60°
Low/Matte	< 10 GU	85°
