PosiTector IRT

Infrared Thermometer

Non-contact surface temperature measurement

Button-activated laser pointer for accurate targeting
Selectable emissivity values—choose from 7 preset material options, set a custom emissivity value, or adjust to a known temperature
Statistics Scan mode—continually displays/updates average, standard deviation, min/max surface temperature and number of readings while measuring one reading per second
Certificate of Calibration showing traceability to NIST included (Long Form)

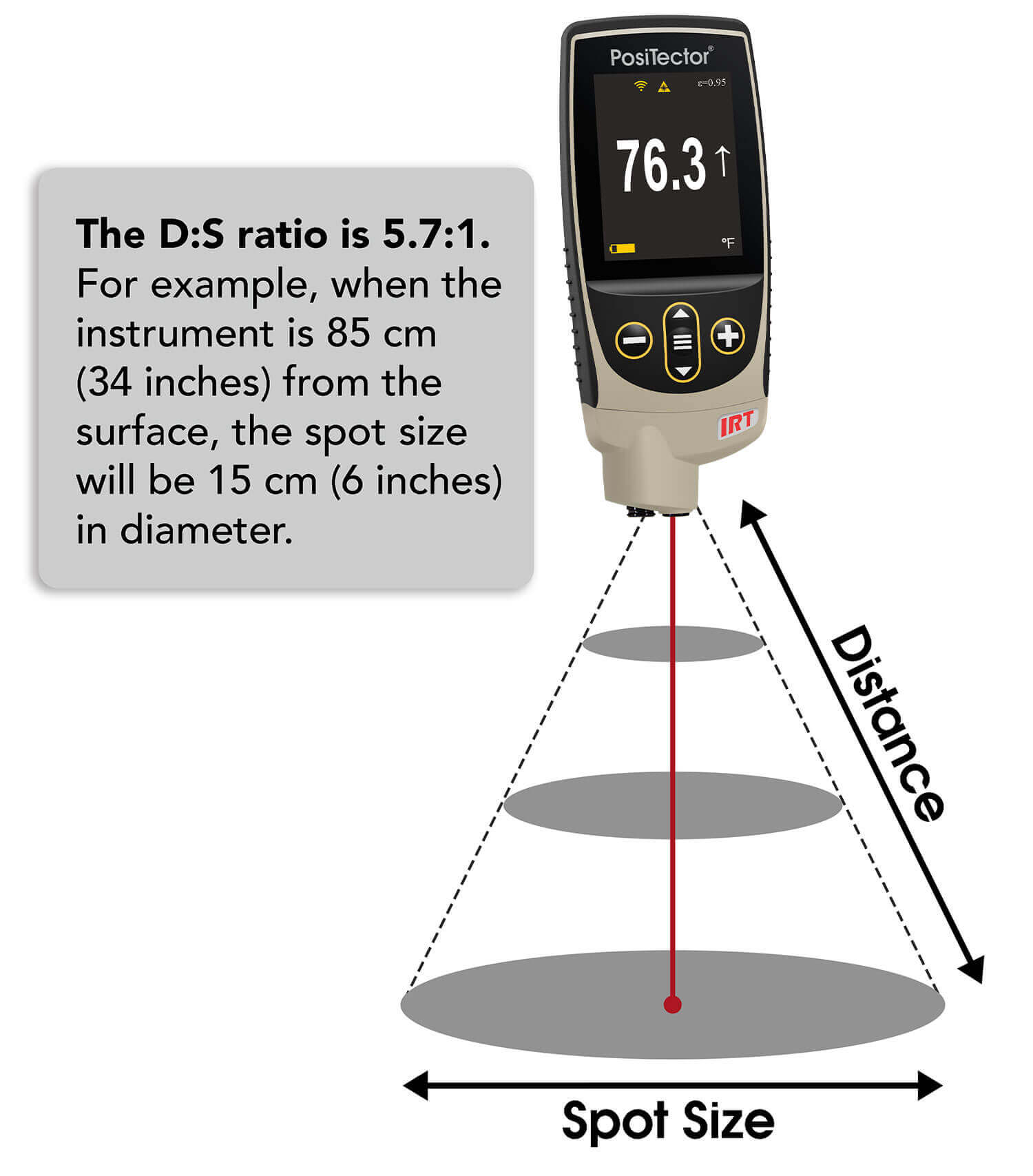

5.7:1 distance to spot ratio—ideal for measuring large areas

Smart Trend indicators identify rising, falling or stable readings

Features

Non-contact Surface Temperature Measurement: Ideal for measuring hard-to-reach or moving parts, and surfaces too hot for direct contact sensors.
Laser Pointer: Button-activated for precise targeting.
Selectable Emissivity: Choose from 7 preset material options, set a custom value, or adjust to a known temperature.
Statistics Scan Mode: Displays/updates average, standard deviation, min/max surface temperature, and number of readings while measuring one reading per second.
Certificate of Calibration: Includes traceability to NIST (Long Form).
5.7:1 Distance to Spot Ratio: Ideal for measuring large areas.
Smart Trend Indicators: Identify rising, falling, or stable readings.
Screen Capture: Save up to 100 screen images for record keeping and review.
HiLo Alarm: Audibly and visibly alerts when readings exceed user-specified limits.
Instant-on Feature: Quickly powers up the gauge if recently powered down.
Battery Life: Over 20 hours of continuous operation with 3 AAA batteries.

Applications

Measuring surface temperatures in hard-to-reach or moving parts.
Assessing temperatures of surfaces too hot for direct contact sensors.
Monitoring temperature variations in industrial processes.
Ensuring compliance with temperature-related standards and specifications.
Conducting preventive maintenance by identifying overheating components.
Verifying temperature consistency in manufacturing processes.
Documenting temperature readings for quality control and reporting purposes.

Technical Data

Parameter	Range	Accuracy	Resolution
Temperature	-70° to 380°C (-94° to 716°F)	±1°C + 1% (at 23°C ambient)	0.1°C (0.1°F)
Emissivity	Adjustable	–	–
Distance to Spot Ratio	5.7:1	–	–
Spectral Response	2 – 14 μm	–	–
Response Time	< 500 μs (95% response)	–	–
Laser Pointer	Class 2 < 1mW	–	–
Display	2.8″ Color LCD	–	–
Battery	3 AAA	–	–
Dimensions	137 x 61 x 31 mm	–	–
Weight	140 g (4.9 oz)	–	–
