PosiTector RTR 3D

Replica Tape Reader to Measure and Record 2D/3D Surface Profile Parameters

Digital spring micrometers measure and record surface profile parameters using Testex Press-O-Film™ replica tape.

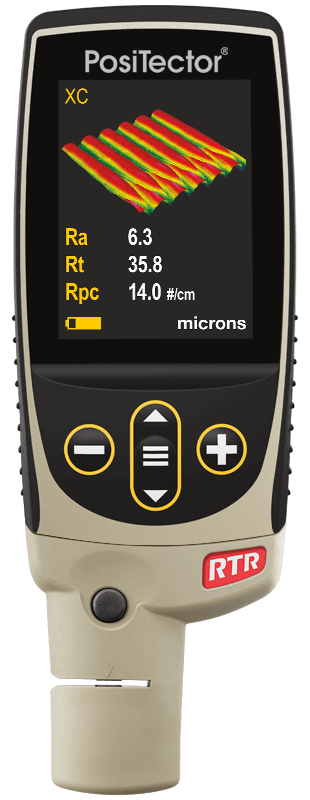

Large 2.8″ impact resistant color touchscreen with redesigned keypad for quick menu navigation

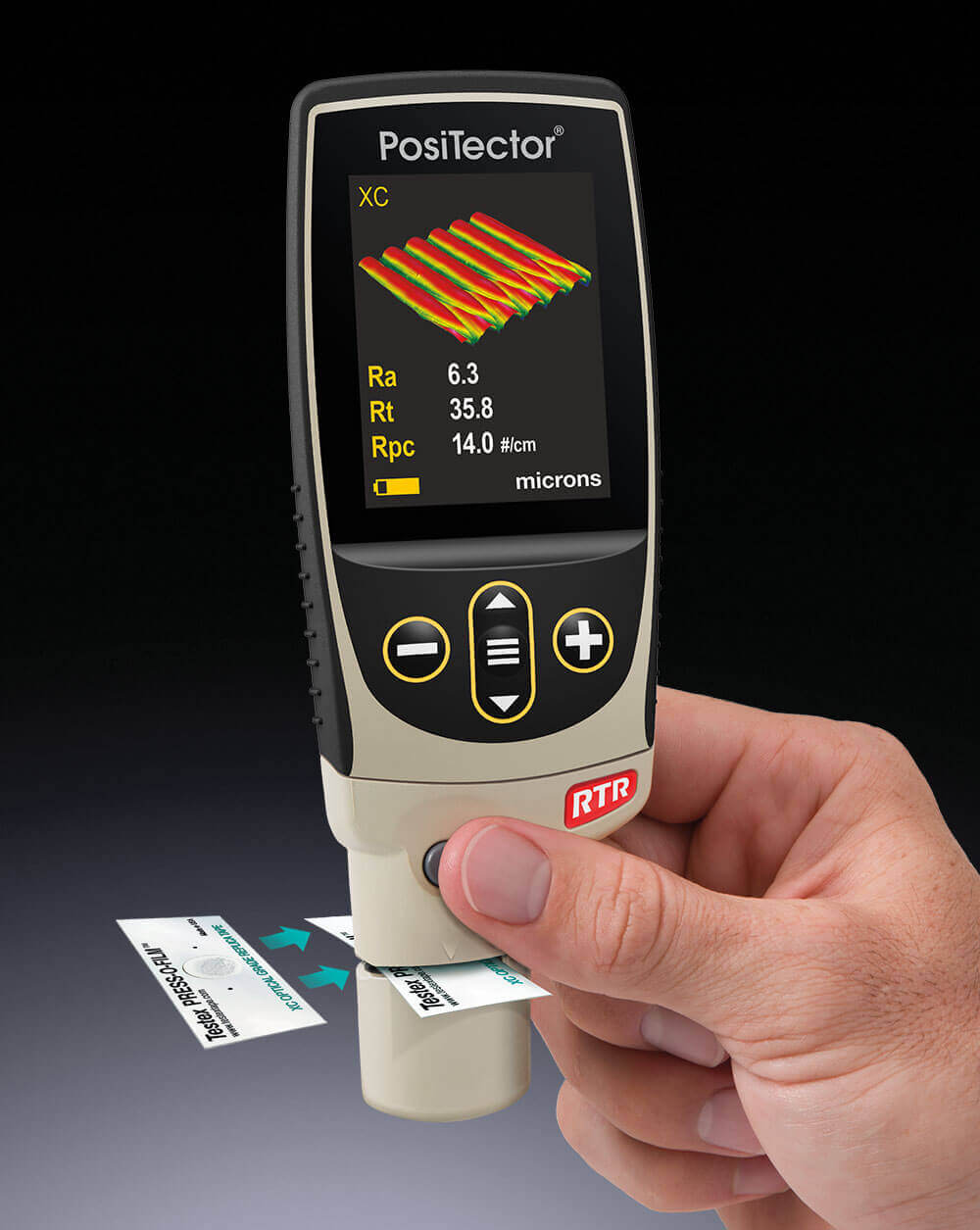

Create a replica by burnishing tape on a surface and insert into instrument. 3D imagery and 2D/3D parameters are displayed in seconds!
Reports common parameters: Ra, Rq, Rz, Rp, Rv, Rt, Rpc (2D), and Sa, Sq, Sz, Sp, Sv, and Spd (3D)
Ideal for field or laboratory use; flat, curved, or irregular surfaces
Download 3D .SDF image files for analysis in included PosiSoft or third party software
Certificate of Calibration showing traceability to PTB (for H and HL only) and NPL (for Ra and Rt) included (Long Form)

Conforms to ASME B46, ASTM D4417, ISO 8503-5, NACE SP287, SSPC-PA 17, SSPC-SP5, SP6, SP10, SP11-87T, and others

Features

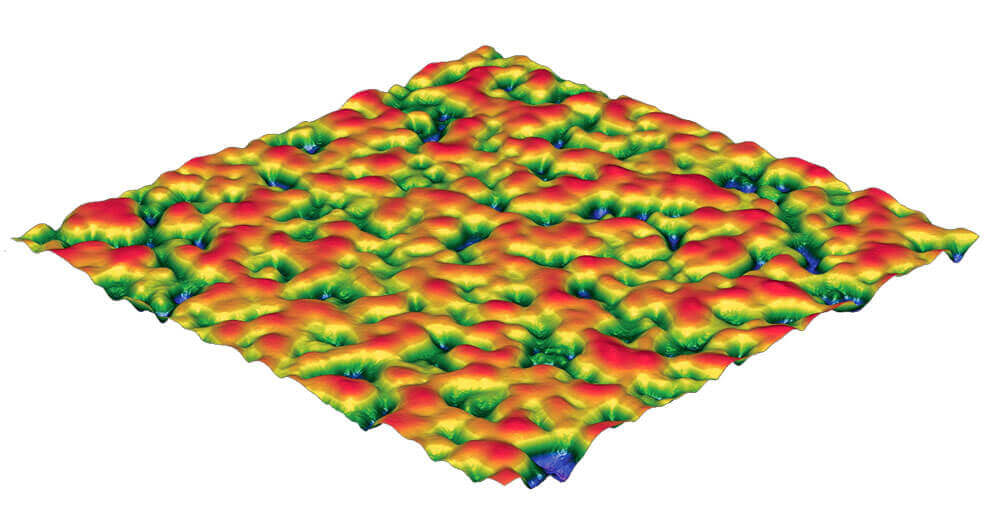

High-Resolution 3D Imaging: Captures detailed 3D surface profiles using Testex Press-O-Film™ replica tape.
Comprehensive Parameter Reporting: Measures 2D parameters (Ra, Rz, Rq, Rp, Rv, Rt, Rpc) and 3D parameters (Sa, Sq, Sz, Sp, Sv, Spd).
Large Touchscreen Interface: Features a 2.8″ impact-resistant color touchscreen with a redesigned keypad for quick menu navigation.
Durable and Weatherproof: IP65-rated enclosure ensures resistance to dust, water, and harsh environments.
Versatile Applications: Ideal for use on flat, curved, or irregular surfaces in both field and laboratory settings.
Advanced Data Management: Stores up to 250,000 readings in 1,000 batches (Advanced model), with date and time stamping for each measurement.
Connectivity Options: Includes USB, Bluetooth 4.0, and WiFi for data transfer and synchronization.
Comprehensive Software Suite: Comes with PosiSoft software for viewing, analyzing, and reporting data, compatible with PC and Mac.
Calibration and Certification: Includes a Certificate of Calibration traceable to accredited national laboratories.

Applications

Technical Data

Specification	Details
Measuring Range (H)	20 – 115 μm (0.8 – 4.5 mils)
Measuring Range (Rt)	10 – 115 μm (0.4 – 4.5 mils)
Minimum Roughness (Ra)	2 μm (0.08 mils)
Accuracy (H)	± 5 μm (± 0.2 mils)
Accuracy (Rt)	± (7.5 μm + 5% of reading)
Accuracy (Ra)	± (0.25 μm + 5% of reading)
Anvil Pressure	1.1 Newtons (110 grams-force)
Anvil Size	Ø6.35 mm (Ø0.25 inch)
Field of View	3.8 x 3.8 mm (0.149 x 0.149 inch)
Lateral Sampling	3.7 μm (0.145 mils)
Vertical Resolution	100 nm (0.00393 mils)
Resolution	0.1 μm (0.01 mils)
Battery Life	Over 20 hours of continuous operation with 3 AAA batteries
Storage Capacity	Up to 250,000 readings in 1,000 batches (Advanced model)
Connectivity	USB, Bluetooth 4.0, WiFi
Software	PosiSoft software suite for data analysis and reporting
Calibration	Certificate of Calibration traceable to accredited national laboratories
