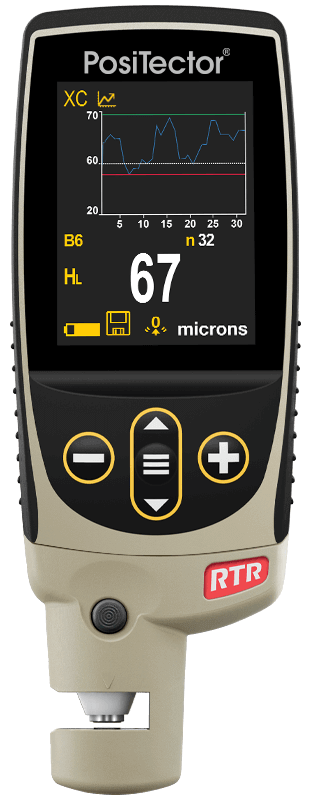

PosiTector RTR H

Electronic Surface Profile Gage for Blasted Steel and Textured Coatings

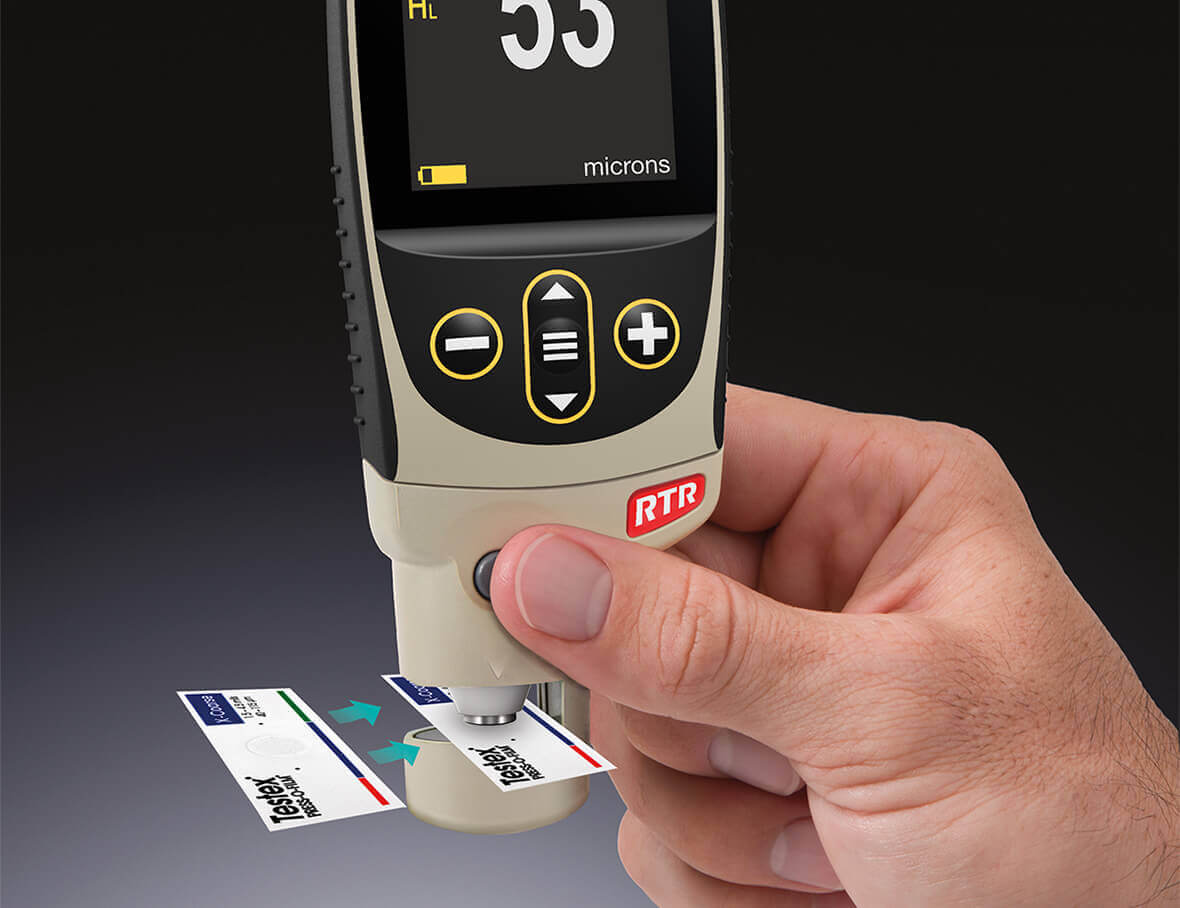

Digital Micrometer for measuring Testex® Press-O-Film® replica tape—compatible with the PosiTector gage body.

Ready to measure—no calibration adjustment required for most applications
Large 2.8″ impact resistant color touchscreen with redesigned keypad for quick menu navigation
Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
Certificate of Calibration showing traceability to PTB included (Long Form)

Conforms to ASTM D4417, ISO 8503-5, NACE SP0287, SSPC-PA 17, SSPC-SP5, SP6, SP10, SP11-87T, and others

Features

High-precision digital surface profile measurement with 1 μm resolution
Wide measurement range from 20 to 115 μm (0.8 to 4.5 mils)
Durable, impact-resistant 2.8″ color touchscreen with backlight
Weatherproof, dustproof, and water-resistant IP65-rated enclosure
Multiple connectivity options: USB, WiFi, and Bluetooth for easy data transfer
Long battery life — over 20 hours of continuous use with 3 AAA batteries
Lightweight and compact design for ease of use in the field
Complies with major industry standards including ASTM D4417, ISO 8503-5, NACE SP0287, and SSPC-PA 17

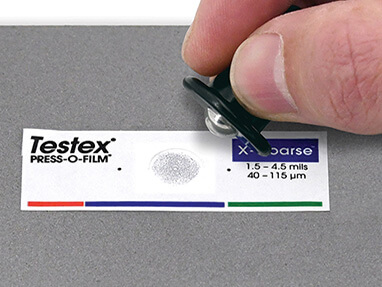

Compatible with Testex® Replica Tape for accurate surface profile readings
Advanced data management with onboard storage and reporting capabilities

Applications

Technical Data

Feature	Details
Measurement Range	20–115 μm (0.8–4.5 mils)
Accuracy	±5 μm (±0.2 mils)
Resolution	1 μm (0.1 mil)
Anvil Diameter	Ø6.35 mm (Ø0.25″)
Anvil Pressure	1.1 N (110 gram-force)
Display	2.8″ impact-resistant color touchscreen with backlit display
Enclosure Rating	IP65 – weatherproof, dustproof, and water-resistant
Connectivity	USB, WiFi, and Bluetooth for data transfer and synchronization
Battery Life	Over 20 hours of continuous operation with 3 AAA batteries
Size	127 x 66 x 25.4 mm (5″ x 2.6″ x 1″)
Weight	137 g (4.9 oz) without batteries
Standards Compliance	ASTM D4417, ISO 8503-5, NACE SP0287, SSPC-PA 17, SSPC-SP5, SP6, SP10, SP11-87T, and others
