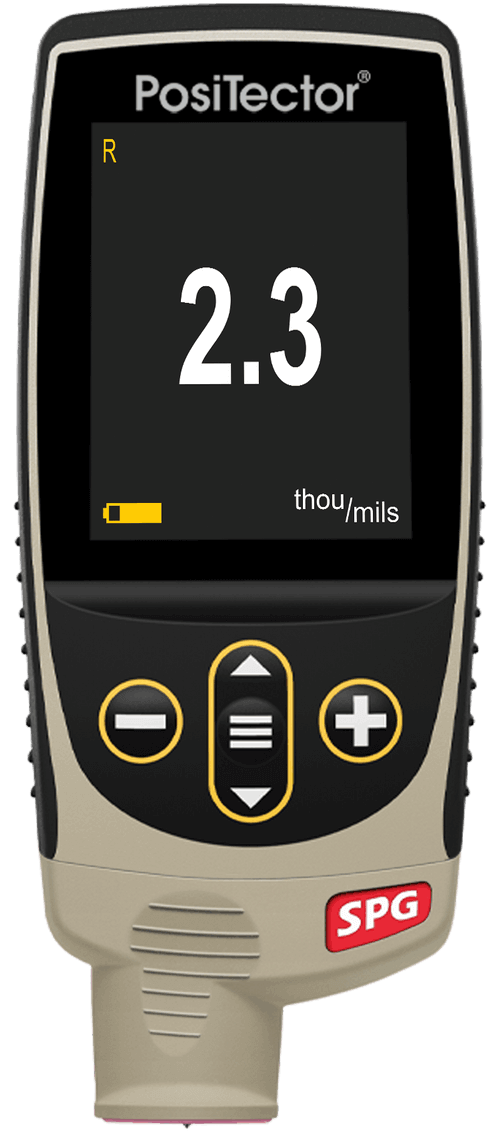

PosiTector SPG

Surface Profile Gages for Blasted Steel, Textured Coatings, and Concrete Profile

Surface Profile Gages use a digital depth micrometer to measure and record peak to valley surface profile heights in preparation for the application of coatings.

Features

Large 2.8″ impact resistant color touchscreen with redesigned keypad for quick menu navigation
Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
Alumina wear face and tungsten carbide tip for long life and continuous accuracy—field replaceable
PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
Fast measurement rate of over 50 readings per minute—for quickly measuring large surfaces
USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
Certificate of Calibration showing traceability to PTB included (Long Form)

Applications

Technical Data

Model	Description	Measuring Range	Accuracy	Tip
SPG	Integral Probe for blasted Steels	0 – 500 μm 0 – 20 mils	± (5 μm + 5%) ± (0.2 mils + 5%)	Angle: 60 Degree* Radius: 50 μm (2 mils)
SPG S	Cabled Probe for blasted Steels
SPG OS	Cabled Probe for Convex surfaces
SPG CS	Cabled Probe for Textured Coatings	0 – 1500 μm 0 – 60 mils	± (5 μm + 5%) ± (0.2 mils + 5%)	Angle: 60 Degree Radius: 500 μm (20 mils)
SPG TS	Cabled Probe for Concrete Profile	0 – 6 mm 0 – 250 mils	± (76 μm + 1%) ± (3 mils + 1%)	Angle: 60 Degree Radius: 500 μm (20 mils)
