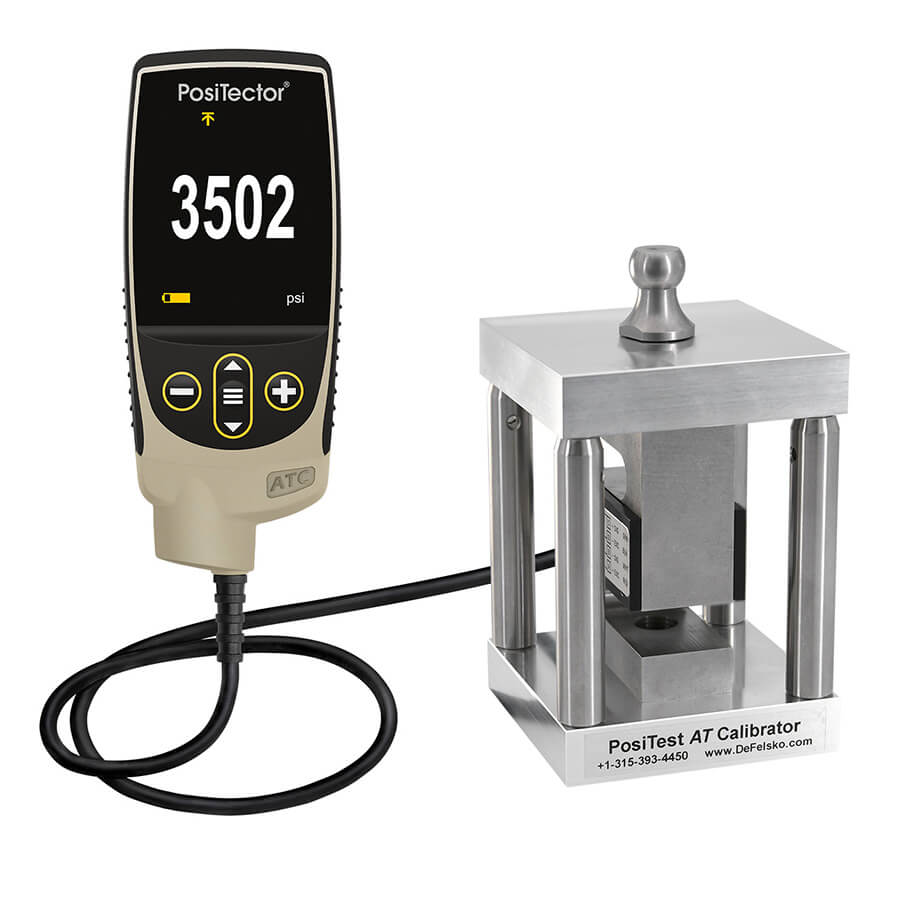

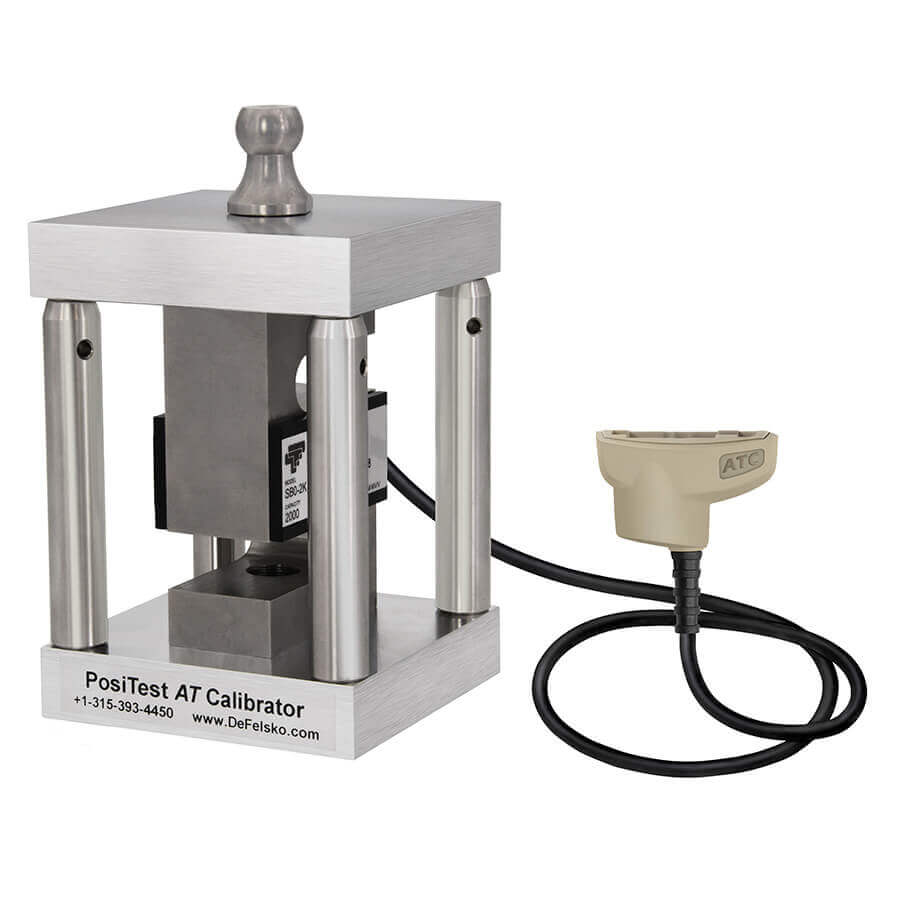

PosiTest AT Verifier

Adhesion Tester Calibrator

The PosiTest AT Calibrator is a precision tool designed to verify the accuracy and operation of PosiTest Adhesion Testers. It features a high-precision load cell and is hermetically sealed for protection against industrial environments. This calibrator is compatible with all PosiTest Pull-Off Adhesion Testers and is ideal for both field and laboratory use. It provides real-time readings and includes a certificate of calibration traceable to NIST, ensuring compliance with ISO and in-house quality control requirements.

Features

High-precision load cell for accurate measurements
Peak hold and real-time reading display
Hermetically sealed for protection against industrial environments
Compatible with all PosiTest Pull-Off Adhesion Testers
Permanent steel 20 mm loading fixture (dolly)
MPa and psi measurement scales
Portable and requires no external power source

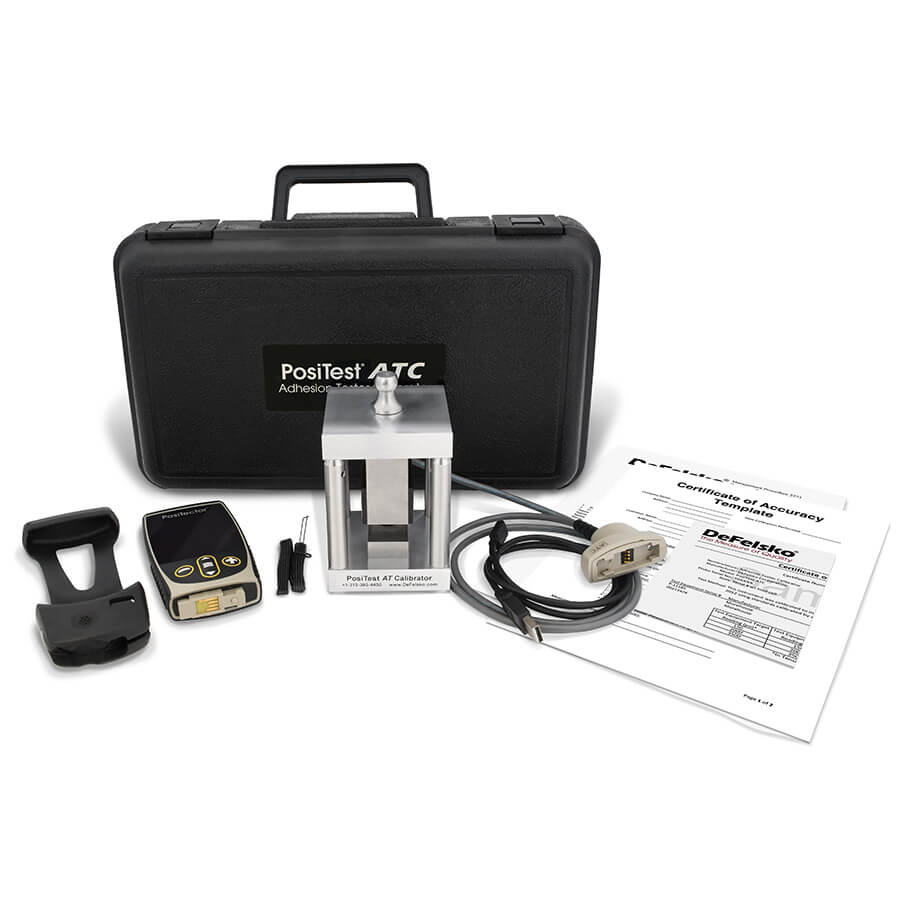

Comes complete with calibration procedure, instructions, and certificate of accuracy template

Applications

Verifying the accuracy of adhesion testers
Fulfilling ISO and in-house quality control requirements
Ensuring compliance with adhesion testing standards
Quality assurance in coating and surface preparation industries
Calibration of adhesion testing equipment in laboratories
Field calibration of adhesion testers on-site
Maintenance and servicing of adhesion testing instruments
Training and certification of personnel in adhesion testing
Research and development in coating adhesion technologies
Supplier quality control and verification

Technical Data

Specification	Value
Measurement Range	110 – 3,500 psi / 0.76 – 24 MPa
Resolution	1 psi / 0.1 MPa
Accuracy	± 5.6 psi / ± 0.039 MPa
Load Cell	High-precision
Display	Real-time reading with peak hold
Loading Fixture	Permanent steel 20 mm (dolly)
Compatibility	All PosiTest Pull-Off Adhesion Testers
Protection	Hermetically sealed
Power Source	No external power required
Calibration Certificate	Included, traceable to NIST
