PosiTest HHD Verifier

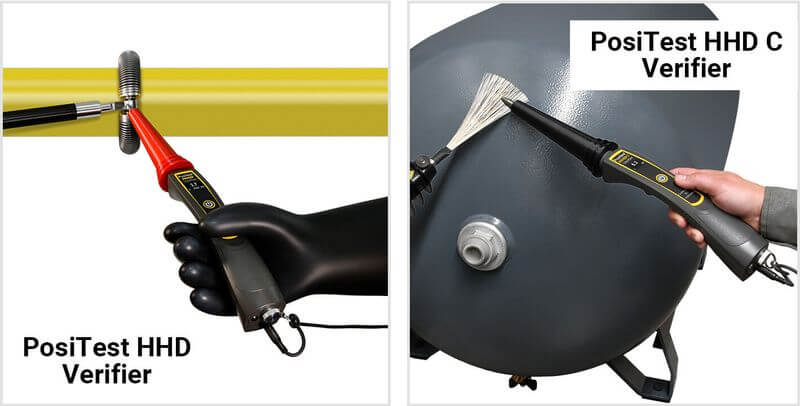

PosiTest HHD Verifier standalone voltmeter (crest meter, jeep meter) for verifying the accuracy and operation of pulse or continuous type DC holiday detectors

The PosiTest HHD Verifier is a precision instrument designed to verify the accuracy and operation of high-voltage holiday detectors, including pulse and continuous DC types. It features a wide measurement range from 0.5 kV to 35 kV, with high accuracy and resolution, making it ideal for both field and laboratory applications. The verifier is lightweight, portable, and operates without the need for an external power source, ensuring ease of use in various environments. Each unit comes with a Certificate of Calibration traceable to NIST, providing assurance of measurement reliability.



Inquire Now
Download Brochure
Features
  • Wide voltage measurement range: 0.5 kV to 35 kV
  • High accuracy: ±5%
  • Resolution: 10 V steps (0.5–1 kV), 100 V steps (1–35 kV)
  • Operates without external power source
  • Lightweight and portable design
  • Includes 1.8 m (6′) ground wire
  • Comes with Certificate of Calibration traceable to NIST
Applications
  • Verification of high-voltage holiday detectors
  • Routine maintenance and calibration of coating inspection equipment
  • Compliance with industry standards and regulations
  • Quality control in coating and linings
  • Field and laboratory testing of coating integrity
Technical Data
Voltage Range 0.5 – 35 kV
Resolution 0.5 kV – 1 kV: 10 V steps
1 kV – 35 kV: 100 V steps
Accuracy ±5%
Operating Temperature -20°C to 60°C (-4°F to 140°F)
Size 43 x 5 x 5 cm (17″ x 2″ x 2″)
Weight 476 g (1.05 lbs)
Ground Wire Length 1.8 m (6′)
Power Source None (operates without external power)
Calibration Certificate traceable to NIST
  • Tags: coating inspection equipment, continuous DC holiday detector verifier, DeFelsko PosiTest HHD Verifier, field calibration tool, high-voltage holiday detector calibration, industrial coating quality control, NIST-traceable calibration, portable voltage tester, PosiTest HHD Verifier, pulse DC holiday detector verifier

Tags:

PosiTest HHD Verifier, high-voltage holiday detector calibration, pulse DC holiday detector verifier, continuous DC holiday detector verifier, coating inspection equipment, NIST traceable calibration, portable voltage tester, industrial coating quality control, field calibration tool, DeFelsko PosiTest HHD Verifier

Coating Inspection Technologies, Others
