PosiTest HHD

High Voltage Holiday Detector

Detects holidays, porosity, pinholes, leaks, and other discontinuities in coatings, linings, and membranes using pulse or continuous DC.

Conforms to ASTM D4787/D5162/D6747/D7953/G62, ISO 29601, NACE SP0188/SP0274/SP0490, AS3894.1

Features

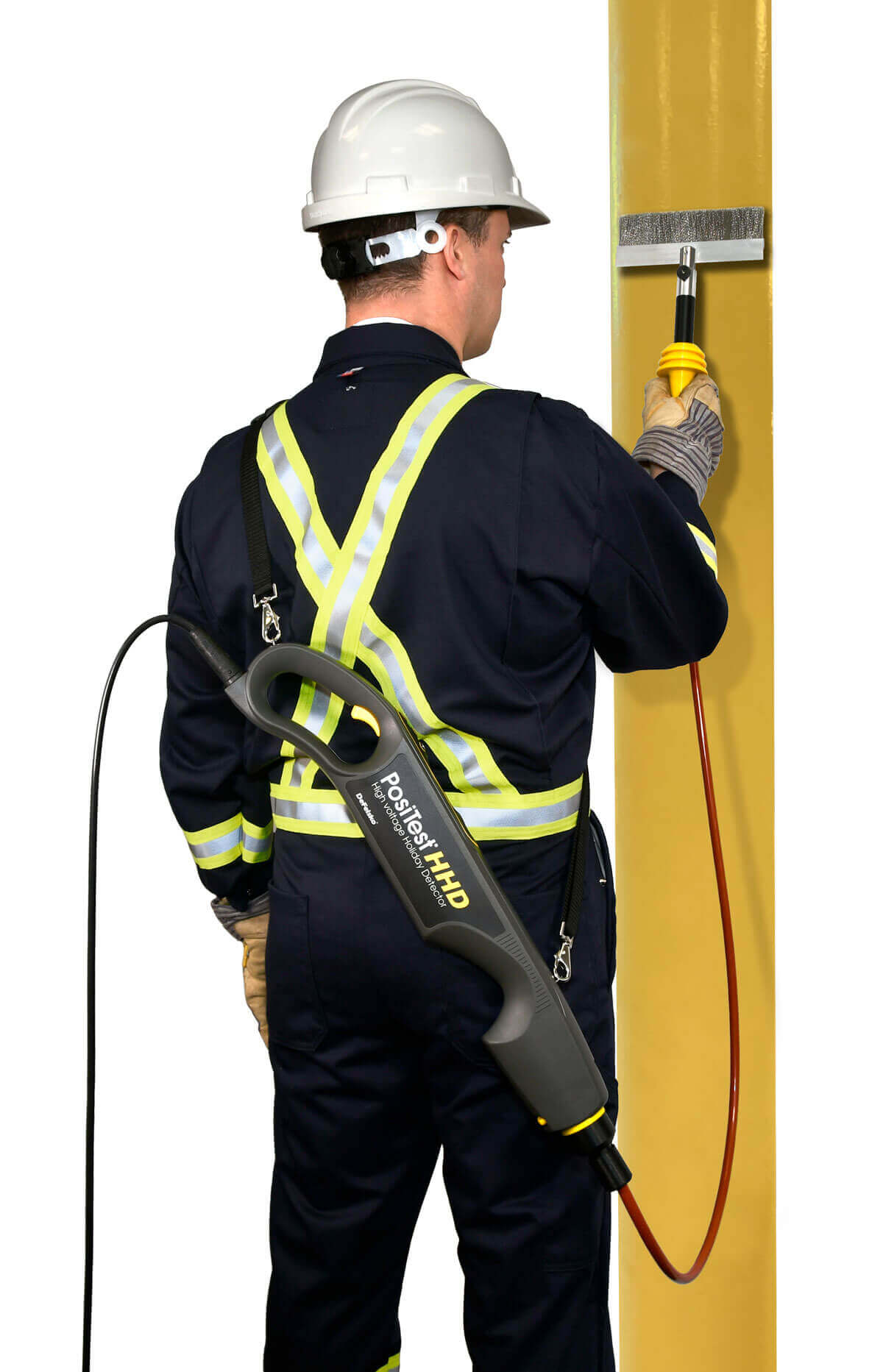

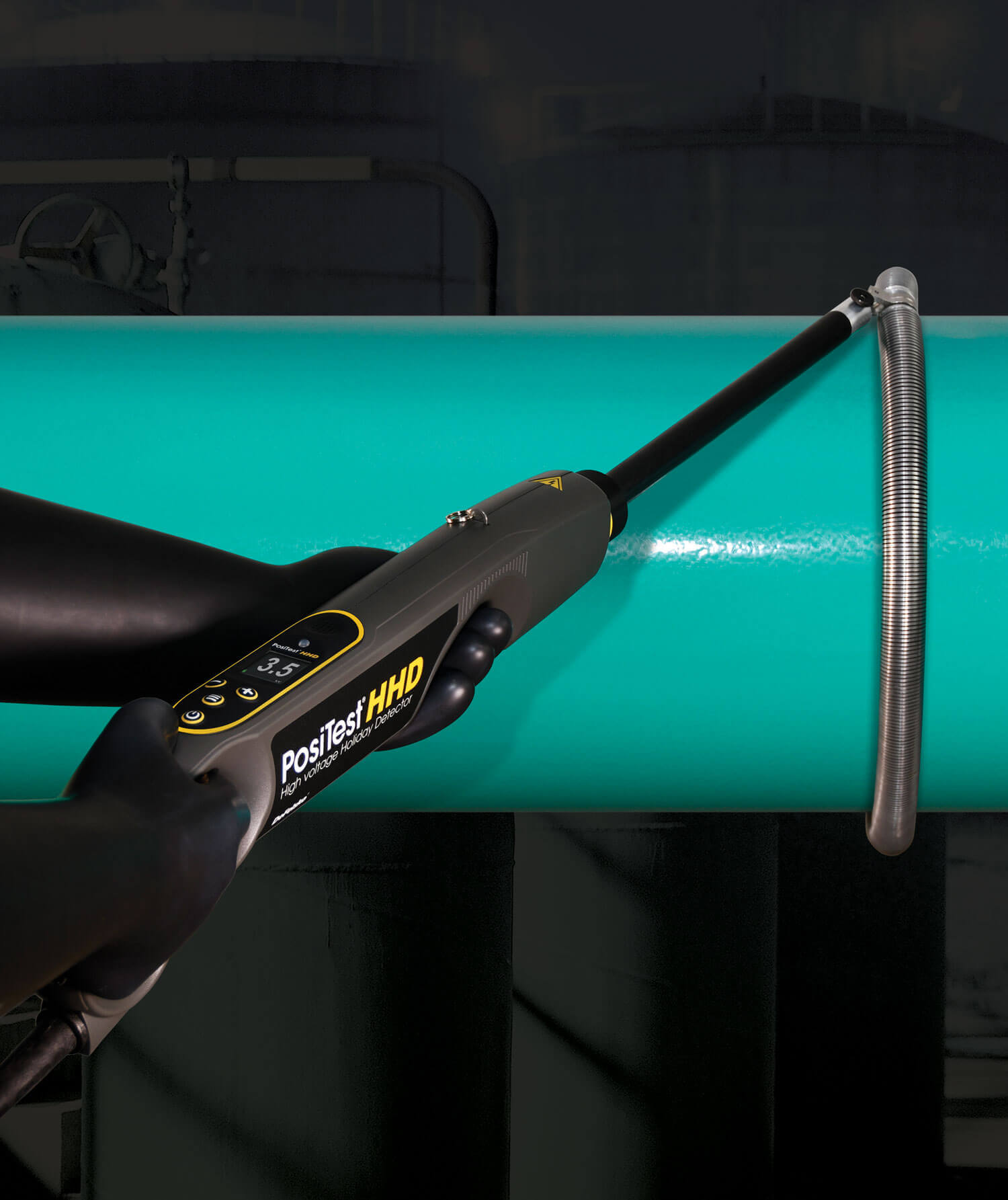

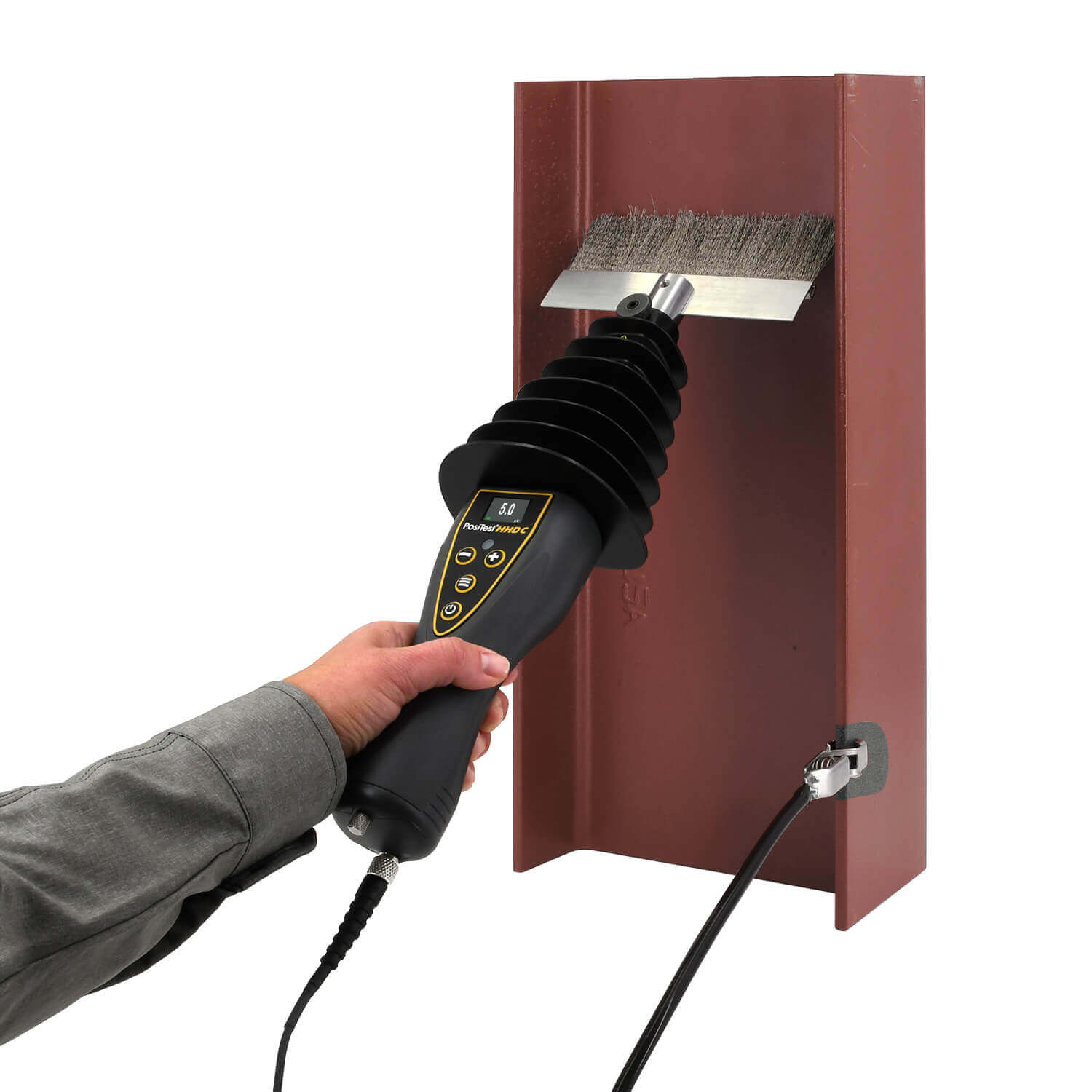

Available as a stick-type with pulsed DC or a compact wand style with continuous DC
Lightweight, ergonomic design provides comfortable all-day use, reducing operator fatigue
Regulated pulse or continuous DC voltage output that won’t change under load— ±5% voltage accuracy
Voltage calculator feature—input the coating thickness to automatically calculate the required test voltage
Extensive electrode options—choose from a wide range of rolling spring and flat wire brush electrodes or use electrodes from other manufacturers with optional adaptors—custom sizes available upon request
Long Form Certificate of Calibration included with each instrument

Applications

Technical Data

Specifications		PosiTest HHD Kit	PosiTest HHD Basic Kit	PosiTest HHD C Kit
DC Output		Pulsed		Continuous
Output Voltage Range		0.5 — 35 kV		0.5 — 30 kV
Output Voltage Adjustment		0.5 kV — 1 kV: 10 Volt Steps ＞1 kV: 100 Volt Steps
Output Accuracy		±5%
Pulse Duration		10 μs		–
Pulse Repetition Rate		30 Hz
Operating Temperature		-20° to 60°C (-4° to 140°F)
Case		Pelican Storm extreme duty waterproof case	Heavy duty hard-shell case
Included Electrode Rod		50 cm (20″)	13 cm (5″)	–
Shoulder Strap		Included	Optional	–
Battery Size		72 Wh Li-ion	36 Wh Li-ion	4 Li-ion 18650 Batteries
Typical Battery Life For selected rolling springs @ 10 kV	Ø 12″	40 hrs.	16 hrs.
	Ø 40″	30 hrs.	12 hrs.
Unit Weight		1.6 kg (3.6 lbs.)	1.5 kg (3.3 lbs.)	0.74 kg (1.63 lbs.)
Unit Dimensions		64 cm x 6.4 cm x 13 cm (25″ x 2.5″ x 5″)		33 cm x 10.8 cm x 8 cm (13″ x 4.25″ x 3.1″)
Case Dimensions		101 x 46 x 18 cm (40″ x 18″ x 7″)	104 x 39 x 14 cm (41″ x 15.5″ x 6″)	46 x 33 x 18 cm (18″ x 13″ x 7″)
