PosiTest LPD

Low voltage Pinhole Detector for Metal and Concrete Substrates

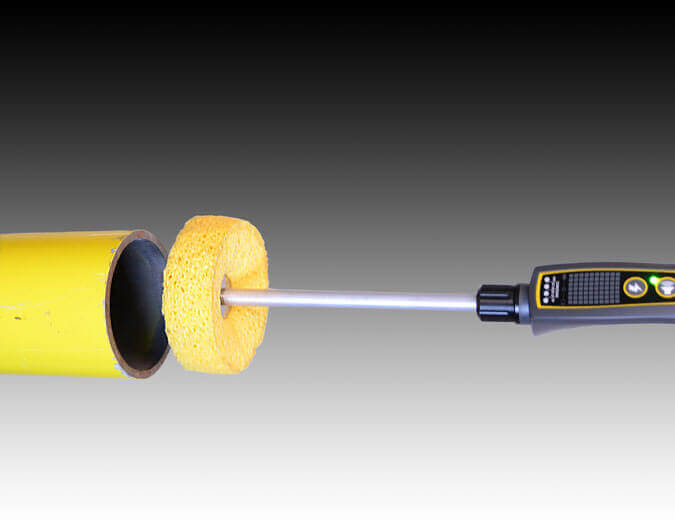

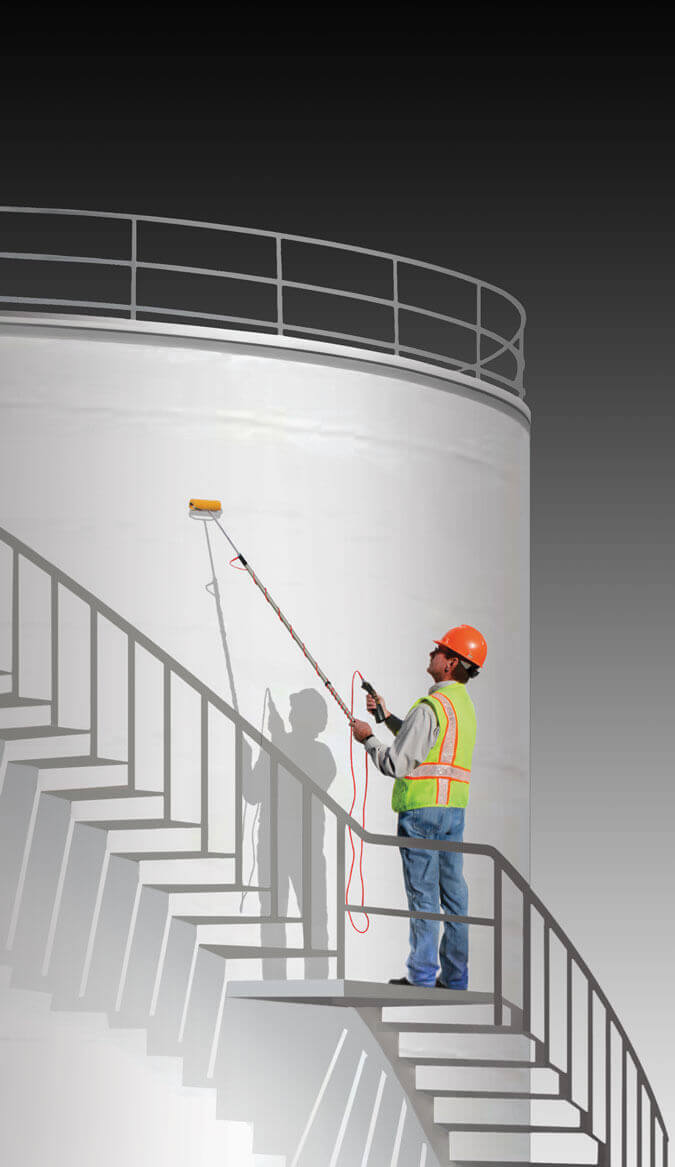

Detects holidays, pinholes and other discontinuities in coatings on metal and concrete substrates.

Conforms to ISO 14654/29601/8289-A, ASTM G62/G6/D5162, BS7793-2, NACE TM0384, SP0188, AS3894.2, JIS K 6766.

Features

GroundSense visibly reassures the user that the instrument is properly grounded
4 voltage output options conform to a variety of standards
Weatherproof, dustproof and shockproof—meets or exceeds IP65
Rugged, environmentally sealed enclosure
Two year warranty
Certificate of Calibration showing traceability to NIST included (Long Form)

Applications

Technical Data

Voltage Setting	9V ± 5%	67.5V ± 5%	67.5V ± 5%	90V ± 5%
Sensitivity	90k ± 3%	80k ± 3%	90k ± 3%	400k ± 3%
Thickness Range	0 – 500 μm (0 – 20 mils)
Temperature Range	-10 – 50° C (14 – 122° F)
Battery Life	> 150 hrs (depending on battery type)
IP Rating	meets or exceeds IP65
Size	27 x 6 x 5.5 cm (10.6″ x 2.3″ x 2.1″) without wand
Weight	180 g (6.4 oz.) without batteries

Tags: coating, Concrete, Holiday Detector, Low voltage Pinhole Detector, LPD, Metal, PosiTest

Tags:

LPD, Low voltage Pinhole Detector, Holiday Detector, PosiTest, Metal, Concrete, Coating

Coating Inspection Technologies, Pinhole & Holiday Detection
