PosiTest OTL

Oven Temperature Logger

Measures and records oven temperature profiles

Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches

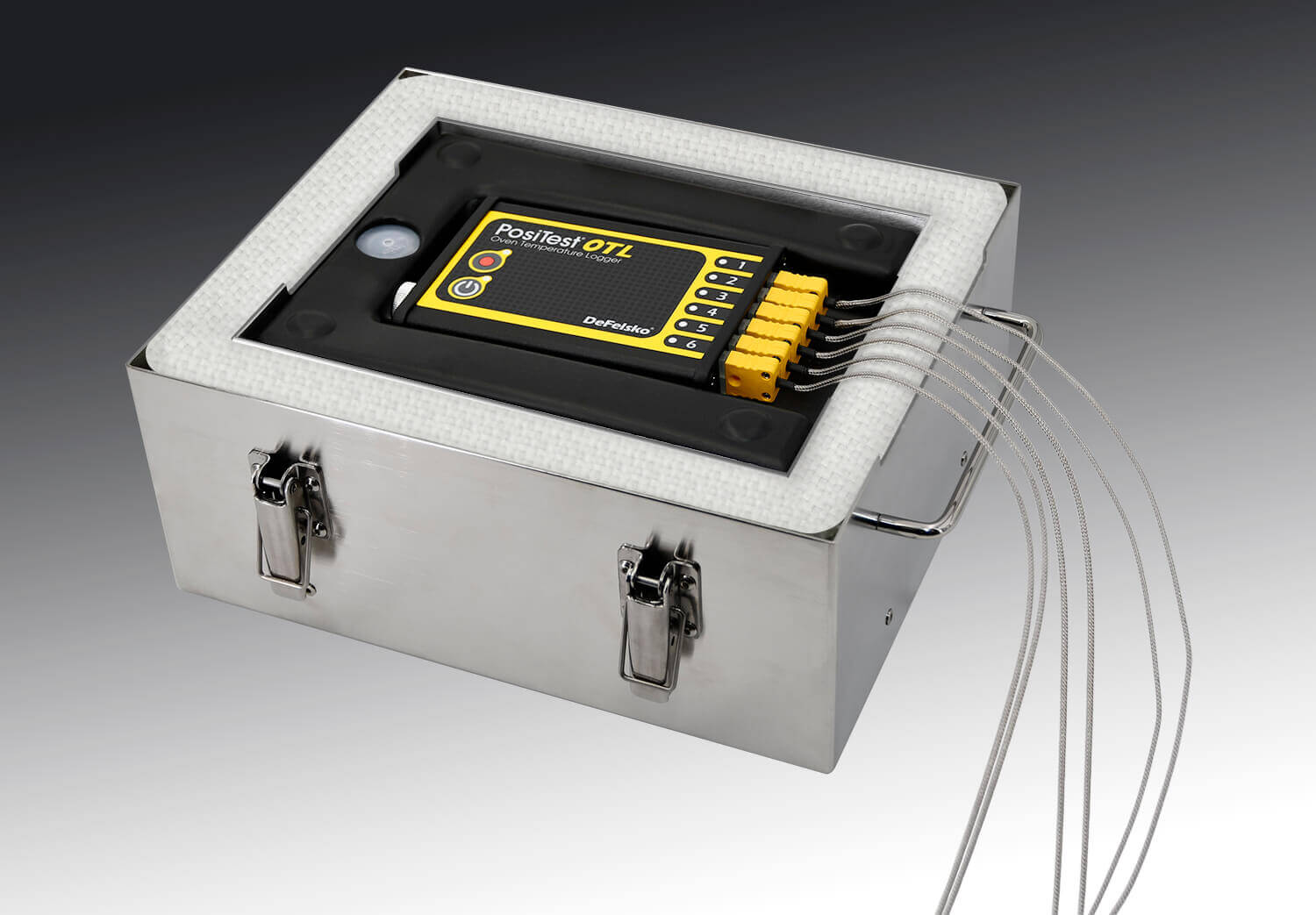

High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.
6 K-type thermocouple ports (channels)
NEW Cure Index compares supplier’s cure specifications to actual oven and part temperatures to ensure a proper cure
Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets.

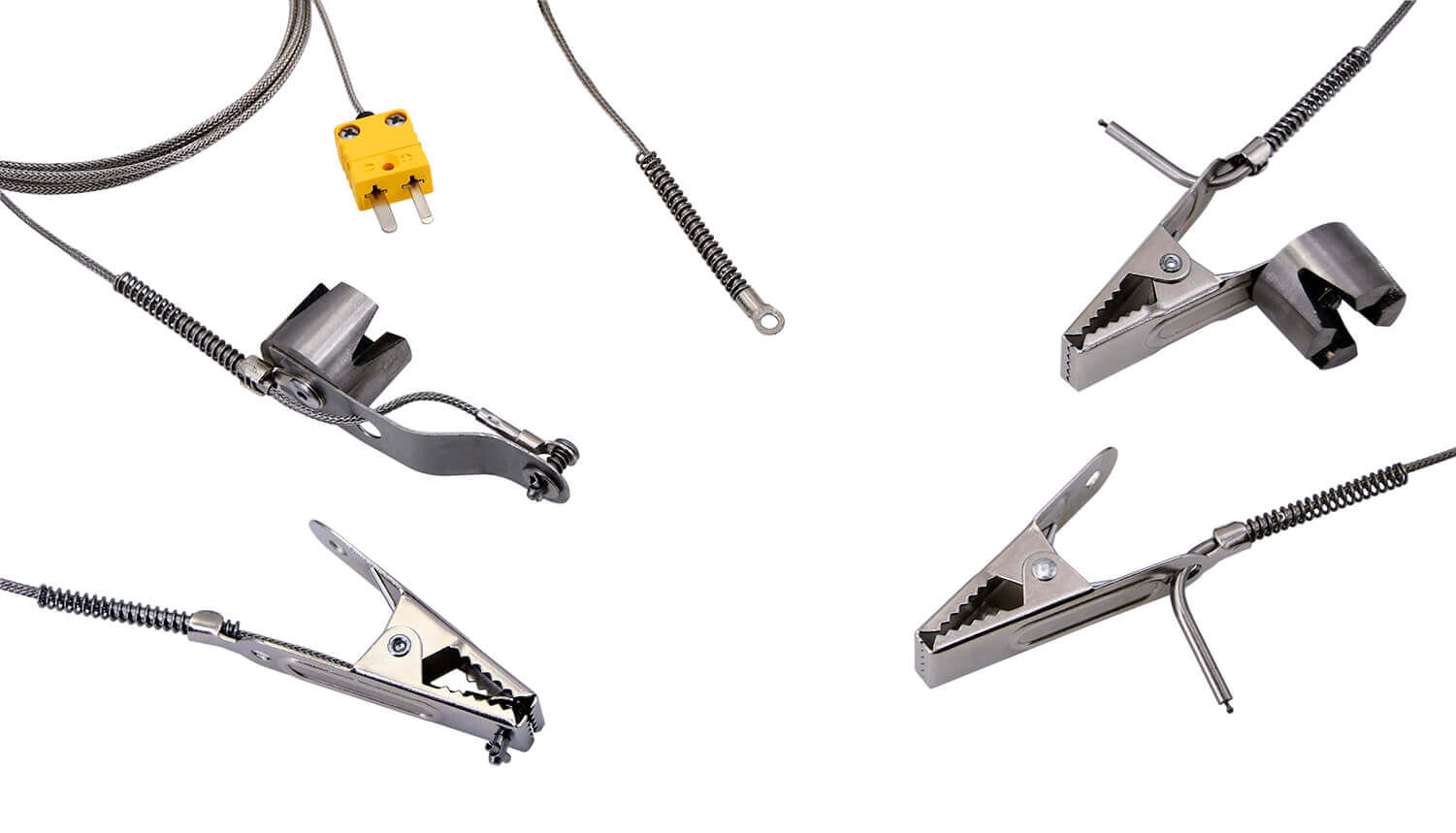

Wide variety of probes available with 1.8, 3.6, or 6 m (6′, 12′, or 20′) stainless steel braided cables (sold separately)

Features

Simple, easy-to-use interface
6 K-type thermocouple ports (channels)
Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches
Records measurements every 2 seconds for up to 22 hours of recording time
Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets.
NEW Cure Index compares supplier’s cure specifications to actual oven and part temperatures to ensure a proper cure
Bright LEDs indicate logger status at a glance
High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.
Certificate of calibration showing traceability to NIST included

Applications

Technical Data

Channels	6 K-type non-grounded thermocouples
Thermocouple Measurement Range	-100 to 1000°C -148 to 1832°F
Logger Accuracy	±0.5° C ±0.9° F
Resolution	0.1° C 0.1° F
Memory	40,000 Datasets. Each Dataset consists of up to 6 channels.
Sample Interval	2 seconds (Fixed) Maximum recording time is 22 hours

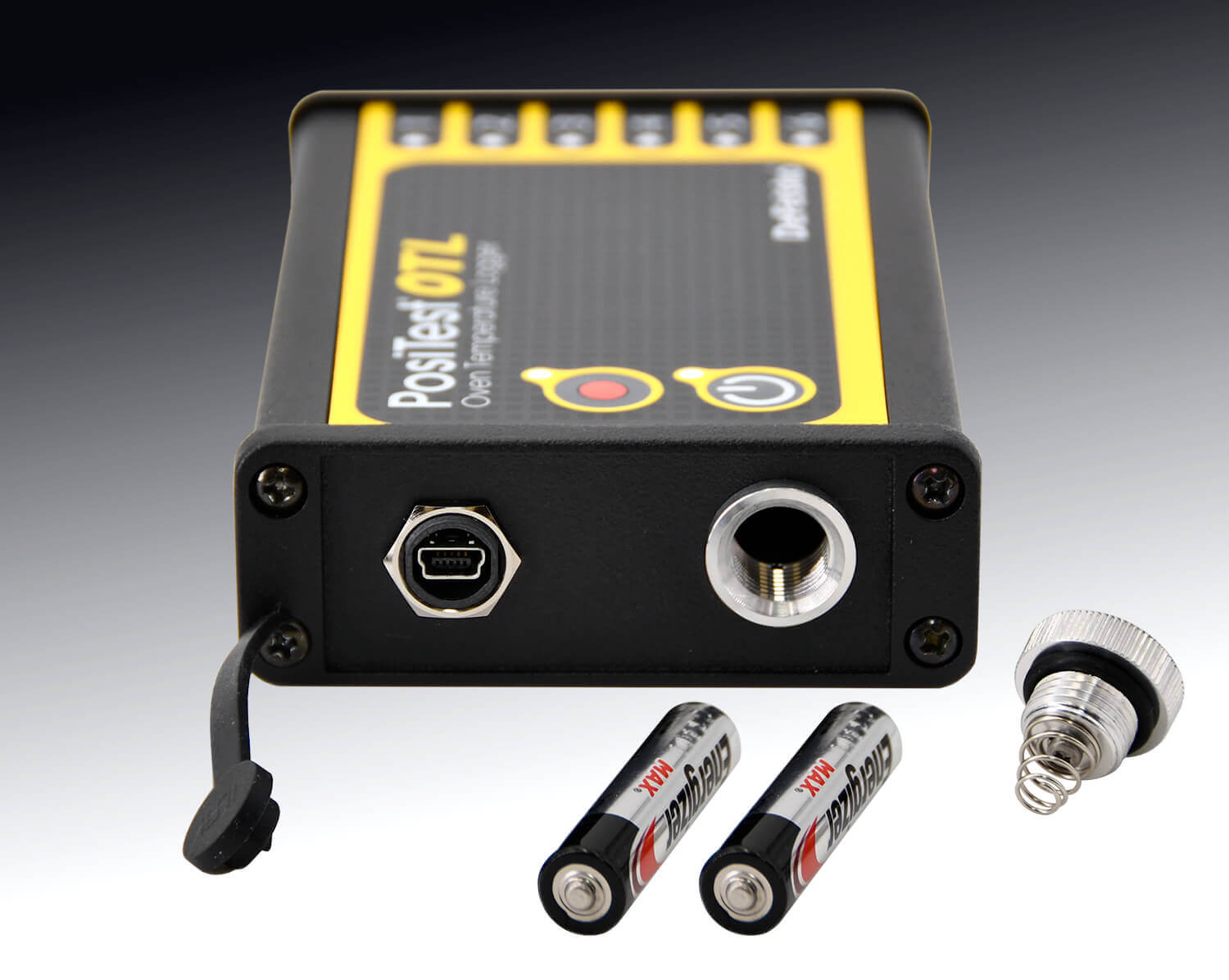

Power Source	2 AAA batteries
Battery Life	30 hours (recording time)
Size	30.5 x 25.5 x 15 cm (12″ x 10″ x 6″)
Weight	9 kg (20 lbs.)
