Testex Replica Tape

Testex Replica Tape measures surface profile by creating a replica of the surface, which can be measured using a micrometer

Same trusted Coarse and X-Coarse replica foam in new strip format

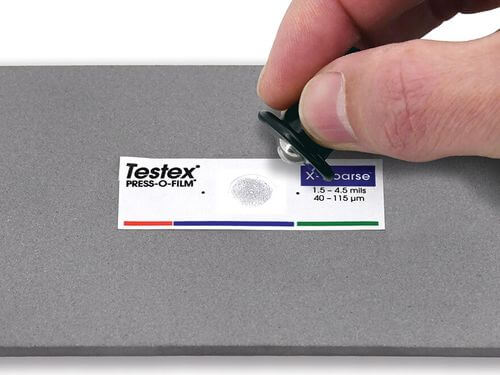

Simple technique: place on the surface, press/burnish it into the surface, remove, and measure
Proven technique with accuracy and repeatability validated by numerous independent studies

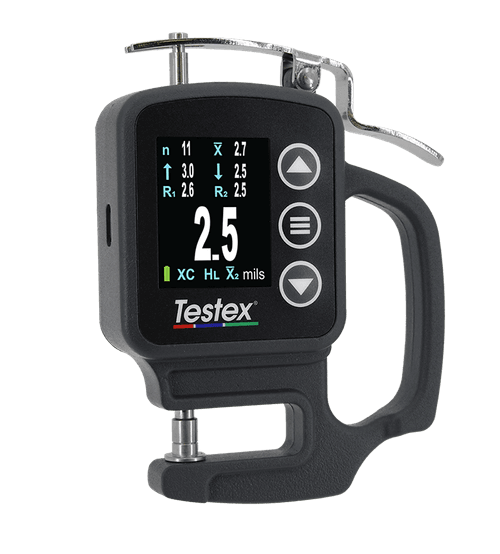

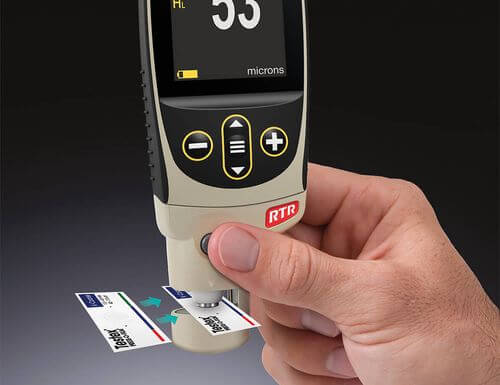

Measure using a precision digital or analog micrometer or electronic PosiTector RTR Replica Tape Reader
Less than 30 seconds required for most replicas
Only surface profile measurement method recognized by ISO, ASTM, and AMPP

Conforms to ASME B46, ASTM D4417, ISO 8503-5, NACE SP287, SSPC-PA 17, SP5, SP6, SP10, SP11-87T, and others

Features

Simple Application: Place on the surface, press/burnish it into the surface, remove, and measure.
Rapid Measurement: Less than 30 seconds required for most replicas.
Versatile Measurement Tools: Compatible with precision Digital Micrometers, Analog Micrometers, or the PosiTector RTR Replica Tape Reader.
Ideal for Challenging Surfaces: Suitable for measuring on round surfaces and other challenging locations
Complete Kits Available: Includes everything needed for testing.

Applications

Technical Data

Feature	Details
Grades Available	Coarse, X-Coarse, X-Coarse Plus
Measurement Range	Coarse: 12–25 µm (0.5–1.0 mils), X-Coarse: 25–50 µm (1.0–2.0 mils), X-Coarse Plus: 50–100 µm (2.0–4.0 mils)
Accuracy	Coarse: ±2 µm (±0.1 mils), X-Coarse: ±6 µm (±0.2 mils), X-Coarse Plus: ±8 µm (±0.3 mils)
Burnishing Tool	High Accuracy Burnishing Tool
Temperature Resistance	Up to 60°C (140°F)
Shelf Life	Long shelf life with no expiration date
Standards Compliance	ISO 8503-5, ASTM D4417, NACE SP287, SSPC-PA 17, ASME B46
