GP8000

Classic Handheld Concrete GPR

The Proceq GP8000 is a portable, single-probe ground-penetrating radar system designed for easy concrete and structural inspections. Utilizing advanced stepped-frequency continuous-wave (SFCW) radar technology, it provides deep penetration and sharp resolution within a single lightweight device. It is highly efficient for rebar locating, utility detection, and concrete quality assessment in tunnels, pavements, and deep concrete slabs.

Features

Stepped‑frequency continuous‑wave (SFCW) technology covering a wide 200–4000 MHz range
Single-probe configuration delivering an exceptional penetration depth of up to 150 cm (60 in)
Ultra-wideband performance replacing the need for multiple traditional antennas (0.9 to 3.5 GHz)
Multiple review modes: line scan (B-scan), A-scan (incl. envelope), migrated/non-migrated views, basic time-slice, 3D, and AR

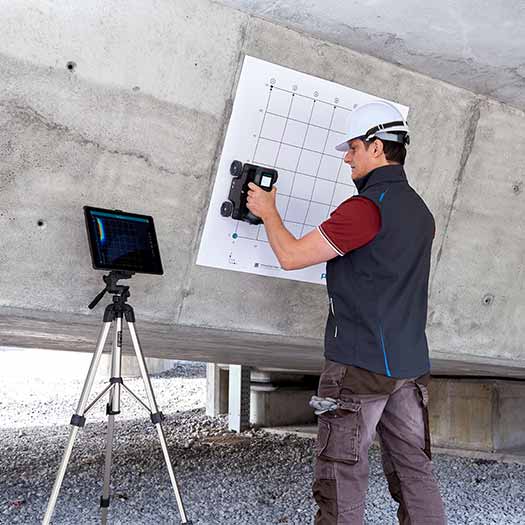

Area scanning with a flexible grid layout up to 16 m²

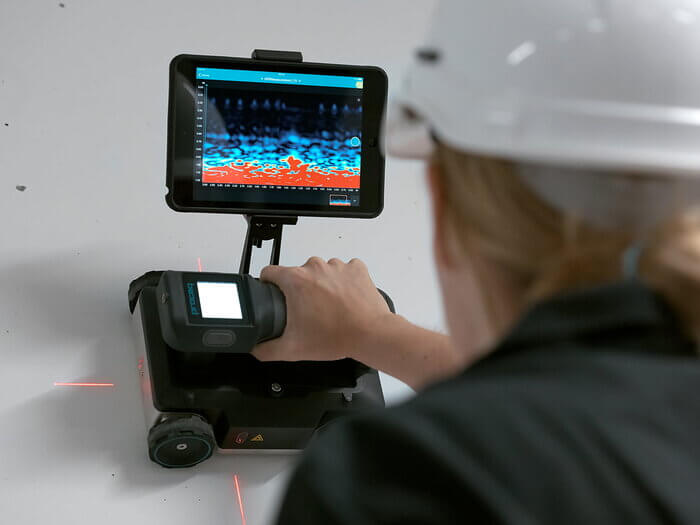

Real-time Wi‑Fi connectivity to iPad for live data visualization, cloud sync, and instant reporting
Flight‑safe removable battery pack (8× AA NiMH) providing ~3 to 3.5 hours of continuous runtime
Rugged all‑wheel drive with high-traction wheels, laser-guidance lights, and IP54 protection
Lightweight, compact, and ergonomic design weighing only 1.5 kg for comfortable long-duration use

Applications

Investigation of thick pavements, concrete slabs, and tunnel linings
Locating rebars, conduits, ducts, and live wires before drilling, cutting, or coring
Shallow utility locating and structural mapping
Concrete quality assessment and delamination detection
Deep-subsurface structural imaging up to 1.5 meters

Technical Data

Parameter	Specification
Technology	Stepped‑frequency continuous‑wave (SFCW) GPR
Frequency Range	200–4000 MHz
Penetration Depth	Up to 150 cm (60 in)
Effective Scan Width	Single-line probe width
Scan Rate	Standard high-density data acquisition
Array Antennas	1
Dimensions (L × W × H)	22.1 × 18.0 × 14.0 cm
Weight (excl. batteries)	~1.5 kg (3.3 lb)
Ground Clearance	~0.8 cm
Ground Coupling	All-wheel drive with laser guidance
Battery	Flight-safe removable AA pack (8x AA NiMH or alkaline)
Autonomy	~3 to 3.5 h standard
Connectivity	Wi‑Fi (802.11n) to iPad; USB‑C support
Review Modes	Line scan (B-scan), A-scan, 3D, AR, time-slice
Area Scan Grid	Up to 16 m² flexible grid
Protection Rating	IP54
