GP8800

Proceq Ground Penetrating Radar

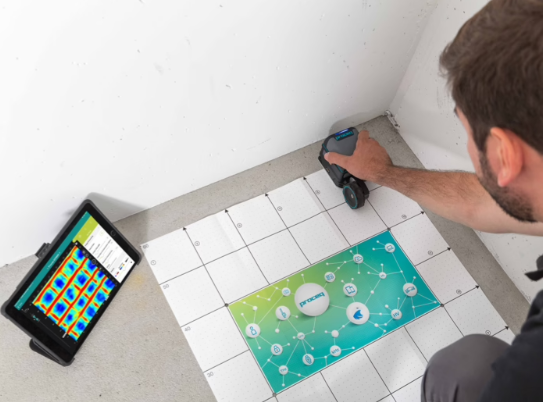

Concrete inspections and structural imaging with SFCW ground penetrating radar technology now fits at the palm of your hand

Superior insights thanks to unparalleled depth and clarity of data from the powerful probe
Easy to learn and to operate with our user-friendly, feature-rich, intelligent software
Unmatched productivity through user-centric inspection ergonomics and digital workflow

Features

Performance. Superior depth and clarity of data thanks to the unique Swiss Made radar technology with all the frequencies you’ll ever need. Immediate insights with 3D and Augmented Reality.
Versatility. Inspect with ease of use, from the tightest spots to the tallest walls to the longest streets. Superior ergonomics to tackle any challenge with comfort, without cables.
Productivity. A mobile app that lets you annotate measurements with voice, photos and comments. Generate reports and share them instantly. Access your data from anywhere, anytime.

Applications

Technical Data

Radar Technology	Stepped-frequency Continuous-Wave GPR
Modulated Frequency Range	400 – 6000 MHz
Penetration Depth	65 cm / 25.6 in
Battery	Flight-safe, removable pack, 4x AA (NiMH)
Dimensions	8.9 x 8.9 x 7.6 cm 3.5 x 3.5 x 3 in
Weight	487 g / 17.2 oz (excl. battery pack)
Measurement Nodes	Superline Scan (1000m / 3281 ft) Area Scan (with Flexible Grid up to 100 sq. m/ 1076 sq. ft)
Review Modes	Superline scan A-scan (incl. envelope) Migrated view Non-migrated view Split view Time-Slice view Basic 3D view AR
Advanced visualization	Time-Slice view Pro 3D view Augmented Reality (AR)
