Resipod

Portable Concrete Electrical Resistivity Meter

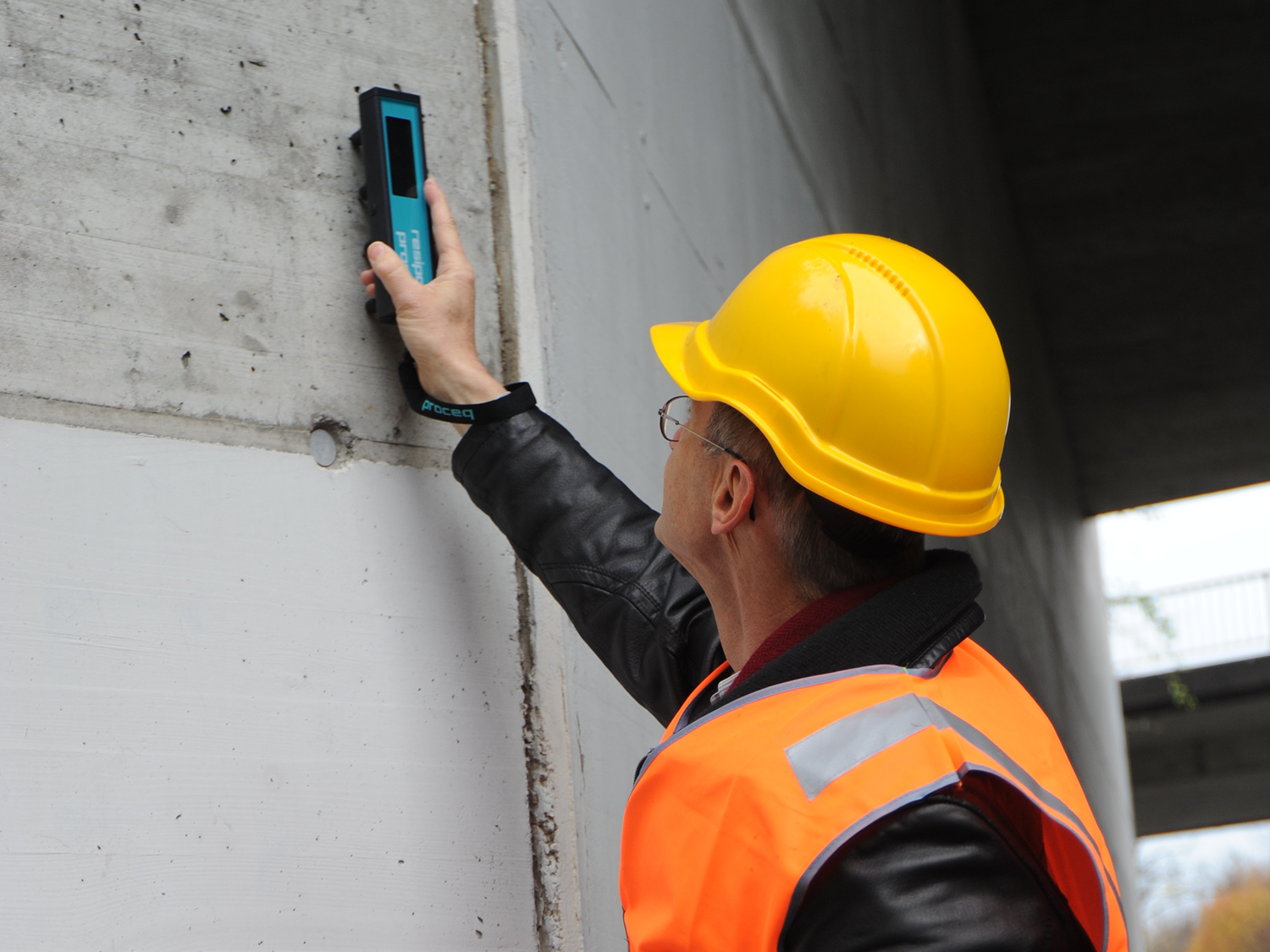

The Proceq Resipod is an integrated Wenner-probe resistivity meter designed for rapid, accurate, and non‑destructive surface assessment of concrete resistivity. Encased in a rugged, waterproof housing, it delivers high-resolution readings with onboard memory and USB connectivity, enabling users to evaluate concrete durability, corrosion likelihood, chloride penetration susceptibility, curing efficiency, and even early-age strength in minutes.

Features

Fully integrated 4‑point surface Wenner probe (available in 38 mm or 50 mm spacing)
Measures electrical resistivity (kΩ·cm) from ~1 to ~1000 kΩ·cm
Highest resolution available (±0.2 to ±2 kΩ·cm depending on range)
Current flow and poor contact indication for data reliability
Onboard memory for up to 500 measurements
Pixel graphic LCD display for clear readout
USB Type‑B port and Resipod Link PC software with variable probe spacing support
Waterproof design capable of floating (IPX7)
Removable probe tips and accessory support for bulk resistivity or variable spacing setups

Applications

Assessing likelihood and rate of concrete corrosion
Estimating chloride permeability and diffusion potential
Evaluating curing efficacy and concrete quality
Mapping variations in water/cement ratio zones
Supporting durability planning and cathodic protection design

Technical Data

Parameter	Specification
Measured Quantity	Electrical resistivity (kΩ·cm)
Measuring Range	~1 to ~1000 kΩ·cm (probe spacing dependent)
Accuracy / Resolution	±0.2 to ±2 kΩ·cm (range-dependent)
Probe Spacing Options	38 mm (AASHTO) or 50 mm (general use)
Display	Pixel graphic LCD
Memory Capacity	500 measured values
Connectivity	USB Type-B
Power / Battery Life
Waterproof Rating	IPX7 (floats)
Weight	~318 g
Dimensions	~197 × 53 × 70 mm
Software	Resipod Link (PC-based analysis)
Probe Accessory Options	Variable spacing probe, bulk resistivity kit
