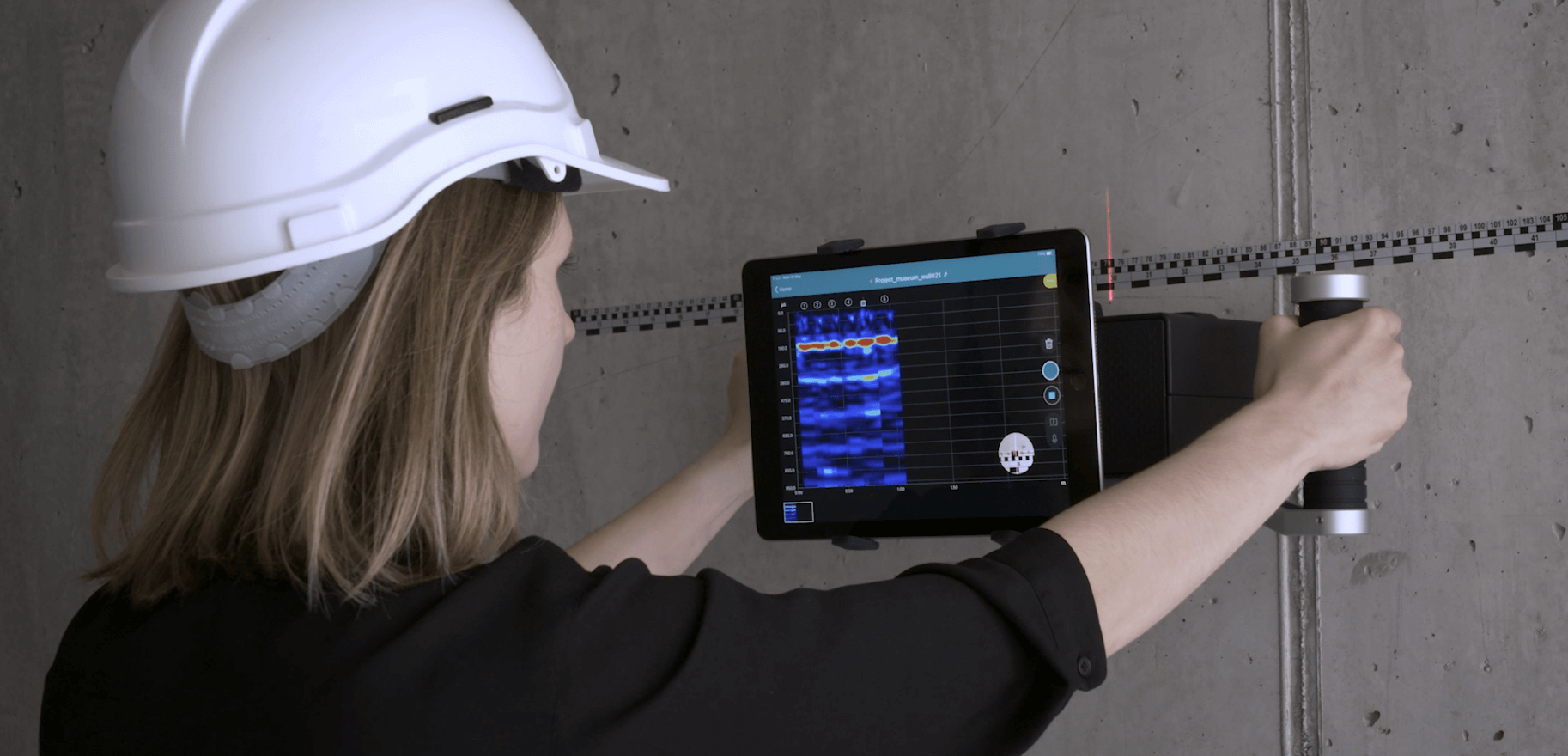

PD8050

World's lightest multi-channel ultrasonic PE array imaging solution powered by AI

Consolidated power in a single device for structural imaging, object and defect detection with ultrasound pulse echo

Features

Efficiency. Have the power of the Pundit 200 PE, Pundit 250 Array and PD8000 with a single device. Enhanced wireless inspections with on-site, 2D, heatmap and high-resolution 3D imaging.
Accuracy & Resolution. Superior clarity of data at different depths thanks to the unique Swiss Made ultra-wideband radar technology, with high-accuracy geolocation in local coordinates.
User Experience. End-to-end workflows, all the way from the most intuitive data acquisition to instantly shareable deliverables. Access your data from anywhere, anytime.

Applications

Location of subsurface defects of concrete
Measurement of thickness of concrete elements
Determination of concrete pulse velocity for homogeneity and strength estimation
Void and delamination detection
Bonding assessment
Thickness measurement
Honeycombing detection
Fiber concrete
Concrete hit prevention
Imaging of closely spaced rebars

Technical Data

Bandwidth	20 – 80 kHz
Technology	Multi-channel Ultrasonic Pulse Echo
Measuring Resolution	1 us
Pulse Voltage	±50 to ±150 V (UPE)
Receiver Gain	1 to 10’000 (0 to 80 dB)
Display	Screen size: From 7.9″ to 12.9″ Resolution: Up to 2732-by-2048 Memory: Up to 2TB Weight: Down to 301 g / 10.6 oz Camera: Up to 12MP Wide and 10MP Ultra Wide Optional: USB-C, 5G, Face ID
Measuring Range	Up to 2 m / 6.6 ft depending on concrete quality
Review Modes	A-scan (incl. envelope) B-scan (Line view) C-scan (Time-Slice view) Heat map (depth) Heat map (pulse velocity)
Battery	Battery pack, 6x AA (NiMH), flight-safe
