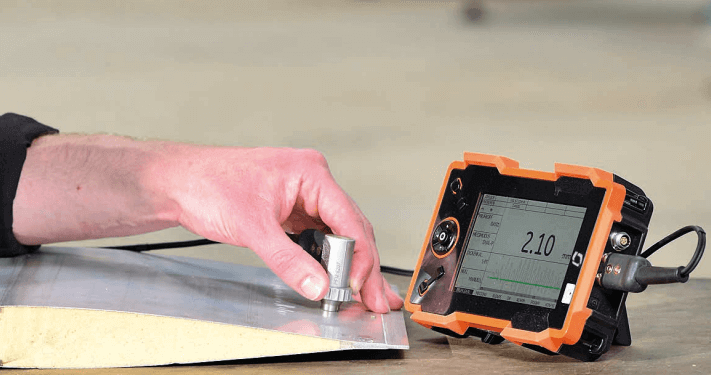

DMS Go+

Ultra-portable, ultra-powerful thickness gauge

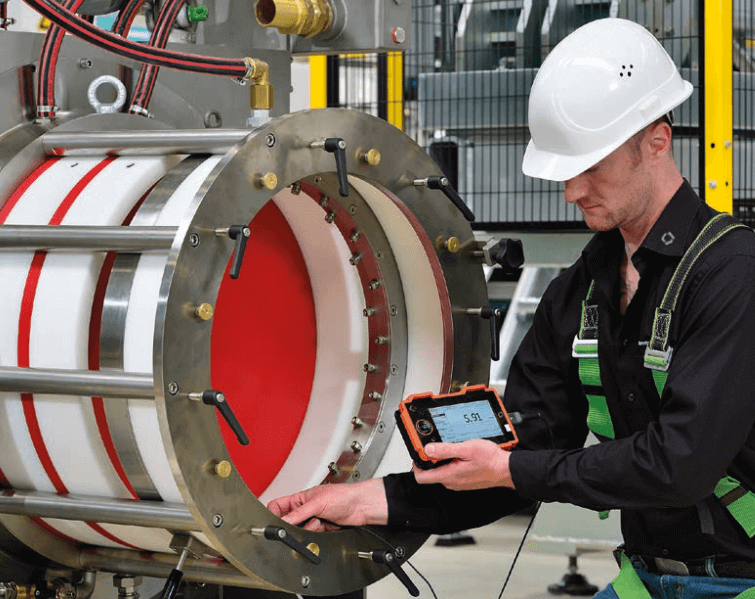

Designed to work in the harshest environments, DM5E Corrosion Monitoring Ultrasonic Thickness Gauge performs well in any thickness inspection of pipelines, pressure vessels, and storage tanks of any industry. Its multiple line of ultrasonic probes allow application versatility at high thickness limits and temperatures.

Features

OPERATOR FRIENDLY: All versions of the DM5E have the same user-friendly operator keypad interface.
VERSATILITY: A new set of ultrasonic probes was developed for the DM5E family to provide the instruments with optimized performance
EFFICIENT: With the dual-multi measurement feature that both the DM5E and the DM5E DL offer, there is no need to remove any protective coating.
REVOLUTIONARY: Build-in datalogger of the DM5E DL, having the capacity to store up to a 50,000 reading in grid and linear files

Applications

Technical Data

Features
Display	5 inch, 800 × 480 pixels, 108 × 65 mm (W x H), > 200 cd/m2
Size (W x H x D)	175 × 111 × 50 mm (W × H × D)
Weight	850 g with battery
Protection class	IP 67
Operating temperature	0 – 55 °C
Battery	Li-Ion, rechargeable, > 8 hours operation time
Power adapter / charger	100 – 240 V AC, 50/60 Hz
Probe connector	Dual Lemo-00 (T/R)
Datarecorder	100.000 readings per file. Multiple files can be stored on SD card 8 file formats, Attachment of A-Scan, B-Scan and micro grid
Pulser	120 – 250 V, Spike wave, Automatically matched to probe
Puls Repetition Frequency	4, 8 or 16 Hz selectable
Receiver	110 dB dynamic, automatic gain control, Manual –high, -low, -auto
Measurement range	0,4 – 14.000 m/s (0.01 – 551 “)
Units	mm, inch, µs
Digital Display resolution	0,01 mm or 0,1 mm (0.001” or 0.01”) selectable
Measurement techniques	Zero crossing, IP to 1st echo, multi echo, TopCoat, Auto-V
Calibration	One-point, Two-point Auto or Manual On-block and Off-block Zero Automatic V-Path correction
Display mode	Thickness and A-Scan, Temperature corrected thickness, B-Scan, Min/Max capture, Differential
Compliance	EN 61010,EN 61326-1, EN 12668, ASTM E 1324, E317, ANSI/NCSL Z 540-1-1994 MIL-STD 45662A, MIL-STD 2154, EN 15317
