Eddyfi Amigo2

Portable Alternating Current Field Measurement Technology

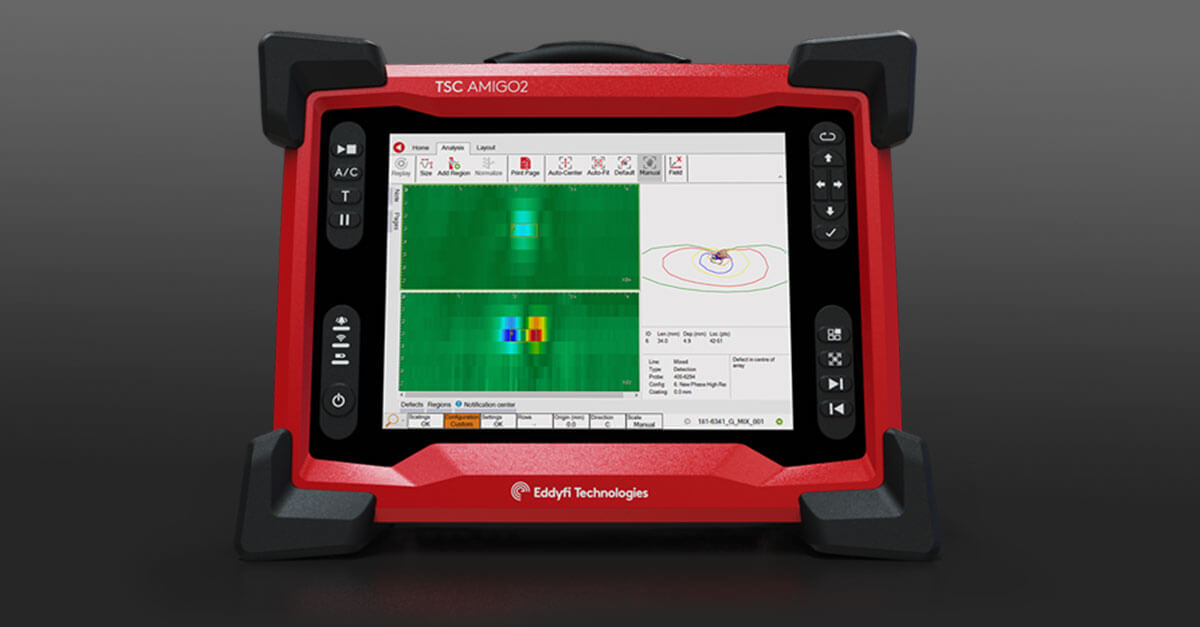

The Amigo 2 is a highly advanced, portable Alternating Current Field Measurement (ACFM®) instrument engineered for high-speed detection and precise sizing of surface-breaking cracks. Encased in a rugged IP65 magnesium alloy housing, it operates via an integrated multi-touch screen designed for gloved hands and features the intuitive Assist software for streamlined data collection and reporting.

Features

Through-Coating Inspection: Inspects directly through thick coatings, drastically reducing structural downtime and the overhead costs of coating removal and re-application.
Complex Surfaces: Performs flawlessly on rough, uneven surfaces and complex structural geometries.
Enhanced Productivity: Offers drastic speed upgrades (up to 10 times faster processing than legacy systems) using multi-element Sensu 2 large-coverage pencil and array probes.
Precise Crack Sizing: Features 2x encoder inputs supporting advanced 3BZ crack sizing technology to deliver accurate crack length and depth evaluation.
Field-Ready Portability: Rugged, fanless, sealed IP65 casing equipped with hot-swappable batteries (6–8 hours of operations) and an optically bonded, non-reflective LED touchscreen.
Modern Connectivity: Built-in Wi-Fi, Bluetooth, and cloud integration enabling direct data syncing via OneDrive and remote screen sharing through Zoom.

Applications

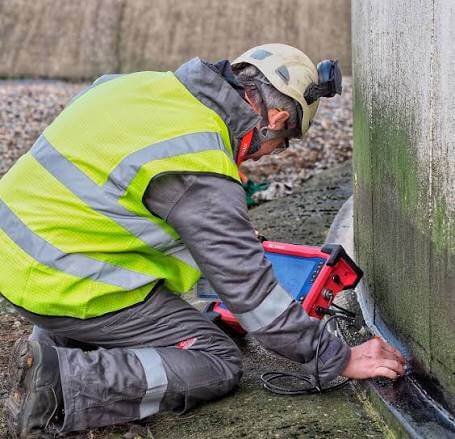

Generic structural weld inspections
Fillet weld, lap joint, and butt weld inspections (utilizing standard or high-productivity single-pass array probes)
Inspection through thick paint and structural coatings
Thread inspection / OCTG drill string thread inspections
High-temperature inspections (up to 500°C / 932°F)
Underwater and splash zone inspections down to 50 meters (165 feet)
Galvanized steel welding inspections
Infrastructure assets (bridges, cranes, amusement parks, wind turbines, communication towers)

Technical Data

Parameter / Feature	Technical Specification Details
Dimensions (W × H × D)	355 × 288 × 127 mm (14.0 × 11.3 × 5.0 in)
Instrument Weight	6.6 kg (14.5 lb)
Chassis Volume	13 L (791 in³)
Power Requirements	100–240 VAC, 50–60 Hz
Power Supply Type	Direct VAC line power or internal batteries
Battery Specifications	Onboard rechargeable Li-ion batteries (DOT compliant); Typical life of 6 to 8 hours
Display Panel	26.4 cm (10.4 in) optically bonded LCD multi-touchscreen; features non-reflective AR coating, oleophobic anti-fingerprint treatment, and 3 mm (1/8 in) chemically strengthened glass
Video Output	HDMI port
Data Storage	Onboard Solid-State Drive (SSD), 100 GB capacity
Connectivity Interface	Gigabit Ethernet, Wi-Fi, Bluetooth, 3 × USB 2.0
Environmental Protection	Fully sealed casing designed to meet IP65 waterproofing and dust standards; Fanless passive cooling
Probe Inputs	Single or dual connections supporting SENSU, SENSU 2, and legacy Amigo probes
Operational Frequencies	Dual/Multiple frequency configuration supporting 5 kHz and 50 kHz
Data Resolution	16-bit analog-to-digital processing
Acquisition/Sampling Rate	High-speed digital capture up to 50,000 samples/second
Encoder Support	2 × axes quadrature encoding input via probe or external I/O connector (Supports 3BZ crack sizing)
