Eddyfi Reddy AC & Tubing ECT

Portable Air Conditioner & Tubing Inspection System

The Eddyfi Reddy® AC & Tubing ECT is the first fully portable, battery-operated, and sealed system designed specifically to streamline the inspection of air conditioners (AC) and standard commercial tubing. Engineered to completely replace legacy, non-waterproof instrumentation, this configuration of the Reddy platform features true plug-and-play compatibility with all standard AC and Eddy Current Testing (ECT) bobbin probes on the market. With integrated automation sequences, an intuitive setup wizard, and built-in reporting tools, it maximizes workflow efficiency for small-to-midsize heat exchangers (HX) and commercial HVAC infrastructure.

Features

Universal Probe Compatibility: Features direct plug-and-play functionality for all commercial AC and ECT bobbin probes without requiring third-party adapters or external absolute reference probes to balance absolute channels.
Automated Acquisition Sequences: Drastically reduces manual errors and inspection times by eliminating the need for foot pedals. The unit automates data logging, file creation, and recording start/stop functions using configurable axial landmarks.
On-the-Fly Field Reporting: Embedded Magnifi® GO software enables users to generate comprehensive inspection reports directly on-site. Reports feature automated tube list generation, localized screenshots, and clear visual graphs like pie charts.
Optimized for HVAC Chiller/AC Units: Highly portable design and rapid setup sequence specifically tailored for smaller heat-exchanger setups found in commercial building management and processing plants.
Rugged, IP65-Class Build: Sealed against water and dust ingress, eliminating the vulnerability to elements typical of desktop-bound competitor units that require continuous external AC power.
Magnifi® CPN Back-Office Compatibility: All field data gathered using the onboard SSD can be easily exported via USB for advanced, off-site data mapping and analysis using industry-standard Magnifi desktop software.

Applications

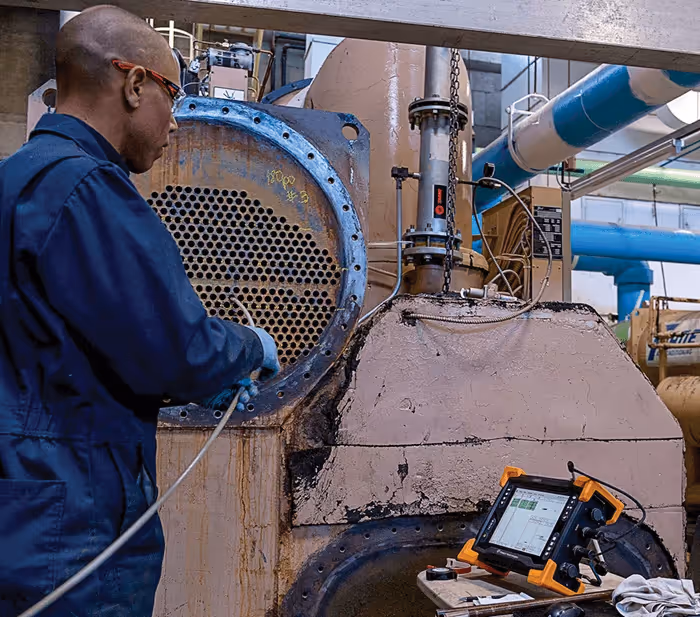

Commercial Air Conditioners & Chillers: Rapid inspection and maintenance testing of internal HVAC condenser and evaporator tube bundles.
Standard Tube Heat Exchangers: Quick wall-loss, pitting, and baseline crack checking across small-to-midsize copper and non-ferrous tubing grids.

Technical Data

Feature / Parameter	Specification Details
Dimensions (W × H × D)	355 × 288 × 127 mm (14.0 × 11.3 × 5.0 in)
Instrument Weight	6.6 kg (14.5 lb)
Dedicated Connectors	4-pin Amphenol ECT Bobbin, 4-pin Amphenol AC, 18-pin Amphenol I/O, and 30-pin Samtec
Display Panel	26.4 cm (10.4 in) optically bonded LCD multi-touchscreen; features non-reflective AR coating, oleophobic anti-fingerprint treatment, and 3 mm (1/8 in) chemically strengthened glass
Onboard Data Storage	Solid-State Drive (SSD), 100 GB capacity
Battery Autonomy	Built-in battery pack with 6 to 8 hours of continuous field operations
Environmental Protection	Fully sealed chassis designed to meet IP65 waterproofing and dust standards
Connectivity Interface	Gigabit Ethernet, Wi-Fi, Bluetooth, HDMI output, and 3 × USB 2.0 ports
