Eddyfi Swift M

Magnetic Flux Leakage (MFL) Data Acquisition Instrument

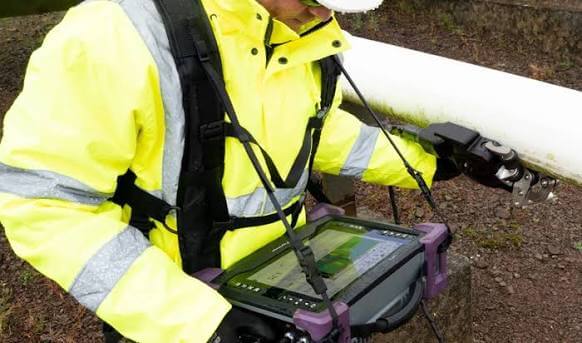

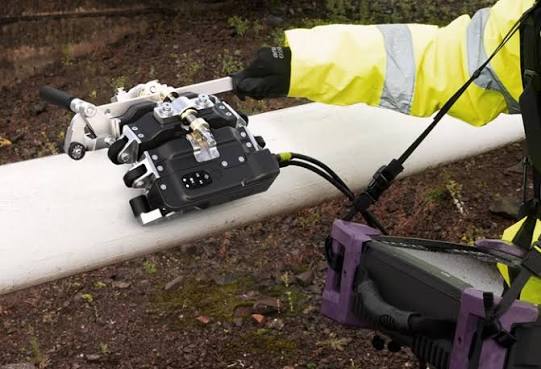

The Swift M is a highly portable, cost-effective Magnetic Flux Leakage (MFL) data acquisition instrument designed for rapid corrosion screening, detection, and mapping. When paired with the Pipescan or Pipescan HD systems, it functions as a rugged, standalone solution for evaluating pipe runs and small-diameter vessels. Encased in a water-resistant IP65 magnesium alloy housing, it provides full data recording, real-time displays, and automated post-inspection reporting tools.

Features

Magnetic Flux Leakage (MFL) Technology: Provides rapid, robust corrosion screening that measures the volume of missing magnetic material without requiring couplant or intensive surface preparation.
High Probability of Detection (PoD): Optimised for precision screening, detecting defects with diameters greater than 1 mm and greater than 20% wall loss when paired with high-resolution scanners like the Pipescan HD.
Adjustable Reporting Threshold: Allows operators to filter out irrelevant signals and focus purely on defects within the defined scope of work. Because the full dataset is recorded, this threshold can be dynamically adjusted post-inspection.
One-Click Automated Reporting: Simplifies data turnaround with an onboard defect analysis tool that allows technicians to generate compliance reports on the go and export them instantly via USB.
Ruggedized Hardware Architecture: Built into an IP65-sealed magnesium alloy casing with 3 mm (1/8 in) chemically strengthened glass to withstand harsh industrial field environments.
Optically Bonded Display: Features a premium 26.4 cm (10.4 in) multi-touchscreen coated with anti-reflective (AR) and oleophobic (anti-fingerprint) layers for clear visibility in any lighting condition.
Hot-Swappable Uptime: Equipped with two hot-swappable lithium-ion batteries that deliver 6 to 8 hours of continuous operation, effectively enabling a full day of field testing.
Modern Interface & Cloud Ready: Standardized with Gigabit Ethernet, Wi-Fi, Bluetooth, and three USB 2.0 ports alongside an internal 100 GB SSD for easy data handling.

Applications

Rapid screening, detection, and mapping of corrosion in pipe runs
Small-diameter pressure vessel and tank inspection
Pitting corrosion detection (down to diameters greater than 1mm)
High-speed wall loss screening (detects greater than 20% wall loss)
In-service pipe inspections at surface temperatures up to 60°C (140°F)

Technical Data

Parameter / Feature	Technical Specification Details
Dimensions (W × D × H)	355 × 288 × 127 mm (14.0 × 11.3 × 5.0 in)
Weight	With batteries: 6.6 kg (14.5 lb) \| Without batteries: 5.7 kg (12.5 lb)
Chassis Volume	13 L (791 in³)
Power Requirements	100–240 VAC, 50–60 Hz
Power Supply Type	Direct VAC line power or onboard rechargeable Li-ion batteries
Battery Life	6–8 hours typical operation (DOT compliant, hot-swappable)
Display Panel	26.4 cm (10.4 in) optically bonded LCD multi-touchscreen with non-reflective (AR) and anti-fingerprint (oleophobic) coatings; 3 mm (0.12 in) strengthened glass
Data Storage	Onboard Solid-State Drive (SSD), 100 GB capacity
Connectivity Interface	Gigabit Ethernet, Wi-Fi, Bluetooth, 3 × USB 2.0
Environmental Protection	Designed for IP65 dust and water resistance; Fanless passive cooling
Operating Temperature	0–40°C (32–104°F)
Operating Humidity	95%, non-condensing
Scanning Capability	Supports scanning speeds up to 1 m/s (3.2 ft/s) without couplant
