FloormapX

Magnetic Flux Leakage (MFL) Array Tank Bottom Scanner

The Floormap®X is an advanced multi-technology Magnetic Flux Leakage (MFL) Array and Surface Topology Air-gap Reluctance Sensors (STARS) tank floor scanner. Serving as the industry standard for large-scale storage tank bottom integrity screening, it provides 100% comprehensive data mapping capable of discriminating between top-side and bottom-side corrosion. Engineered to comply with global regulatory guidelines such as API 653 and EEMUA 159, the FloormapX features motorized active steering to target the critical 12 mm (0.5 in) boundary zone near the tank shell wall, inspecting plates up to 20 mm (0.75 in) thick even through non-magnetic surface coatings.

Features

Multi-Technology Sensor Array: Houses 256 Hall Effect sensors arranged across 64 acquisition channels, featuring 128 multi-orientated MFL sensors and a 64-element STARS matrix.
Patented STARS Top/Bottom Isolation: Integrates Magnetic Field Reluctance technology to instantly differentiate product-side pitting from soil-side corrosion.
High-Flux smartMAGNET™ Engine: Delivers an advanced bridge layout that injects up to 30% more magnetic flux than previous platforms, providing full saturation controls for plate thicknesses between 4 mm and 20 mm (0.157 in to 3/4 in).
Precision Active Steering: Employs motorized steering controls with a simple, push-button auto-straightening toggle, allowing operators to trace annular wall curves smoothly while maintaining a tight 12 mm (0.5 in) dead zone close to the tank shell.

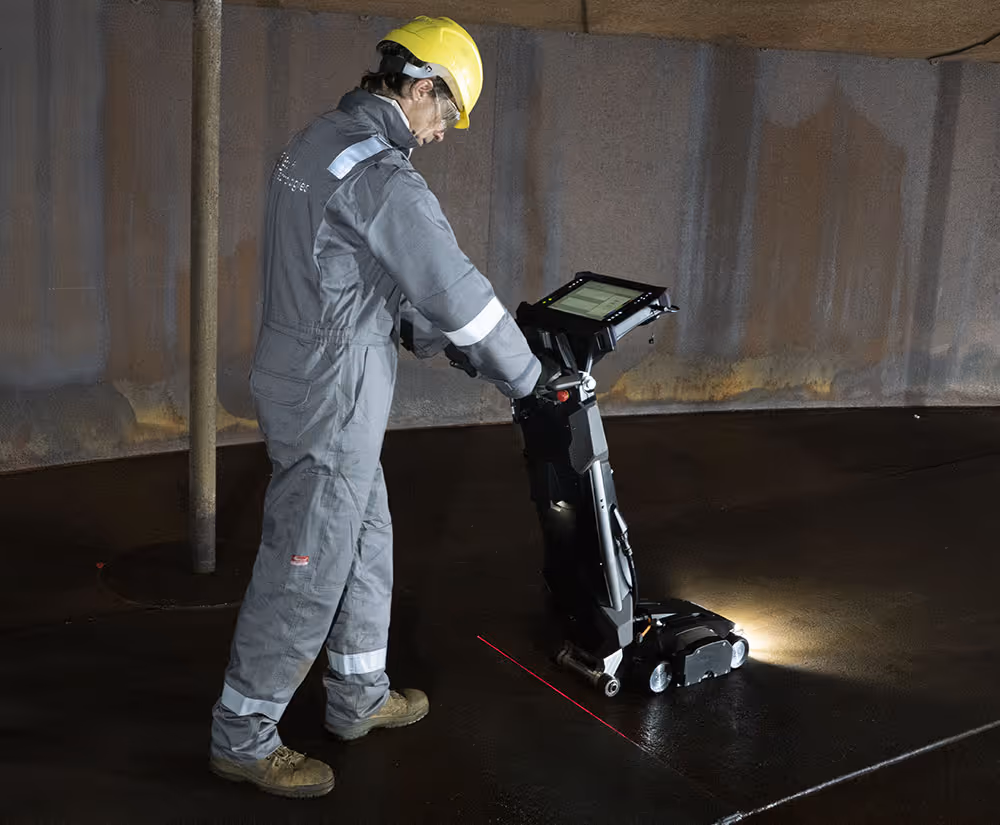

Interactive Live Laser Guide: Projects a laser line directly onto the physical asset surface, fully mirrored within the live tablet C-scan to ensure immediate physical-to-digital defect mapping.
Adjustable Sensor Bridge Height: Leverages a variable-height chassis that can be quickly raised or lowered by the operator to clear undulating plates, lap welds, and patch repairs without stopping.

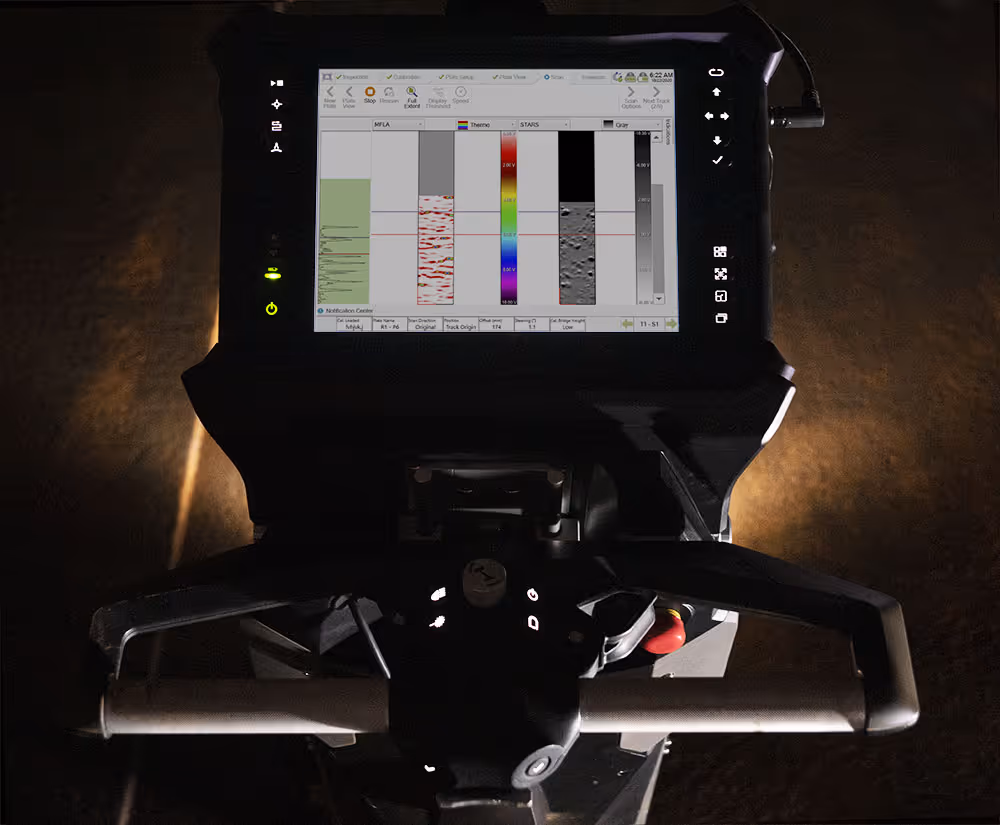

Ruggedized Modular Interface: Built with a detachable, IP65/UL shockproof touchscreen tablet running SIMS GO data collection software, coupled with physical thumb-switch speed throttles and magnet toggle overrides.
API-Compliant Visual Lighting: Includes chip-on-board (COB) front-dimmable focalized LEDs and wide rear arrays to cleanly expose surface flaws and structural barriers.
Dynamic Easy-break™ Release: Uses an ergonomic lever design that enables the operator to mechanically split and disengage the intense magnetic attraction from the floor safely during tight space maneuvering.

Inspection Modes

Scan Configuration	Functional Profile & Operational Use Case
Comprehensive Mapping	Complete structural data logging. Saves full auditable datasets for subsequent multi-view evaluation in SIMS PRO software.
Freescan™ Mode	Rapid detection screening. Allows high-speed profiling across plates in any path orientation without grid calibration or positioning restrictions.
Pause on Defect	Real-time marker sequence. Halts structural progress natively for precise localized flaw mark-up or UT validation without disrupting file continuity.

Applications

High-probability full tank floor integrity mapping and screening
Real-time top-side vs. bottom-side surface pitting discrimination
Annular plate and critical zone tank border screening
Low-threshold flaw assessment down to 10% material loss for inspection interval planning
Through-coating corrosion profiling under protective layers up to 10 mm (0.394 in) thick
Under-pipework low-clearance obstacle scanning via a tilting handle system

Technical Data

Parameter / Feature	System Operational & Hardware Details
Operating Principle	MFL Array (64 Channels) & Magnetic Field Reluctance (STARS)
Primary Capture Resolution	Isolates standalone defect indicators as small as 2 mm (0.08 in) in diameter
Functional Drive Velocity	Motorized variable travel speed ranging from 0.5 m/s up to 1.0 m/s
Maximum Scan Swath	300 mm (12 in) single-pass footprint width
Peak Scanning Productivity	Maps surface areas up to 263 m²/h (2831 ft²/h)
Tracking Accuracy Offset	Positional precision tracking within ±0.04% (±3 mm over an 8-meter run)
Minimum Man-way Entry Size	Collapsible frame design fits through cleanouts down to 500 mm (20 in)
Operational System Weight	57.5 kg (126 lbs) total scanner framework weight
Battery Power Architecture	Included 3-battery package providing 4 hours of continuous operational runtime per cell
