Lyft

Advanced Pulsed Eddy Current (PEC) System

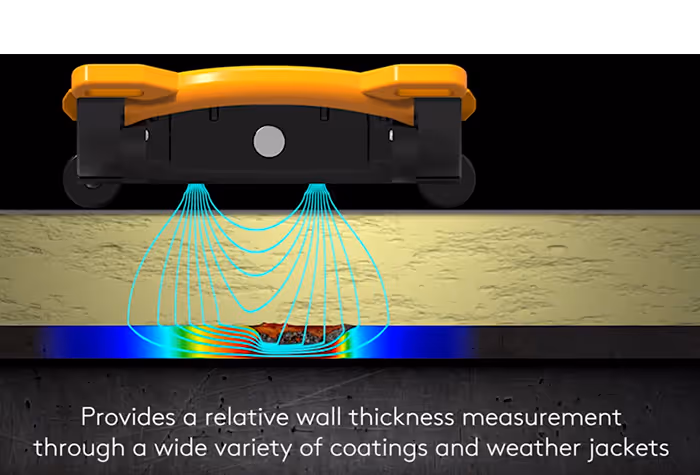

The Eddyfi Lyft is a high-performance, ruggedized Pulsed Eddy Current (PEC) and Pulsed Eddy Current Array (PECA) system designed specifically for Corrosion Under Insulation (CUI) and Fireproofing (CUF) integrity management. It eliminates the massive costs of insulation removal by scanning directly through thick insulation, non-conductive coatings, and various weather jackets (aluminum, stainless steel, and galvanized steel). Driven by advanced automation algorithms, Lyft provides real-time C-scan imaging to accurately assess remaining wall thickness on in-service assets.

Features

SmartPULSE™ Automation: Eliminates operator-dependent tuning by automatically optimizing pulser and receiver settings (gain, duration, filters, and time gates) for reliable, repeatable wall thickness data.
Compensated Wall Thickness (CWT) Tool: A unique tool that overcomes the typical PEC limitation of undersizing small defects by isolating specific defect signatures in the A-scan signal.
Advanced Analytics Suite: Utilizes Tau-scan™ and PermTool™ via the Lyft CPN desktop software to provide advanced signal curves, deepening data analysis and verification confidence.
SurfacePro 3D Integration: Works seamlessly with visualization software to automatically map, stitch, and overlay color-coded C-scan inspection maps into interactive 3D components.
Ruggedized Field Design: Built to an IP65 rating with a tough magnesium alloy casing that cools passively without external air exchange. Features a glove-friendly, optically bonded 10.4-inch touchscreen.
Modern Cloud Integration: Equipped with Windows-embedded capabilities allowing field technicians to utilize OneDrive file sharing, Zoom team collaboration, and automated reporting via the Eddyfi mobile app.

Applications

Insulated Piping & Vessels: Scanning carbon steel structures without stripping insulation or fireproofing layers.
Weather Jacket Penetration: Inspecting through protective metal covers, including stainless steel up to 1.5 mm and aluminum/galvanized steel up to 1.0 mm.
Specialized Infrastructure: Deep-penetration testing for underwater/splash zone structures, storage tank annular plates (using an ultra-thin 4.8 mm titanium blade probe), and ship deck plates under protective tiles.

Technical Data

Feature / Parameter	Specification Details
Dimensions (W × H × D)	355 × 288 × 127 mm (14.0 × 11.3 × 5.0 in)
Instrument Weight	6.6 kg (14.5 lb)
Data Channels	7 Channels (Grid/Dynamic Array support)
Display	26.4 cm (10.4 in) Multi-touch screen; non-reflective, anti-fingerprint oleophobic coating, 3 mm chemically strengthened glass
Connectivity	Gigabit Ethernet, Wi-Fi, Bluetooth, 3 × USB 2.0
Dynamic Scan Performance	Up to 15 points/second acquisition; typical scan speed of 75 mm/s (3 in/s)
Insulation / Liftoff Range	Supported liftoff from 0 mm up to 300 mm (0 to 12 in) depending on the probe model (e.g., PEC-152G2)
Wall Thickness Range	Nominal carbon steel thickness up to 102 mm (4.0 in)
Flaw Threshold Sensitivity	Detects remaining wall thickness changes down to 15% from nominal; smallest detectable volume is 15% of the probe’s footprint
Operating Temperature Range	Carbon steel structure limits: -150°C to 500°C (-238°F to 932°F); Direct jacket contact: up to 70°C (158°F); With probe shoe: up to 120°C (248°F)
Power & Battery	Dual hot-swappable battery configuration for extended field testing
