Pipescan HD

High-Resolution MFL Pipeline Inspection Scanner

The Eddyfi Pipescan HD is the highest resolution Magnetic Flux Leakage (MFL) scanner on the market, specifically engineered for the rapid detection, mapping, and screening of corrosion and pitting in ferrous pipes and surfaces. Designed to optimize workflow efficiency, the scanner provides a recordable, verifiable dataset that can be analyzed and converted into field compliance reports on the spot. With simple tool-less curvature adjustments and no requirement for liquid couplants, the Pipescan HD maximizes the productivity of pipeline integrity assessment campaigns.

Features

Market-Leading MFL Resolution: Combines a high-density array of Hall Effect sensors with a tight 7 mm channel spacing to produce crystal-clear C-scan imaging and an exceptional Probability of Detection (PoD).
Couplant-Free Deployment: Operates entirely dry without liquid couplants or complex gate/ultrasonic settings, requiring minimal surface preparation for rapid in-service screening.
Single Curvature Adjustment Tool: Features a unique, rapid-adjustment mechanism that allows a single scanner head configuration to be easily curved to match changing pipe shapes or flattened for tank wall and vessel scans.
Adjustable Post-Inspection Thresholds: Full raw data recording allows engineers to adjust evaluation and reporting gates dynamically after the scan is complete, ensuring filtering can be tailored to the precise work scope.

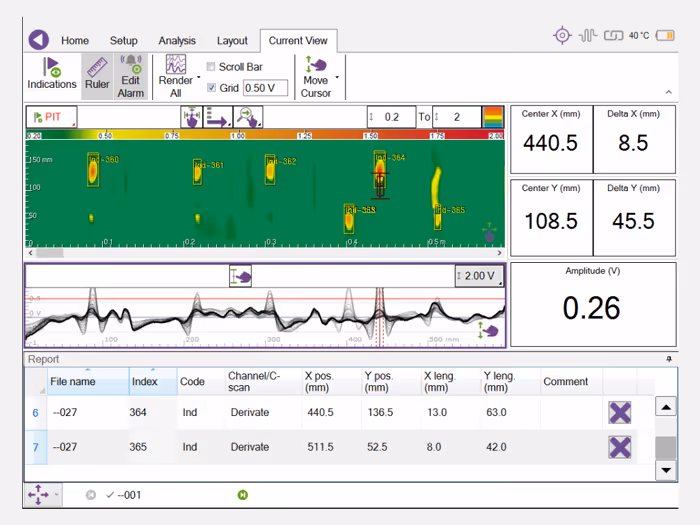

On-the-Go Reporting: Leverages a one-click reporting framework via connected data acquisition systems. Inspections can be analyzed on the fly, meaning when the scanning run finishes, the report is complete and ready for USB distribution.
Compatible Acquisition Platforms: Directly pairs with the dedicated, rugged Swift M MFL acquisition instrument, as well as the multi-technology Reddy (32M) portable platform.
IATA Compliant Transit: Shipped in a specialized transit case that conforms to strict IATA safety requirements for transporting magnetized or magnetizable field materials safely.

Applications

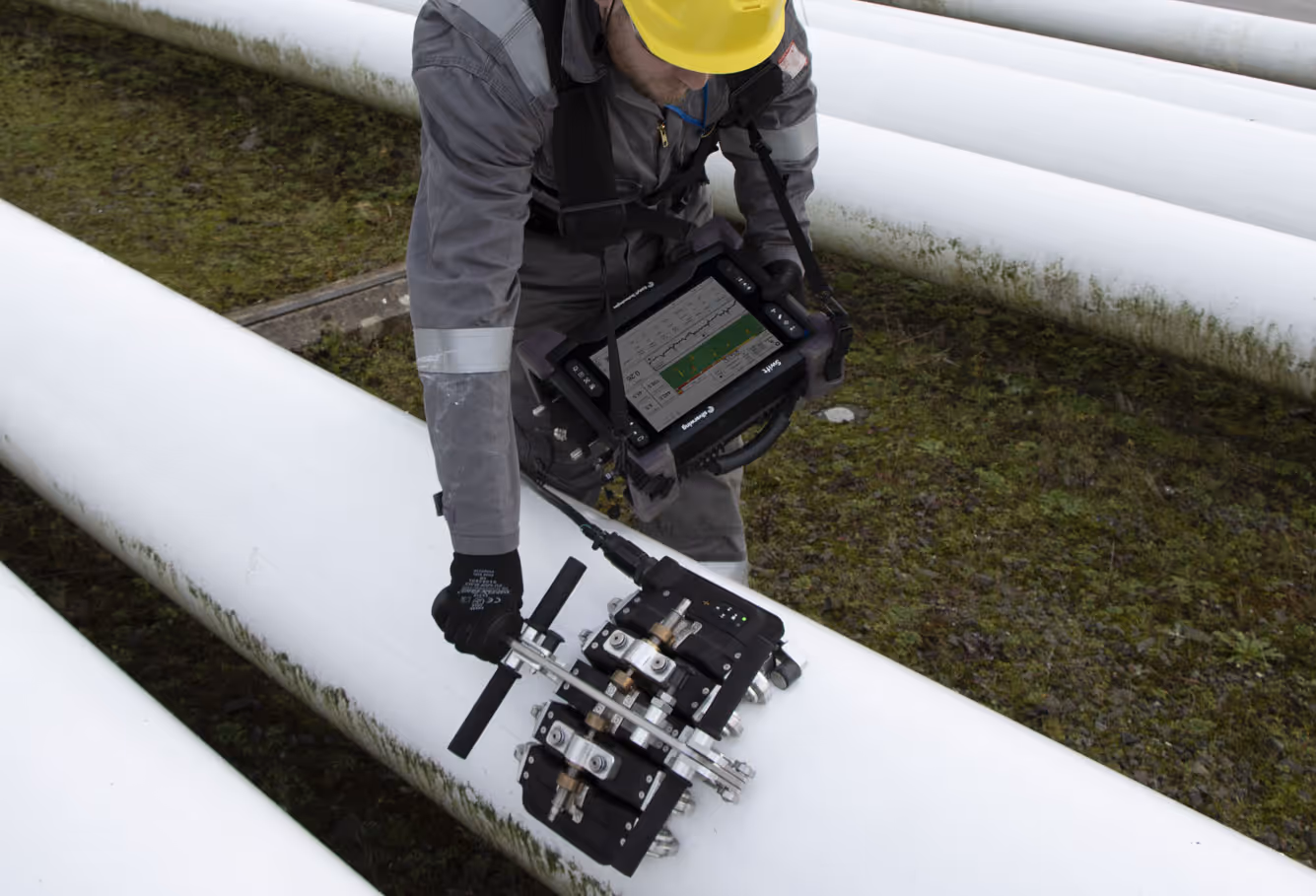

Distribution, gathering, feeder, and transmission pipelines
Manifold lines
Dead legs
Small-diameter vessels
Jetty lines
Condensate terminal pipework
Service water systems
Fire protection systems
Coal-fired power plant boiler pipes

Technical Data

Parameter / Feature	Technical Specification Details
Technology	High-Density Magnetic Flux Leakage (MFL) using Hall Effect Sensors
Method of Propulsion	Hand Push / Manual Scan; operational speeds up to 1 m/s (40 in/s)
Through-Coating Capacity	Inspects through up to 6 mm (0.24 in) of non-magnetic coatings or paint
Smallest Detectable Defect	Identifies pitting and volumetric flaws from Ø >2 mm and down to 10% wall loss
Maximum Surface Temperature	Rated for in-service components up to 60°C (140°F)
Sensor Channel Spacing	Uniform 7 mm (0.27 in) spacing between sensor elements
Connecting Interface Cable	5 meter (15 feet) heavy-duty standard tether cable

Model Code	Outer Diameter (OD) Range	Max Steel Wall Thickness	Channel Count	Sensor Weight
PS-HD-MFL-127XFLAT	127 mm (5.0 in) to Flat Surfaces	Up to 12.7 mm (0.500 in)	27 Channels	13.4 kg (30.0 lbs)
PS-HD-MFL-73X127	73 mm to 127 mm (2.875 in to 5.0 in)	Up to 8.56 mm (0.337 in)	17 Channels	9.3 kg (20.5 lbs)
PS-HD-MFL-48X63	48 mm to 64 mm (1.90 in to 2.50 in)	Up to 6.05 mm (0.238 in)	9 Channels	5.5 kg (12.0 lbs)
