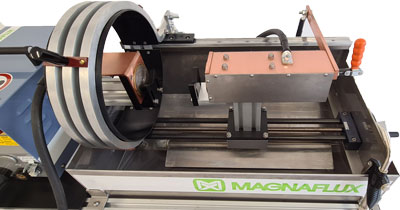

Ferroflux 400

Magnetic test bench for small parts

The Ferroflux 400 is a robust magnetic particle inspection bench tailored for small-part testing (up to 400 mm in length) in either batch or random workflows. It delivers sequential transverse and longitudinal crack detection through wet continuous inspection, with integrated high-current switching, liquid circulation, and optional UV lamp connectivity—providing a dependable, high-throughput solution for precise defect identification in ferrous components.

Features

Stable aluminum frame with horizontal hand-lever clamping
Exchangeable 80 mm copper contact pads for smooth part handling
Moveable, insulated magnetizing coil (≈340 mm clearance)
Manual high-current switch for coil and current flow control
Stainless-steel liquid tray with an integrated 8 L test tank and circulation pump
Compatible with oil- and water-based inspection media
Top-ounted storage area for external power pack
Built-in socket for UV lamp
Supplied with high-current cables and foot switch for power pack operation
Solid state circuitry increases lifetime and performance of machinery

Applications

Fatigue-crack detection in small ferrous parts
Quality assurance for machined and fabricated components
Wet-continuous MPI workflows
Critical part inspection across aerospace, automotive, oil & gas, and heavy industry

Technical Data

Specification	Details
Max Part Length	400 mm
Coil Clearance	~340 mm
Media Tank Capacity	Approx. 8 L
Frame Material	Aluminum
Contact Pads	Ø 80 mm copper pads
Liquid Handling	Stainless steel tray, pump-assisted
Power Pack	External high-current supply (various options)
Current Switching	Manual high-current switch
Extras	UV lamp socket, storage shelf, foot switch
