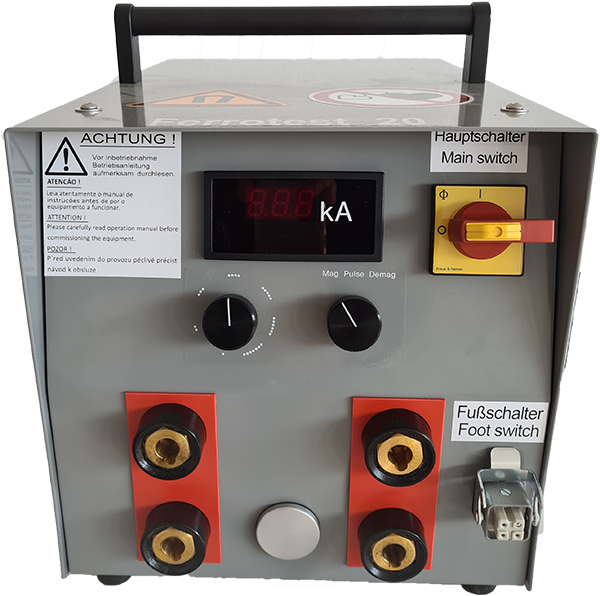

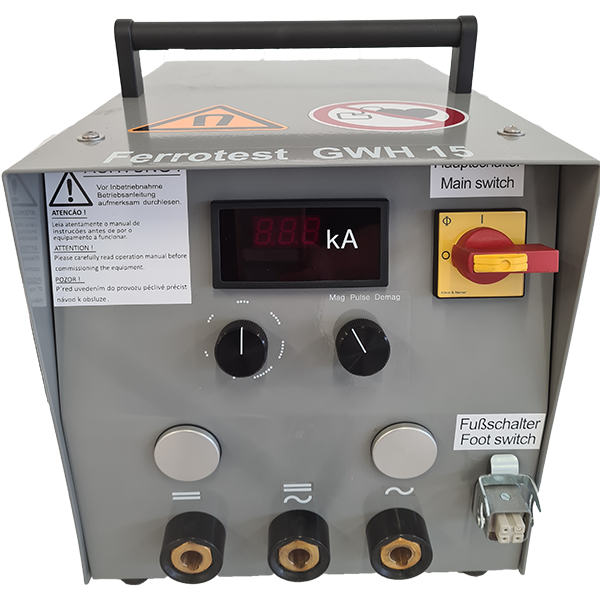

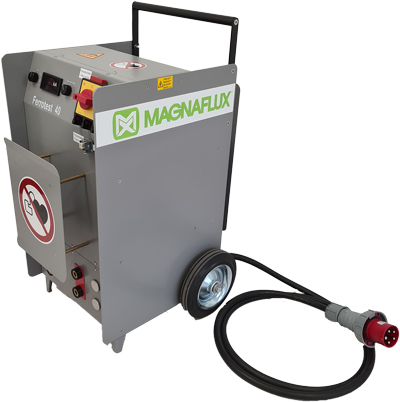

Ferrotest Mobile Power Packs

Mobile Power Packs

The Magnaflux Ferrotest series offers rugged, mobile power packs that deliver high-current AC (1,000–7,100 A) and half-wave DC (up to 5,000 A) for on-site magnetic particle inspection of large or fixed components. Featuring constant-current and impulse modes, fast current regulation, and AC decay demagnetization, they support efficient, reliable defect detection in heavy industrial application

Features

AC output range: 1,000 – 7,100 A
DC output range: 950 – 5,000 A
Constant-current via foot or hand switch, ramping in ~200 ms
Impulse magnetization mode with 1 s ON / 1 s OFF cycle
Demagnetization current ramp-down in ~600 ms
Portable, mobile design for field use on large or fixed equipment

Applications

On-site inspection of heavy machinery and infrastructure
Weld and crack testing in pipelines and pressure vessels
Quality assurance for large forgings and castings
Field maintenance of rail, bridge, and structural steel
Mobile NDT for power generation and petrochemical sectors

Technical Data

Parameter	Ferrotest (M‑Series)
AC current range	1,000–7,100 A
DC current range	950–5,000 A
Constant-current ramp-up	~200 ms
Impulse mode	1 s ON / 1 s OFF
Demagnetization	AC decay in ~600 ms
Operation mode	Foot or hand switch
Portability	Mobile field unit
Standards compliance	DIN EN ISO 9934‑3, EN 60204‑1
