Krautkrämer CL Go+

Micro-meter precision in a rugged package

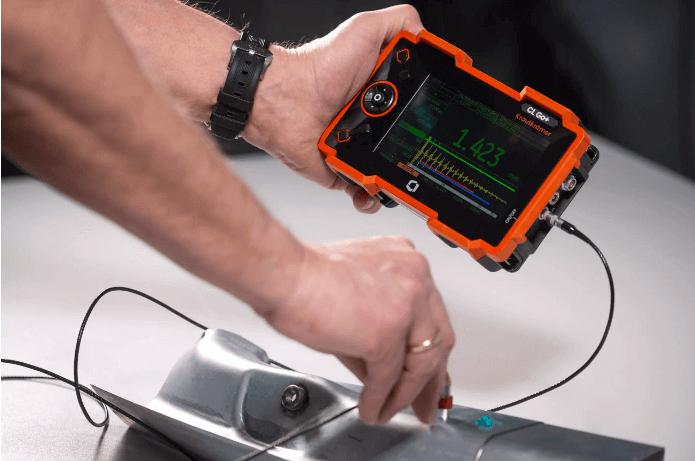

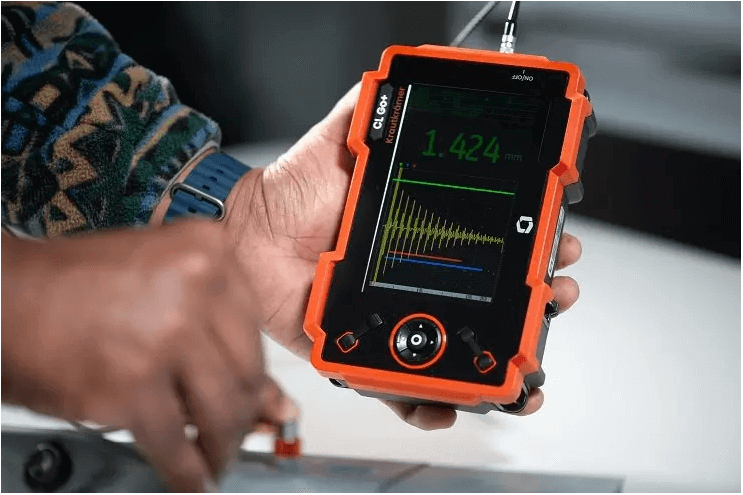

The Krautkrämer CL Go+ precision thickness gauge is a versatile tool in a compact and rugged package. With its intuitive menus and easy-to-use switch pad control, users can focus to make best use of its various features. CL Go+ also boasts powerful data management capabilities, allowing users to store and analyze inspection data with ease.

Features

NEXT LEVEL USER EXPERIENCE: With its bright, large color display, lightweight design, and intuitive navigation, the CL Go+ is designed for single-handed, ambidextrous operation and maximum readability.
CONFIDENCE: Advanced digital signal processing techniques and automatic gain control provide stable readings under various conditions.
BRIDGING EXPERTISE GAPS: Dual-mode functionality features Inspector mode for novices and Expert mode for seasoned professionals.
VERSATILE: The device efficiently measures a variety of materials, making it suitable for components utilized in various industries.

Applications

Castings
Stamped Metal components (Aluminum, Steel, Copper, and Bronze)
Automotive
Aviation
Aerospace

Technical Data

Features
Display	5 inch, 800 × 480 pixels, 108 × 65 mm (W x H), > 200 cd/m2
Size (W x H x D)	175 × 111 × 50 mm (W × H × D)
Weight	850 g with battery
Protection class	IP 67
Operating temperature	0 – 55 °C
Battery	Li-Ion, rechargeable, > 8 hours operation time
Power adapter / charger	100 – 240 V AC, 50/60 Hz
Probe connector	Dual Lemo-00 (T/R)
Datarecorder	100.000 readings per file. Multiple files can be stored on SD card 8 file formats, Attachment of A-Scan, B-Scan and micro grid
Pulser	120 – 250 V, Spike wave, Automatically matched to probe
Puls Repetition Frequency	4, 8 or 16 Hz selectable
Receiver	110 dB dynamic, automatic gain control, Manual –high, -low, -auto
Measurement range	0,4 – 14.000 m/s (0.01 – 551 “)
Units	mm, inch, µs
Digital Display resolution	0,01 mm or 0,1 mm (0.001” or 0.01”) selectable
Measurement techniques	Zero crossing, IP to 1st echo, multi echo, TopCoat, Auto-V
Calibration	One-point, Two-point Auto or Manual On-block and Off-block Zero Automatic V-Path correction
Display mode	Thickness and A-Scan, Temperature corrected thickness, B-Scan, Min/Max capture, Differential
Compliance	EN 61010,EN 61326-1, EN 12668, ASTM E 1324, E317, ANSI/NCSL Z 540-1-1994 MIL-STD 45662A, MIL-STD 2154, EN 15317
