Magnetic Coils

Ensure your mag bench fits every part you test

Magnaflux Magnetic Coils are designed to provide efficient and reliable magnetization for magnetic particle inspection (MPI) applications. These coils are essential for creating the necessary magnetic fields to detect surface and near-surface defects in ferrous materials. They are compatible with various MPI systems and are available in different configurations to suit specific inspection needs.

Features

Available in multiple sizes and configurations to accommodate different part sizes and shapes.
Designed for use with both AC and DC magnetic particle inspection systems.
Durable construction to withstand the rigors of industrial environments.
Easy integration with existing Magnaflux MPI equipment.
Provides consistent and uniform magnetic fields for reliable defect detection.

Applications

Inspection of shafts, spindles, and similar components.
Magnetization of parts for surface crack detection.
Quality control in manufacturing processes.
Maintenance and repair of industrial equipment.
Compliance with industry standards for non-destructive testing

Technical Data

Model	Type	Coil Turns	Clearance Diameter	Part Number
L-10 Electromagnetic Coil	Portable Coil	Not specified	Up to 250 mm	630516

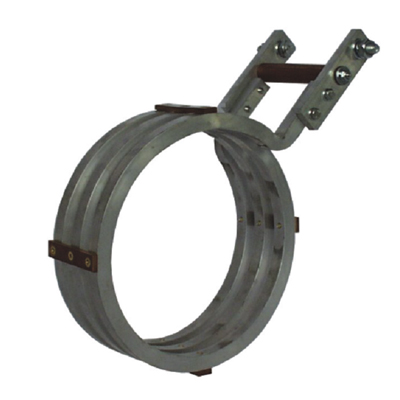

Closed Magnetising Coil	Fixed Coil	3	200 mm	129001
			350 mm	129002
Hinged Magnetising Coil	Fixed Coil	3	200 mm	129020
			350 mm	129021
			500 mm	129022
