Check and measure magnetism during inspection

Magnaflux offers a range of instruments designed to measure and verify magnetic field strength and characteristics during magnetic particle inspection (MPI). These tools ensure compliance with industry standards and maintain the effectiveness of MPI processes.

Features

Measures true RMS of asymmetric magnetic fields (DC and AC)
Tangential Hall effect probes for surface field measurements
Data logging capability via RS-232 interface
Durable, IP65-rated housings for harsh environments
Measures magnetizing current output with digital ammeters and shunt kits
Quick break testers to verify shot duration and voltage
Gauss meters for detecting residual magnetism with calibrated or disposable options
ASME-compliant field indicators for magnetic field strength and direction

Applications

Magnetic particle inspection system verification
Equipment calibration and maintenance
Ensuring compliance with ASME, ASTM, and ISO standards
Residual magnetism measurement in ferromagnetic components
Quality control in manufacturing and service environments

Technical Data

Instrument	Measurement Type	Key Features	Measurement Range / Accuracy

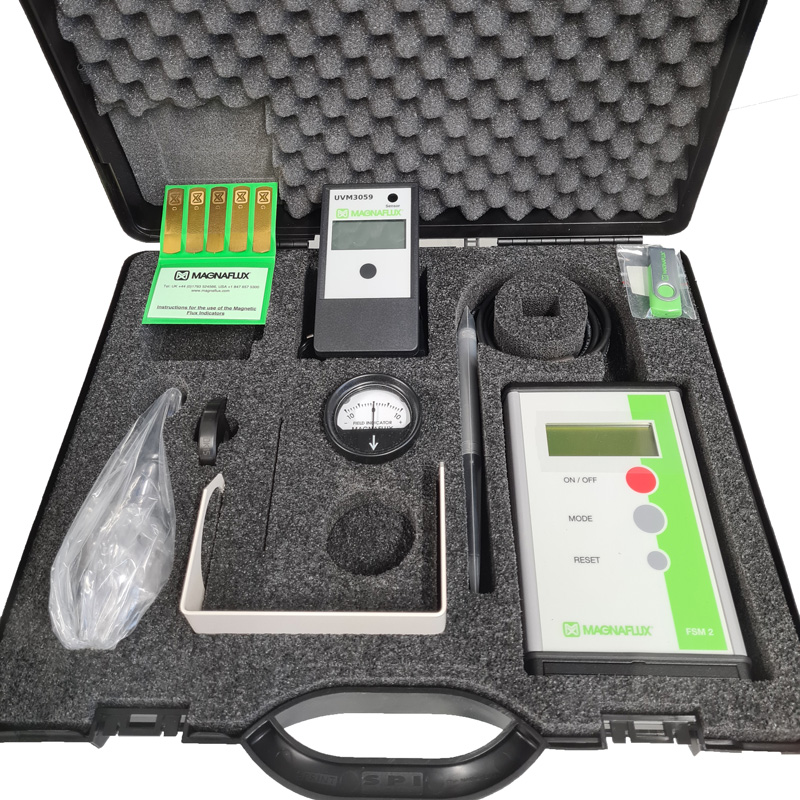

FSM-2 Magnetic Field Meter	True RMS magnetic field (AC/DC)	Hall effect probe, RS-232 logging	Various gauss ranges; precise readings

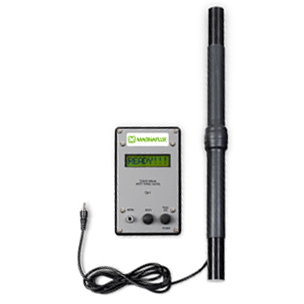

QB2-Plus Quick Break Tester	Shot duration and voltage	Compatible with AC/DC MPI systems	Measures shot time and quick break voltage

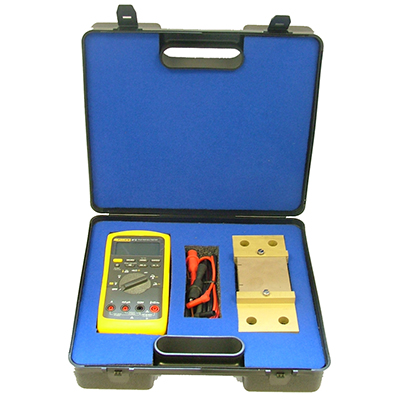

Ammeter Shunt Kit	Magnetizing current	Digital ammeter, calibrated shunt	Up to 6,000 A AC / 10,000 A DC
Gauss Meters	Residual magnetism	Calibrated and non-calibrated types	10 Gauss to 20 Gauss ranges
ASME Field Indicator	Field strength and direction	Visual field direction and strength	Designed per ASME code
