MF-655 WB

Fluorescent Magnetic Liquid Concentrate

MF-655 WB is a highly sensitive, water-based fluorescent magnetic particle concentrate designed for wet method magnetic particle inspection (MPI). It produces bright green fluorescent indications under UV light to detect fine surface and slightly subsurface discontinuities in ferrous materials. The formulation includes corrosion inhibitors and water conditioners to protect parts and equipment during inspection.

Features

High sensitivity for detecting fine discontinuities
Excellent particle mobility and even suspension
Stable dispersion for consistent performance
Superior surface wetting for clear indications
Non-foaming to reduce maintenance
Free from silicone, chromates, and nitrates
Non-hazardous and safe for handling
Easy post-test cleanup

Applications

Post-machining and heat treatment inspections
Critical safety and high-stress components
High-volume testing environments
Inspection of machined parts with smooth finishes
Suitable for use with varying water qualities

Technical Data

Specification	Details
Formulation	Wtaer-based fluorescent magnetic particle concentrate
Carrier Fluid	Water
Required Equipment	Magnetizing device, UV light source

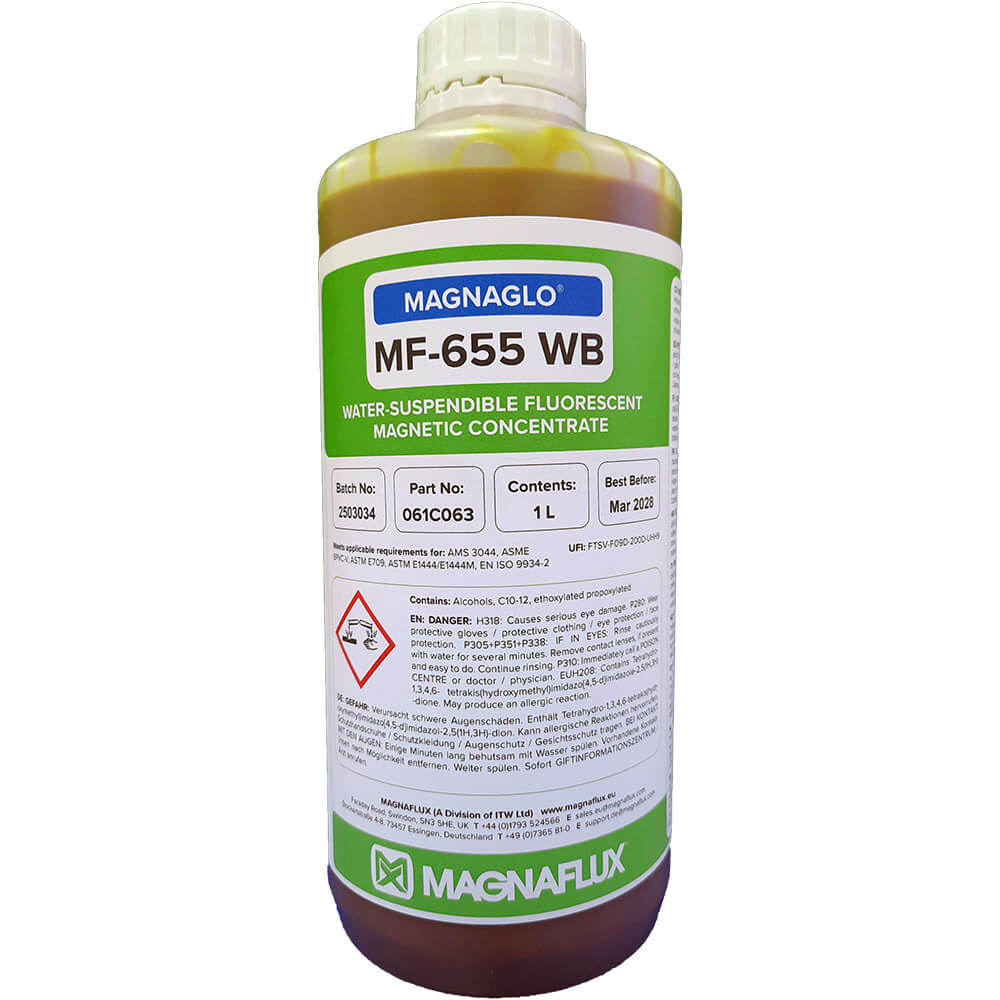

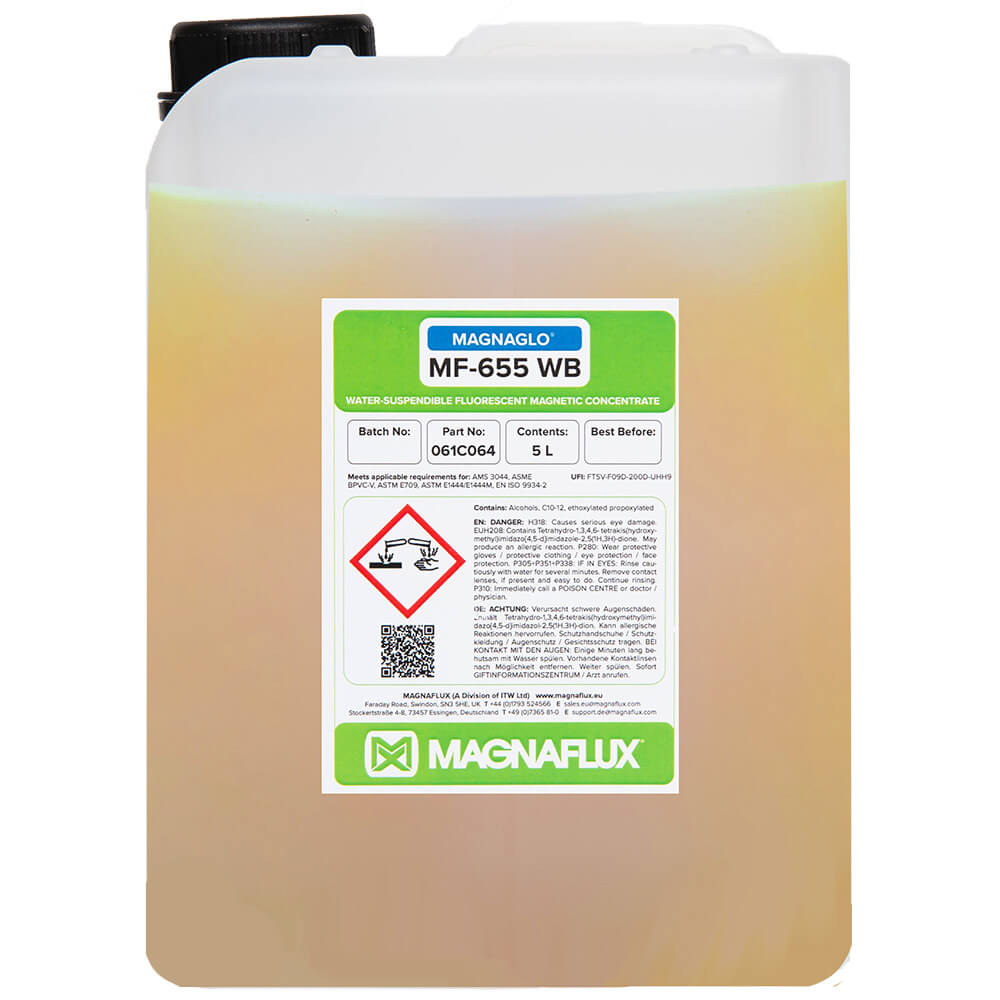

Packaging Options	12 × 1 L bottles, 4 × 5 L containers
Compliance Standards	Meets relevant MPI industry standards
