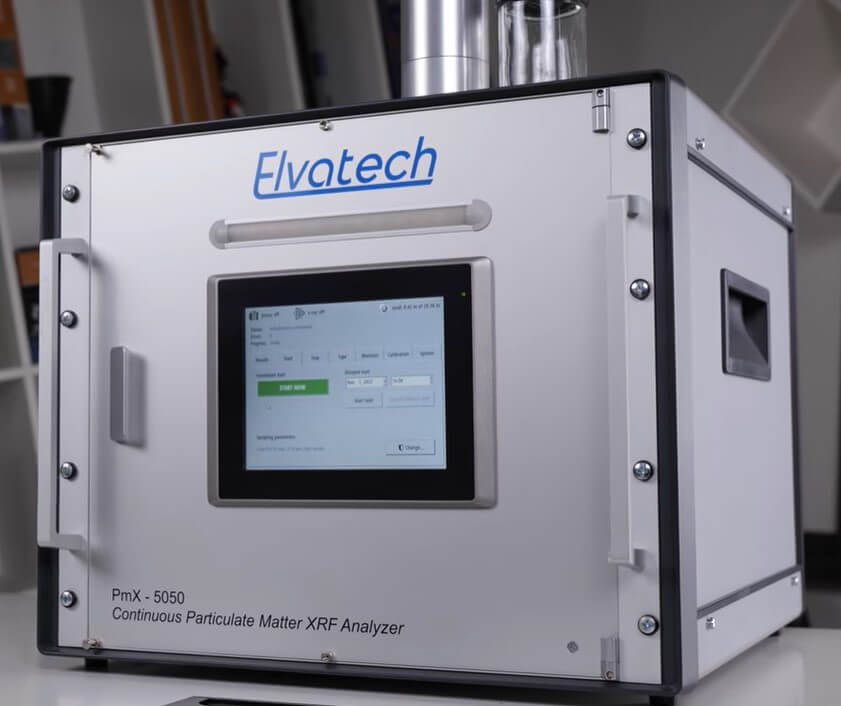

PmX-5050

Continuous Particulate Matter Monitoring System

PmX-5050 is a fully stand-alone device for continuous analysis of particulate matter (PM) elemental composition, intended for online elemental analysis of heavy metals in the ambient air.

Previous solutions for PM monitoring were able to analyze only the total amount of particles in the air. But for a complete understanding of health impact and air pollution source elemental analysis of PM is necessary.

PmX-5050 is a fully stand-alone device for continuous analysis of particulate matter elemental composition.

Thanks to the automatic correction of ambient temperature, humidity and pressure influence, and automatic calibration adjustment, ElvaX PmX-5050 offers the highest long-term stability of the analysis!

Features

Continuous analysis of PM elemental concentration
Full compliance with the US EPA IO-3.3 standard
Up to 3 months of stand-alone continuous operation
Automatic correction of ambient temperature, humidity and pressure influence n Heated operating plate for prevention of condensing
Simple calibration procedure and tape replacement

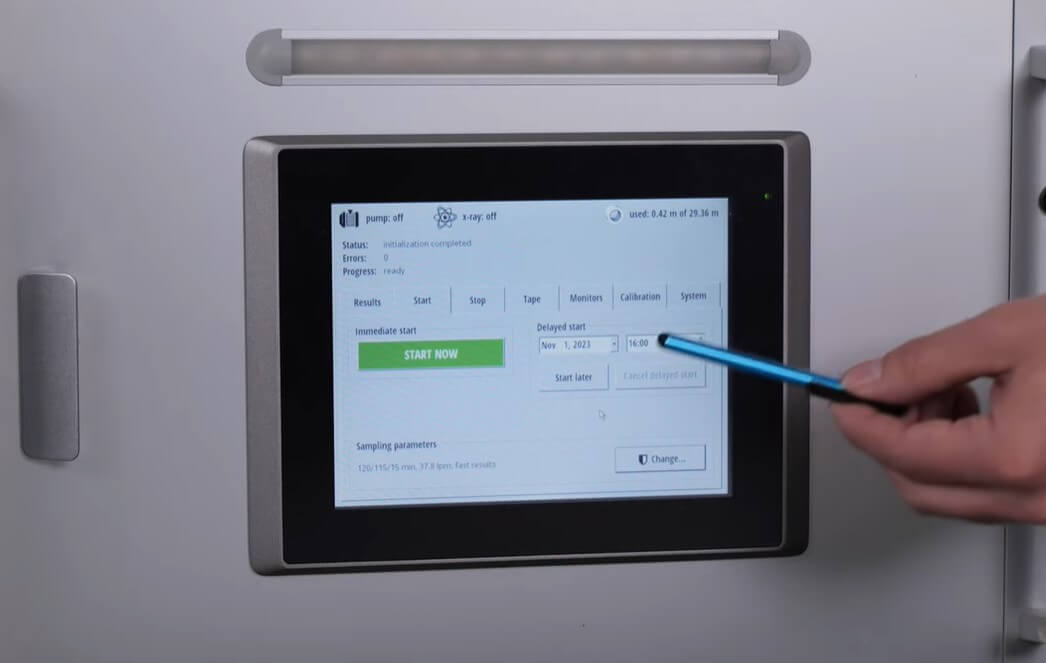

Intuitive software interface

Applications

Environmental monitoring

Technical Data

General
- Applicable standard: USA EPA IO-3.3
- Flow rate: (0~20) L/min
- Filter tape: PTFE
- Tape replacement interval: up to 3 months
- Power supply: AC 100V~240V, 50/60 Hz
- Power consumption: 200 W
- Dimensions (w/o sampling inlet): 500mm * 500mm * 450mm
- Weight (w/o sampling inlet): 40 kg
- External connection: USB, Ethernet
XRF unit
- X-Ray tube: 50W, 50kV, 3mA
- Primary beam filter changer: 5 positions, automatic
- X-Ray detector: SDD
- Sampling and analysis times: 3 ~ 1440 min
- Measurement range: 0 ~ 200 µ g/m3
- Detection limit: 0.1 ng/m3 for most elements
- Calibration samples: SS316 for energy calibration, NIST 2783 for concentration calibration, other samples(optional)
Environmental Conditions
- Ambient temperature: 0 ° C ~ 40 ° C
- Humidity: 0 ~ 80%
- Altitude: up to 1000m
