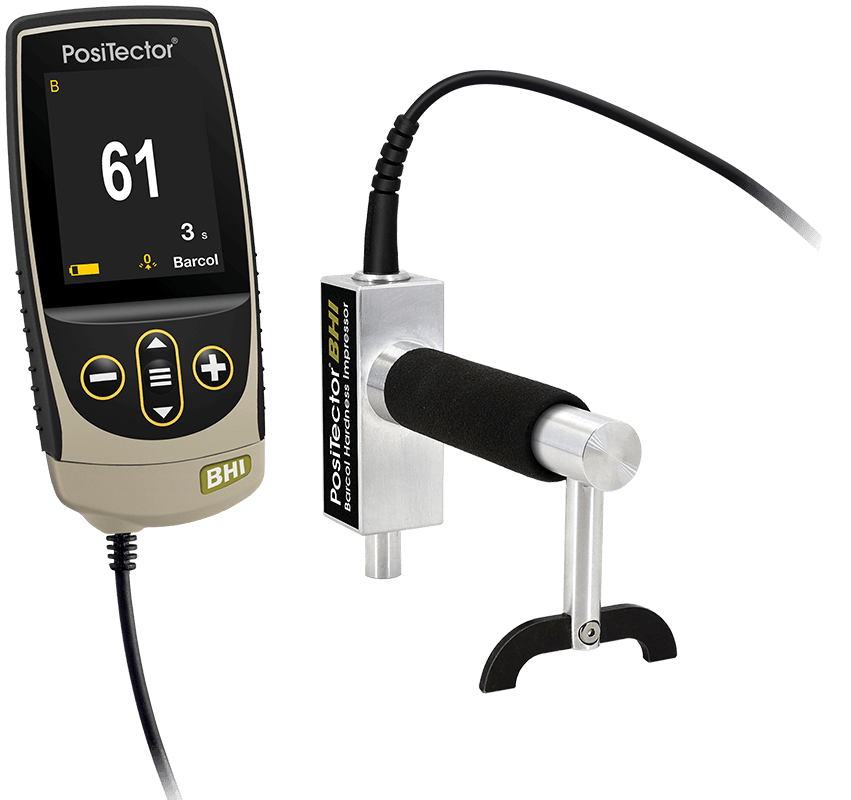

PosiTector BHI

Barcol Hardness Impressor

The PosiTector BHI is a portable electronic Barcol hardness tester designed for measuring the indentation hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and harder plastics like fiber-reinforced composites. Featuring a large 2.8″ impact-resistant color touchscreen, it offers user-adjustable measurement time, real-time statistical display, and a Hi-RES mode for enhanced precision. The device is housed in a weatherproof, dustproof, and water-resistant (IP65-rated) enclosure, ensuring durability in various industrial environments. It supports USB, Wi-Fi, and Bluetooth connectivity, facilitating seamless data transfer and integration with PosiSoft software for comprehensive data analysis and reporting.

Features

Measures hardness of soft metals and harder plastics
Large 2.8″ impact-resistant color touchscreen
User-adjustable measurement time with on-screen countdown
Hi-RES mode for increased resolution
Real-time statistical display (average, standard deviation, min/max, number of readings)
HiLo alarm alerts when measurements exceed user-specified limits
Screen capture functionality to save up to 100 images
Weatherproof, dustproof, and water-resistant (IP65-rated)
USB, Wi-Fi, and Bluetooth connectivity

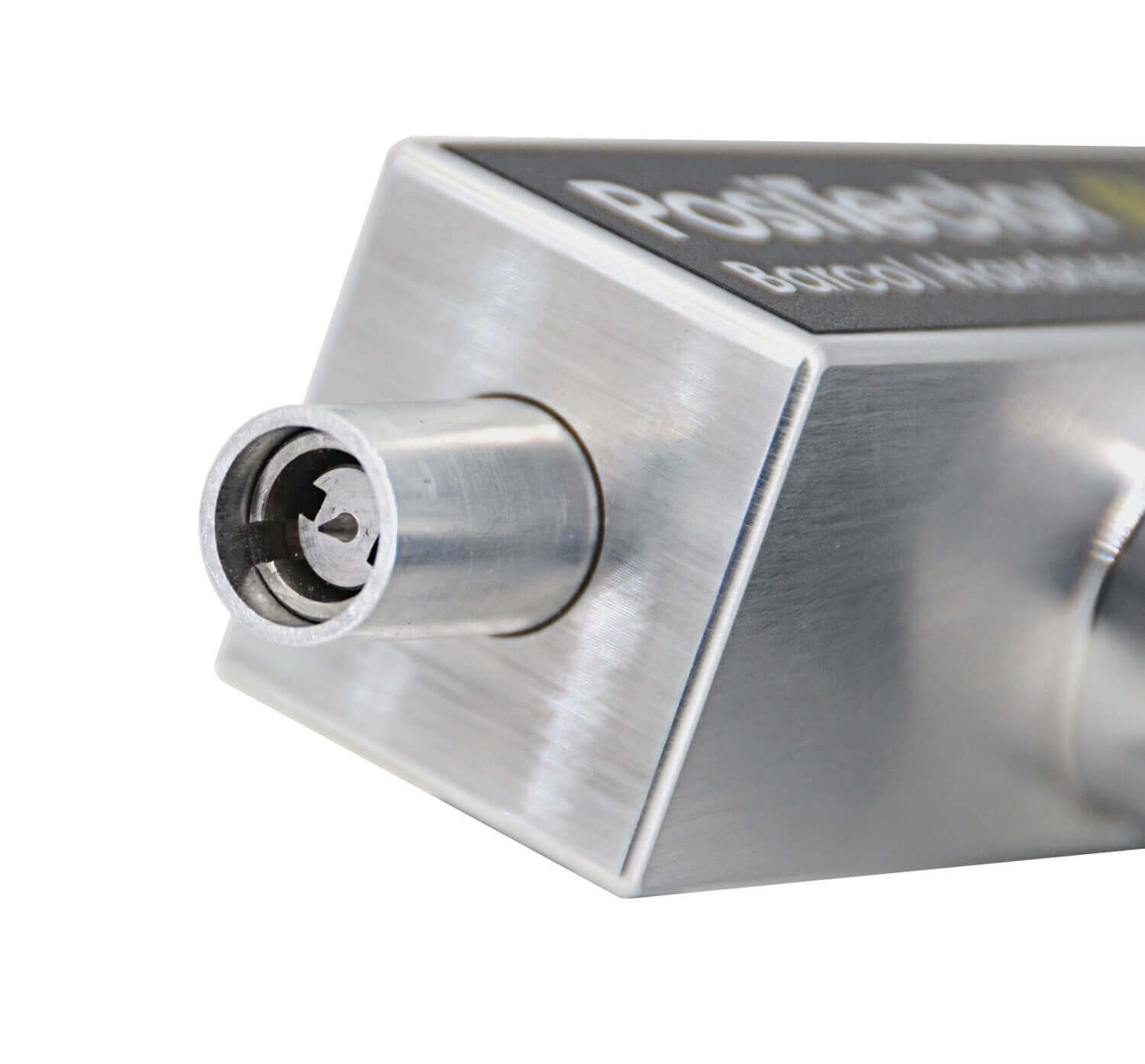

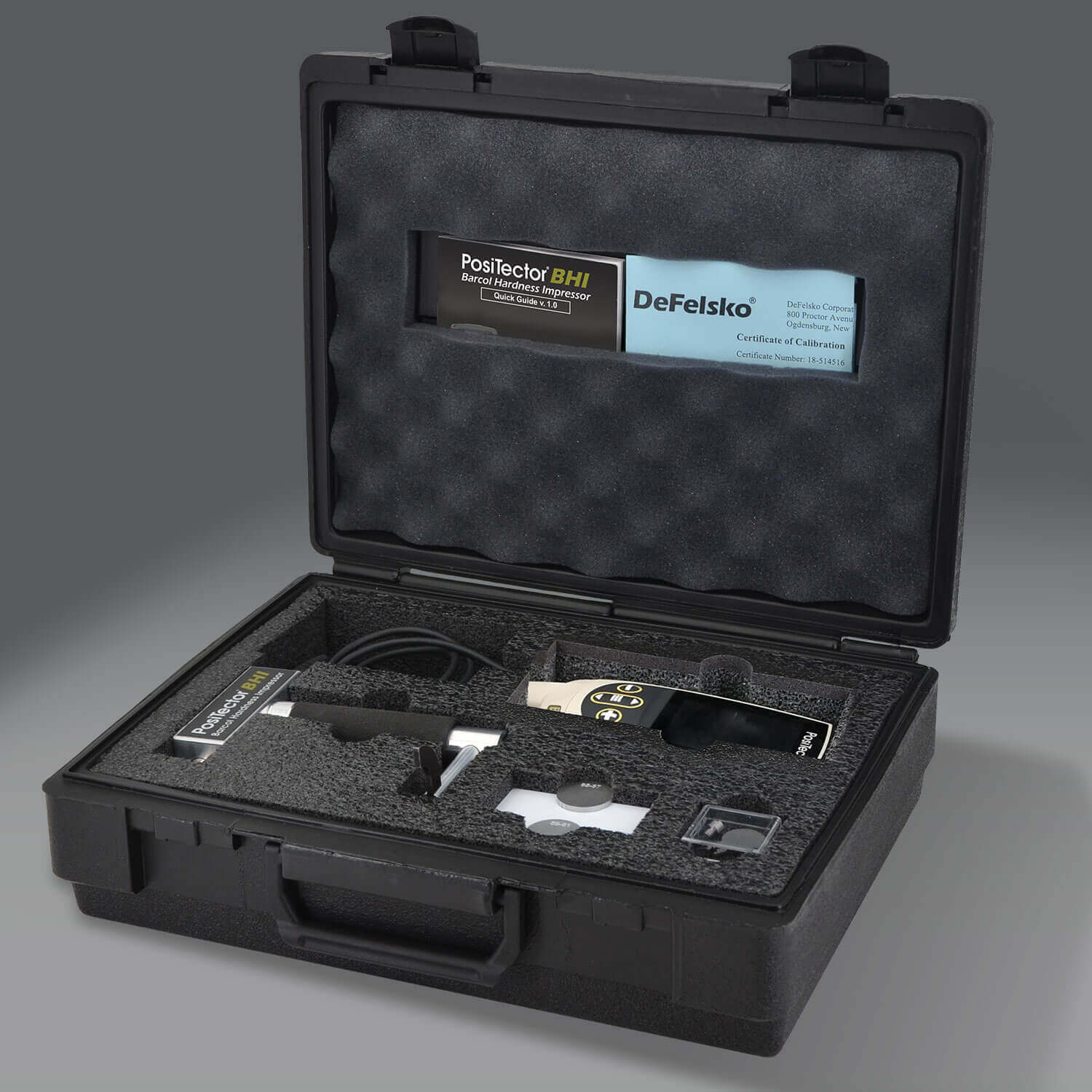

Includes spare, field-replaceable indenter with replacement tool
Conforms to ASTM B648/D2583, DIN EN 59, and AS/NZS 3572.22
Two-year warranty on gauge body and probe
Supports PosiTector interchangeable platfor
Selectable display language
Auto-rotating display with Flip Lock
Uses alkaline or rechargeable batteries (built-in charger)

Applications

Aluminum and aluminum alloy testing
Copper and brass hardness measurement
Hard plastic and fiber-reinforced plastic testing
Composite material evaluation
Quality control in manufacturing processes
Material selection and verification
Research and development laboratories
Aerospace component inspection
Automotive parts testing
Construction material assessment

Technical Data

Specification	Value
Measurement Range	200–1000 Barcol
Resolution	0.1 Barcol
Accuracy	±2 Barcol
Display	2.8″ Color Touchscreen
Connectivity	USB, Wi-Fi, Bluetooth
Operating Temperature	-10°C to +50°C
Battery Life	Over 20 hours continuous operation
Battery Type	3 AAA Alkaline or Rechargeable (built-in charger)
Dimensions (L x W x H)	137 x 61 x 28 mm
Weight	140 g (without batteries)
Calibration	Certificate of Calibration included
Compliance Standards	ASTM B648/D2583, DIN EN 59, AS/NZS 3572.22
Warranty	2 years (gauge body and probe)
