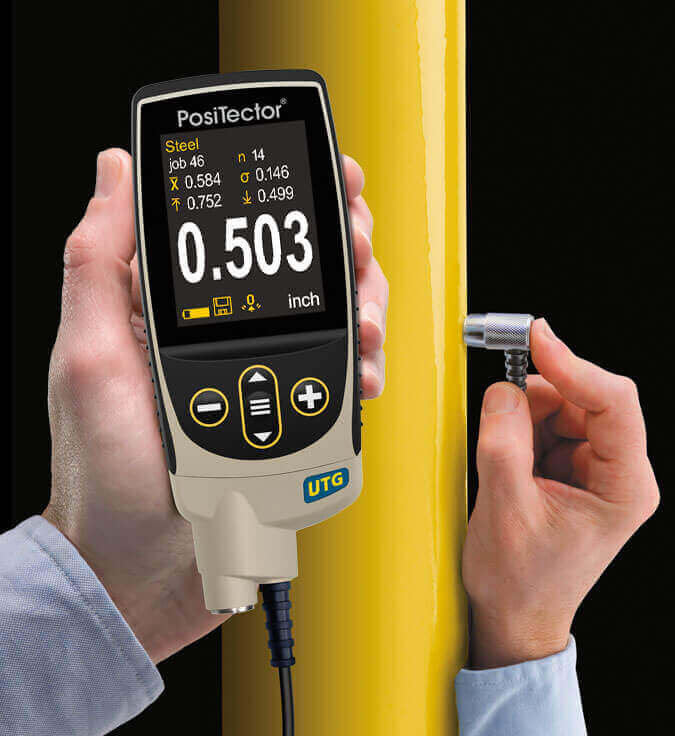

PosiTector UTG C Series – Corrosion

Budget-friendly yet reliable corrosion monitoring gauge

UTG C Probe measures the wall thickness of materials such as steel, plastic, and more. Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side.

Features

5 MHz dual element transducer with durable PEEK probe tip
Automatic V-Path compensation for thin materials
Precision ultrasonic transducers provide fast, accurate readings
Large 2.8″ impact resistant color touchscreen with redesigned keypad for quick menu navigation
Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
Pre-programmed velocities—Simply select from a list of common materials or enter your own with ease
Min Scan mode—take continuous readings and record min/max thicknesses — ideal for quick inspection
PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software

Applications

Technical Data

Probe Type	5 MHz Dual Element
Thru-Paint Capability (Multiple Echo):	No
*Measurement Range – Single Echo:	0.040” to 5.000” 2.00 to 125.00 mm
Resolution	0.001” 0.01 mm
Accuracy	±0.001” ±0.03 mm
*Measurement range is for carbon steel and depends upon surface condition, temperature, and material.
