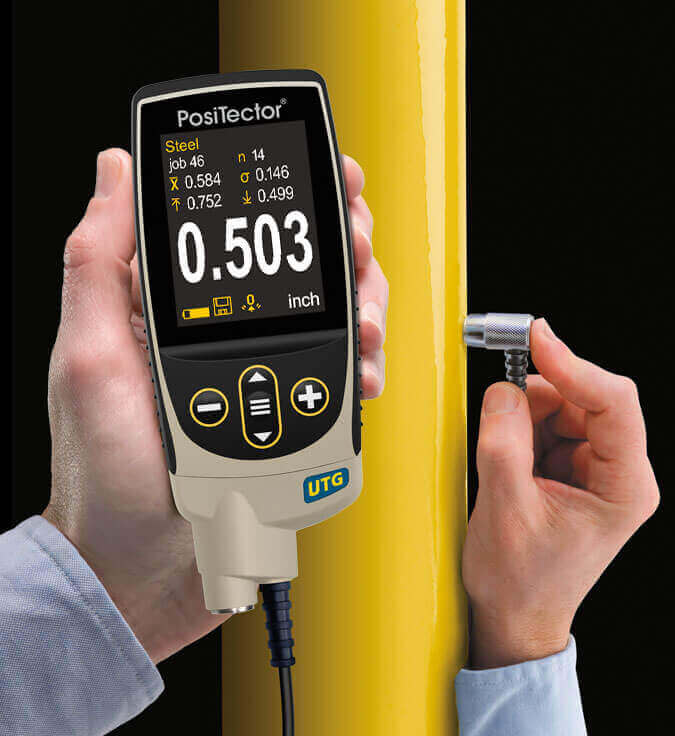

UTG M Probe features Thru-Paint capability to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating. Also ideal for measuring applications requiring a more durable wear face.
UTG M Probe features Thru-Paint capability to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating. Also ideal for measuring applications requiring a more durable wear face.
| Probe Type | 5 MHz Dual Element |
| Thru-Paint Capability (Multiple Echo): | Yes |
| *Measurement Range – Single Echo: | 0.100” to 5.000”
2.50 to 125.00 mm |
| *Measurement Range – Multiple Echo: | 0.100” to 2.500”
2.50 to 60.00 mm |
| Resolution | 0.001”
0.01 mm |
| Accuracy | ±0.001”
±0.03 mm |
| *Measurement range is for carbon steel and depends upon surface condition, temperature, and material. | |
