Home Products Metals Testing PosiTest PT

PosiTest PT

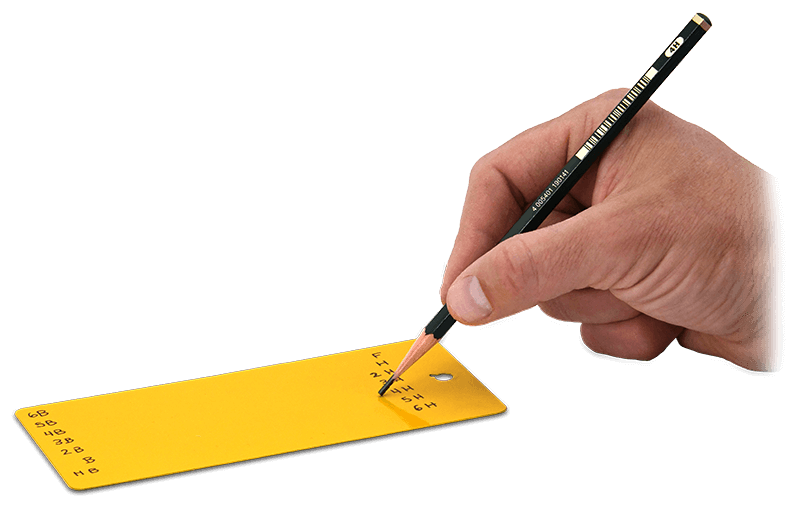

Pencil Hardness Test

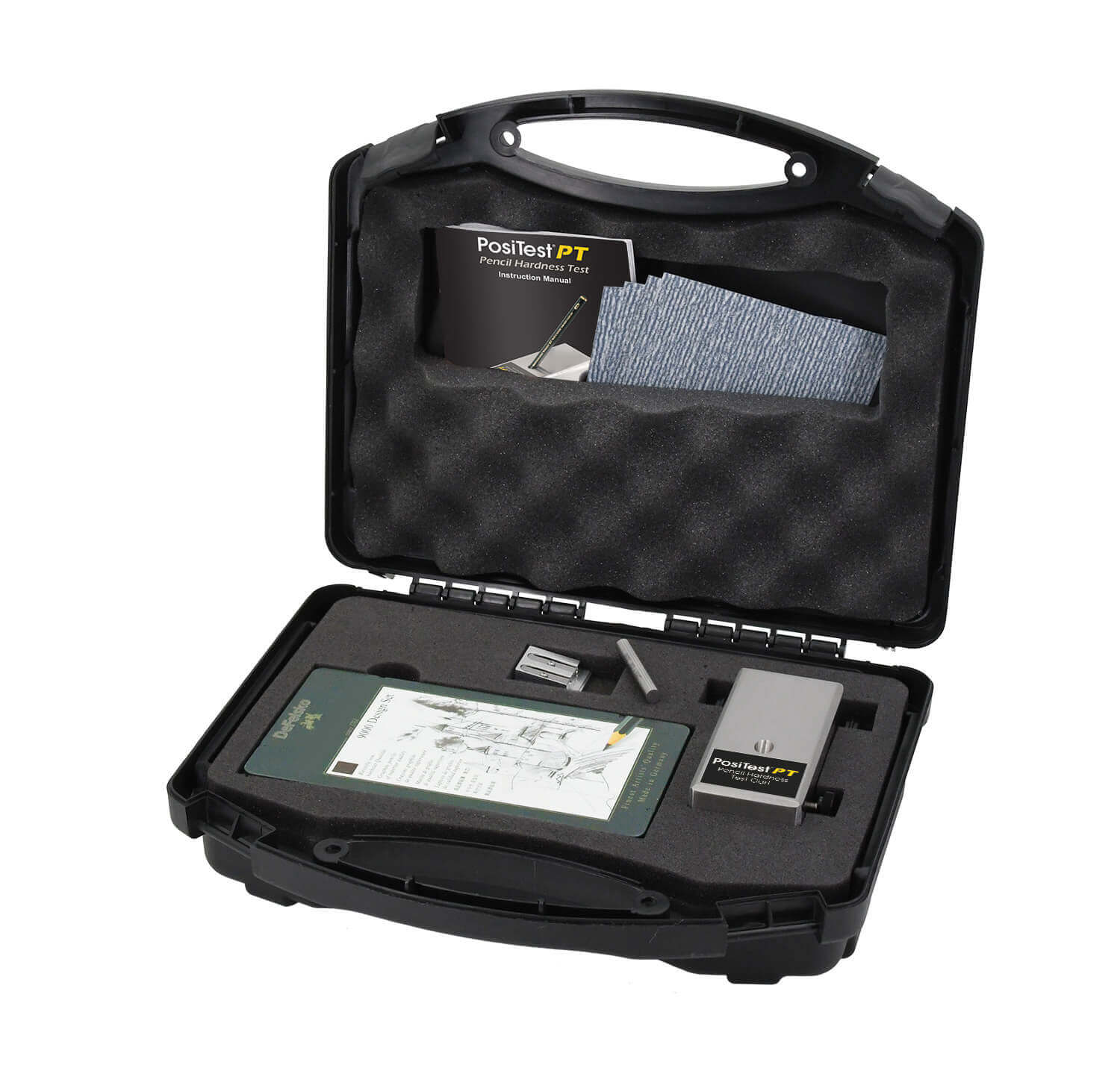

The PosiTest PT is a precision instrument designed to evaluate the scratch resistance and relative hardness of coatings such as paint, films, lacquers, and resins. Compliant with ISO 15184 and ASTM D3363 standards, it includes 14 high-quality graphite pencils ranging from 6B to 6H hardness, a custom aluminum pencil sharpener, and a 400-grit sandpaper pack for lead preparation. For enhanced consistency, the Complete Kit offers an optional Pencil Cart that applies a constant 7.35 N (1.65 lbf) force at a 45° angle, ensuring uniform testing conditions. This comprehensive setup provides all necessary tools for conducting reliable pencil hardness tests.

Inquire Now
Download Brochure
Features
  • Evaluates scratch resistance and relative hardness of coating
  • Includes 14 graphite pencils (6B to 6H) in a protective aluminum case
  • Custom aluminum pencil sharpener with hardened steel blades
  • Pack of 400-grit sandpaper for flattening pencil leads
  • Optional Pencil Cart applies a constant 7.35 N (1.65 lbf) force at a 45° angle
  • Leveling rod ensures parallel alignment during testing
  • Compliant with ISO 15184, ASTM D3363, JIS K-5600, BS 3900-E19, MIL-C-27-227, ECCA-T4-1, SNV 37113, SIS 184187, NEN 5350
Applications
  • Paint and coating manufacturers
  • Automotive refinishing
  • Aerospace component testing
  • Industrial equipment coatings
  • Consumer electronics
  • Architectural coatings
  • Furniture and appliance finishes
  • Plastic and resin coatings
  • Quality control laboratories
  • Research and development facilities
Technical Data
Specification Value
Measurement Method Pencil hardness test (Wolff-Wilborn)
Pencil Hardness Range 6B to 6H
Pencil Quantity 14 pencils
Sharpener Custom aluminum with hardened steel blades
Sandpaper 400-grit pack
Pencil Cart Force 7.35 N (1.65 lbf) at 45° angle (optional)
Leveling Rod Included in Complete Kit
Compliance Standards ISO 15184, ASTM D3363, JIS K-5600, BS 3900-E19, MIL-C-27-227, ECCA-T4-1, SNV 37113, SIS 184187, NEN 5350
Warranty 2 years
  • Tags: ASTM D3363, coating hardness evaluation, coating quality control, DeFelsko PosiTest PT, film hardness testing, industrial coating testing, ISO 15184, lacquer hardness tester, paint hardness measurement, pencil hardness tester, portable hardness tester, resin hardness evaluation, scratch resistance test, Wolff-Wilborn test

Tags:

pencil hardness tester, coating hardness evaluation, scratch resistance test, paint hardness measurement, film hardness testing, lacquer hardness tester, resin hardness evaluation, ISO 15184, ASTM D3363, Wolff-Wilborn test, DeFelsko PosiTest PT, coating quality control, industrial coating testing, portable hardness tester

Hardness Testing, Metals Testing
