SENTRY

Co-60 Gamma-Ray Source Projectors

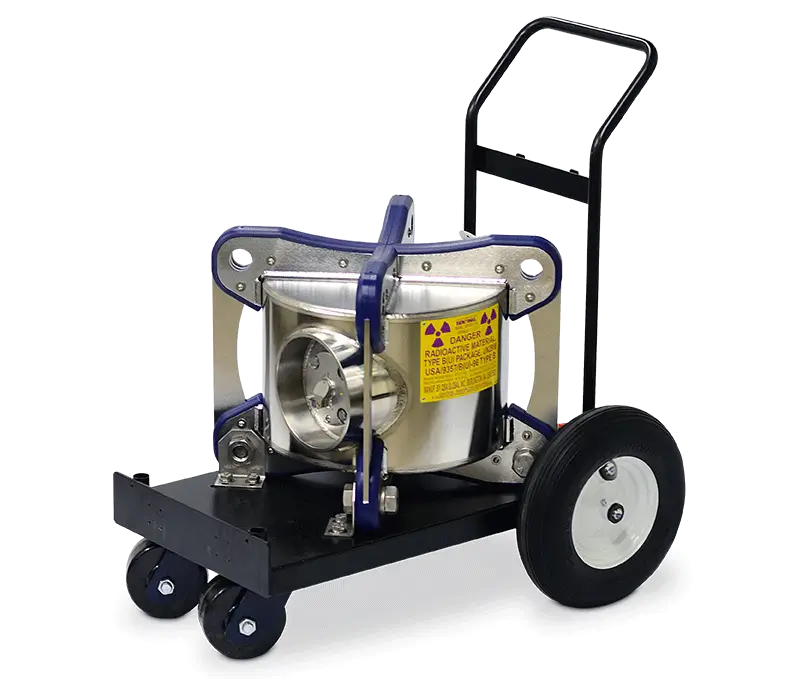

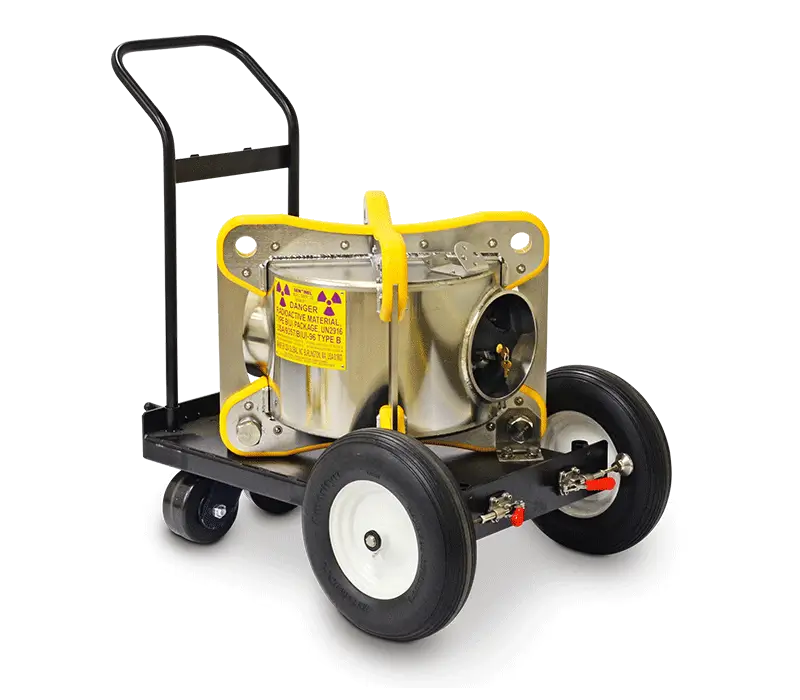

SENTRY Series are mobile Co‑60 gamma-ray source projectors engineered by QSA Global, built for durability, simplicity, and minimal operator radiation exposure. Drawing on proven Sentinel 880 Series design features, they deliver high productivity with low maintenance in demanding industrial radiography settings, particularly suited for heavy-duty inspections using cobalt-60.

Features

Specifically designed for Co‑60 sources
Heavy-duty stainless steel cylinder with titanium “S‑tube” and cast depleted uranium shielding
Proven Sentinel 880 Series safety design for guided tube interlocks and secure lockin
Simple and robust operation optimized for field use
Low operator dose and Type B(U) transport certification

Applications

Weld inspection on thick steel
Casting inspection (steel, light alloys)
Concrete structure radiography
Pipeline and pressure vessel flaw detection
Rail and structural crack inspection
Heavy fabrication QA
Military and aircraft component evaluation

Technical Data

Parameter	SENTRY Series 110	SENTRY Series 330
Co‑60 Source Capacity	110 Ci (≈4.07 TBq)	330 Ci (≈12 TBq)
Device Weight	~605–780 lb (274–354 kg)	~780 lb (351–354 kg)
Depleted Uranium Shield	~295 lb (133 kg)	~485 lb (218 kg)
Transport Certification	Type B(U) package	Type B(U) package
Design Basis	Derived from Sentinel 880 Series	Derived from Sentinel 880 Series
