Soundsafe

High Performance Ultrasonic Couplant

Soundsafe® is a medium-viscosity, thixotropic ultrasonic couplant formulated for general‑purpose NDT applications. Engineered for high-performance flaw detection, thickness gauging, flow metering, and acoustic emission testing, it provides exceptional surface wetting, superior corrosion protection, and compatibility with nuclear- and aerospace‑grade inspections—all in a non-toxic, silicone‑free formula trusted by industry leaders including Pratt & Whitney.

Features

Wide specification approvals (API, ASME, ASTM F519/F945, AWS, PWA 36604/PMC 4385)
Excellent surface wetting and fast, even coverage
Thixotropic gel adheres to vertical and overhead surfaces without dripping
Highest level of corrosion inhibition among Magnaflux general-purpose gels
Increased acoustic impedance reduces surface noise
Provides good transducer lubrication
Slower drying time extends inspection periods
Non-toxic, non-irritating; suitable for hydrogen embrittlement testing
Approved for aerospace and nuclear use (Pratt & Whitney)

Applications

Flaw detection
Thickness gauging
Flow metering
Acoustic emission testing
Vertical or overhead surfaces
Bridge pins, welds, anchor bolts
Weld inspection
Rough surfaces, fiberglass, plastic, titanium
Aerospace inspections
Nuclear inspections

Technical Data

Property	Specification
Viscosity (relative)	4 (medium-thick gel; ~80,000 cps per Brookfield)
Temperature Range	0 °C to 93 °C (32–200 °F)
Corrosion Inhibition Rating	~75 (on the Magnaflux 0–100 scale)
Acoustic Velocity	~1.64 × 10⁵ cm/sec
Acoustic Impedance	~1.72 Mrayls
Water Solubility	~90
Nuclear / Aerospace Approval	Pratt & Whitney PMC‑4385, PWA 36604
Compatibility	Most metals and composite materials

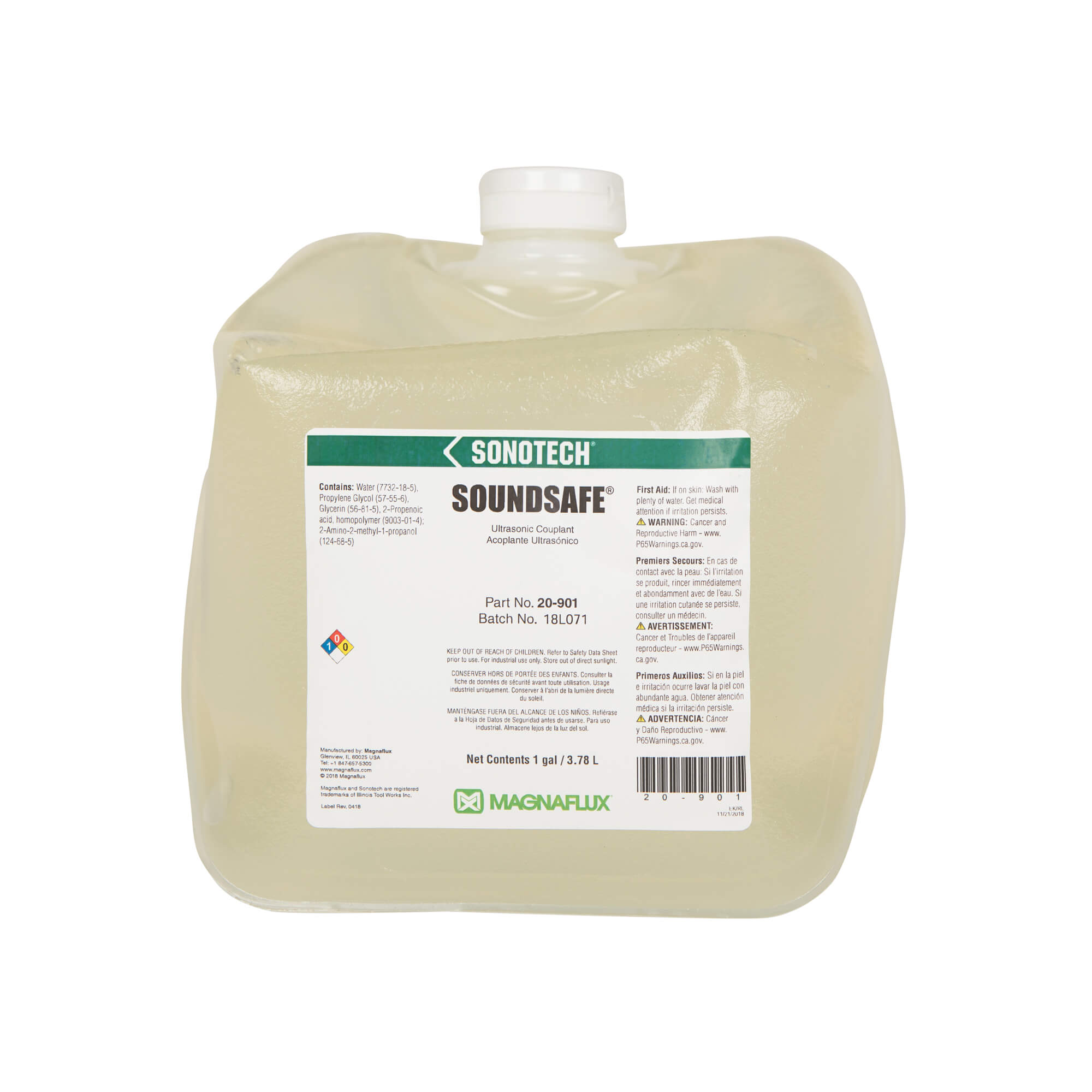

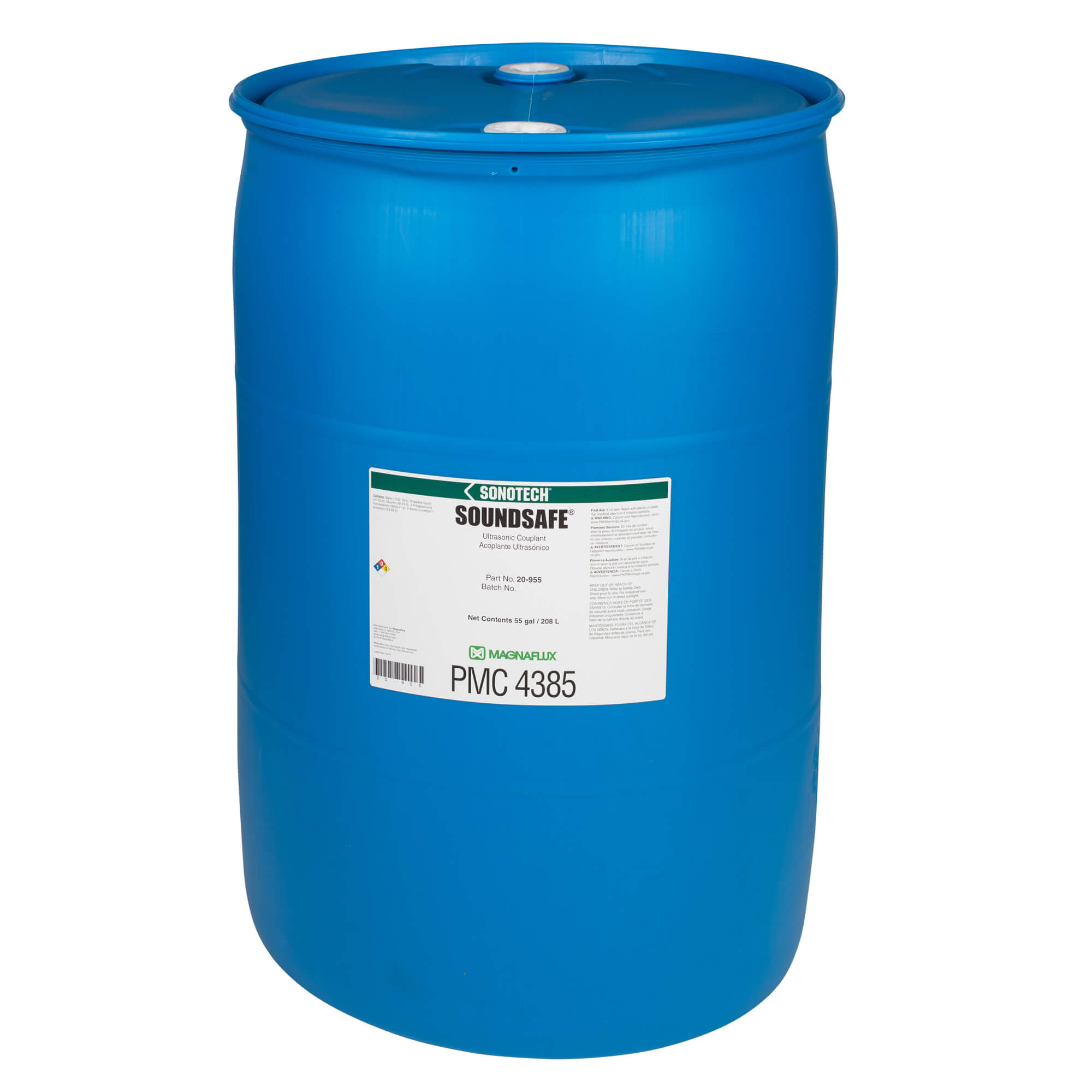

Packaging Sizes	1 gal (3.78 L), 5 gal (18.9 L), 55 gal (208 L)
