Universal SW

Magnetic test bench

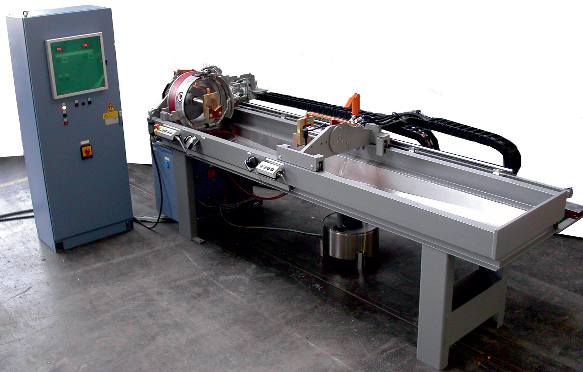

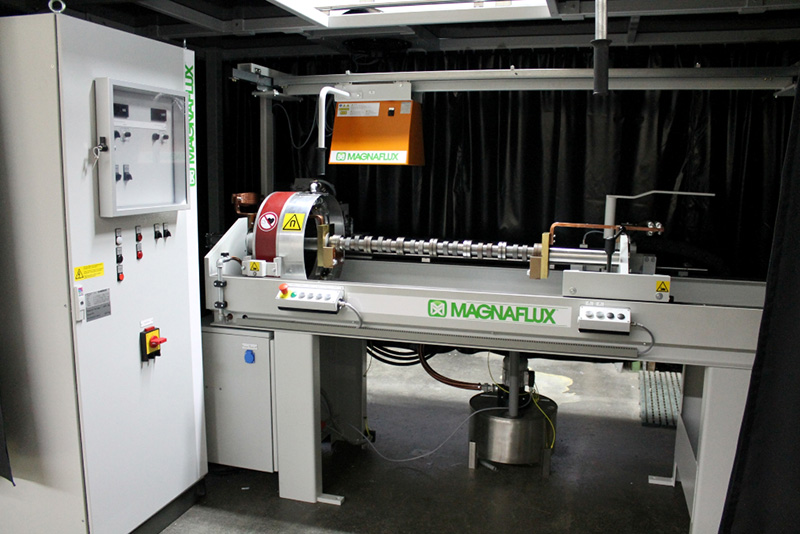

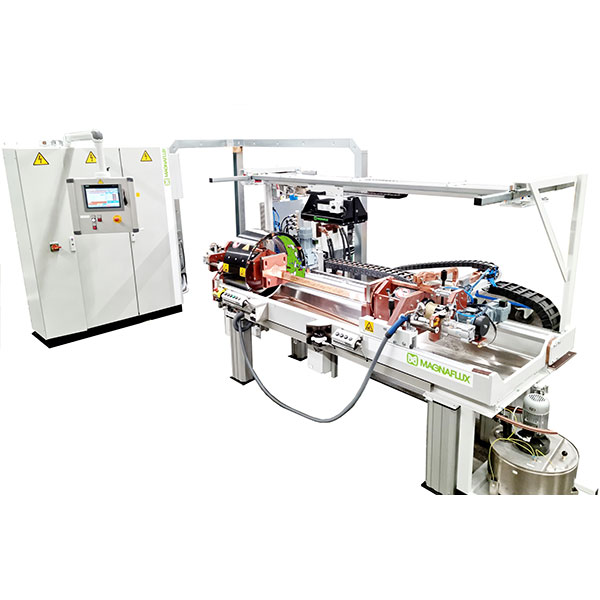

The Magnaflux Universal SW is a versatile, heavy-duty magnetic particle inspection bench with dual AC circuits that simultaneously detect longitudinal and transverse cracks. Accommodating parts from 1.2 m to 3.2 m (standard) or up to 1,000 kg (optional), it supports “wet continuous” methods with pneumatic clamping, user-movable coils, and full demagnetization control—perfect for consistent, high-throughput NDT in diverse industrial settings

Features

Two independently adjustable AC circuits for multi-directional inspection
Pneumatic, infinitely variable clamping (1.2–3.2 m)
Manually moveable magnetization coil
Stainless steel drip tray and tank
Dust-proof switch cabinet with display and controls
Front-mounted control box with E‑stop
Demagnetization on both AC circuits
Optional: automatic coil traction, ring‑shower spray, rotation devices, darkened cabin

Applications

Technical Data

Parameter	Universal SW Standard	Universal SW Optional Upgrade
Clamping length	1,200 – 3,200 mm	Same
Maximum part weight	300 kg	1,000 kg
Magnetization circuits	Dual AC (longitudinal & transverse)	Dual AC
Coil movement	Manual	Manual (same)
Clamping mechanism	Pneumatic, infinitely variable	Same
Tank material	Stainless steel	Same
Control cabinet	Dust-proof with display	Same
Operator interface	Front box with E-stop	Same
Demagnetization	Both circuits	Same
Optional features	—	Coil traction, ring shower, rotation, dark cabin
