USM Go+

Handheld ultrasonic flaw detection starts here

Achieve reliable results in a variety of inspection situations throughout the industrial and process spectrum, from aerospace to power generation and from the automotive sector to the oil and gas industry.

When ultrasonic testing circumstances call for a portable and lightweight handheld instrument, there is no reason to compromise quality for convenience.

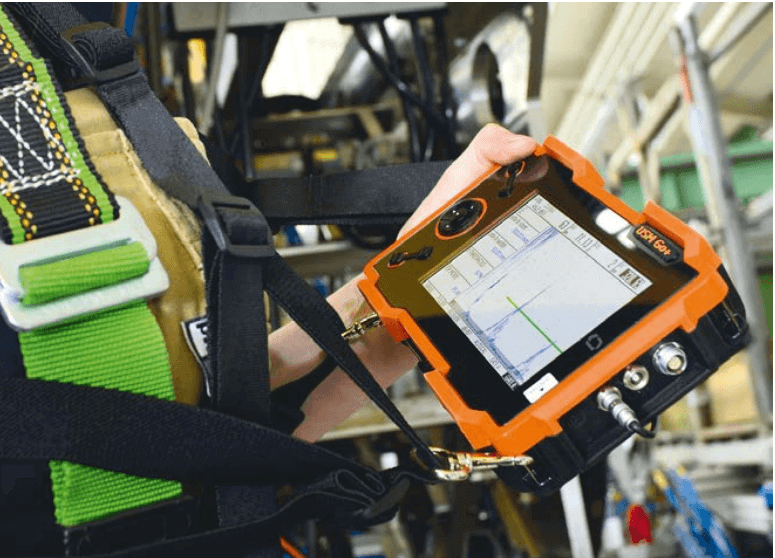

When flaw detection equipment can be operated with one hand, inspectors are free to make changes to the probe or their environment with the other. Inspections don’t get easier than that. This is truly the ultrasonic flaw detector designed to stand up to any inspection challenge.

Features

A-Scan video recording up to 8 minutes allows live reporting and playback of an entire inspection sequence for review by more qualified personnel

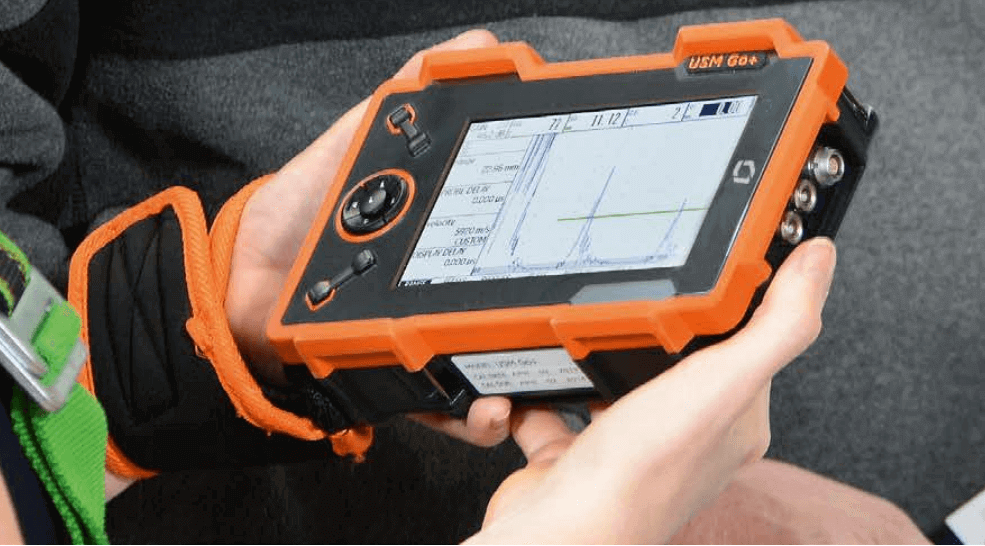

A truly ambidextrous instrument with the flip function of the display and functionality of the rocker switches
AUTOANG (Auto Angle) feature calculates the refracted angle of an angle beam wedge and utilizes it for trigonometric flaw location projections
A standard USB connection allows for data to be downloaded from the flaw detector for further analysis or storage
The instrument’s 2 GB memory can be easily exchanged by SD cards up to 16 GB
Reports are produced in jpeg or bmp format so there is no need for special reading software
Backwall Echo Attenuator (BEA) helps to find very small defects, improving detectability
Automatic Gate Threshold for the 2 gates ensuring accurate measurements made under the same conditions

Applications

Weld inspection
Inspection of forging and castings
Inspection of rails
Inspection of composites
More demanding applications such as narrow band filters, low noise digital amplifier, and square wave pulsers

Technical Data

Features
Display	5 inch 800 × 480 pixels 108 × 65 mm (W x H) > 200 cd/sq. m
Size (W x H x D)	175 × 111 × 50 mm (W × H × D)
Weight	850 g with battery
Protection Class	IP 67
Operating Temperature	0 – 55 °C
Battery	Li-Ion, rechargeable, 6 hours operation time
Power adapter / charger	100 – 240 V AC, 50/60 Hz
Probe connector	Dual Lemo-00 (T/R)
Pulser	120 – 300 V, 30 – 500 ns, flank < 10 ns, Spike, Square wave option
Puls Repetition Frequency	15 – 2000 Hz
Damping	50 and 1000 Ohm
Receiver	110 dB dynamic, 0.51 ~ 19.6 MHz analog bandwidth
Filter	BB 1-5 MHz, 2,25 MHz, 4 MHz, 5 MHz, 10 MHz, 13 MHz, 15 MHz
Gates	A and B independent, B triggered by A, C option
Units	mm, inch, µs
Options	AWS sizing tool (AWS D1.1), DAC 16 points according to EN 1712, EN 1713, EN 1714, ASTM E164, TCG 110 dB dynamic, DGS sizing tool according to EN 1712, EN 1713, EN 1714, ASTM E164, Data Logger, 3rd gate C, Square Wave Pulser
Compliance	EN 55011,EN 61000-6-2: 2011, EN 12668, ASTM E 1324, E317, ANSI/NCSL Z 540-1-1994, MIL-STD 45662A, MIL-STD 2154
