LE5000

250mm chart Chart Hybrid Recorder

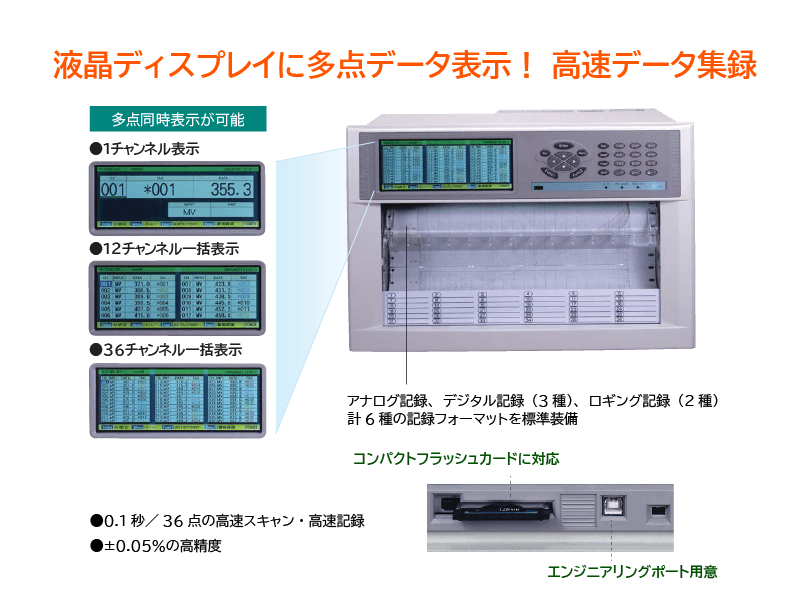

The LE5000 Series is a high-performance, 250 mm dot-printing hybrid recorder featuring universal multi-range inputs, exceptional accuracy (±0.05%), rapid sampling (0.1 s for all 36 channels) and fast analog chart updates (~3 s per line). Its user-friendly front keys and optional USB PC configuration simplify operation, while additional CF card memory, robust noise immunity, and flexible communication options make it a reliable solution for dynamic industrial applications.

Features

250 mm analog chart with dot-printing in up to 10 user-selectable colors
High-speed scanning: 0.1 s for all 36 points; recording speed ~3 s per line
Exceptional accuracy: ±0.05% with resolution to 1 μV or 0.1 °C
Universal multi-range inputs: DC voltage, DC current (via external shunt), thermocouples, RTDs
Intuitive front-panel key operation, plus USB engineering port for PC setup
CF card backup for data logging and configuration storage
High noise immunity (≥130 dB common-mode, ≥50 dB series-mode suppression)
Optional RS-422A/RS-485/Ethernet communication and relay output interfaces
Configurable recording overlays and formats, including differential measurements

Applications

Process control and monitoring
Laboratory testing and R&D
Environmental and long-term data logging
Calibration and quality assurance
System integration in manufacturing and utilities

Technical Data

Specification	Details
Chart Width	250 mm analog strip paper
Input Points	12, 24, or 36 points (model-dependent)
Input Types	Universal: DC voltage/current, thermocouples, RTDs
Accuracy	±0.05% (±1 μV or 0.1 °C resolution)
Measurement Interval	0.1 seconds for all points (36-ch models)
Recording Method	Dot-printing raster scan with 10 selectable colors
Chart Speed	~3 seconds per line
CF Card Storage	Optional—for data logging and parameter backup
Communication Interfaces	USB (engineering), optional RS-422A/485, Ethernet, relay outputs
Noise Immunity	≥130 dB common-mode / ≥50 dB series-mode suppression
Configuration Flexibility	Supports differential logging and customizable digital display overlay formats
Power Supply	100–240 VAC, 50/60 Hz
Form Factor	Panel-mount design
