Paper Schmidt PS8000

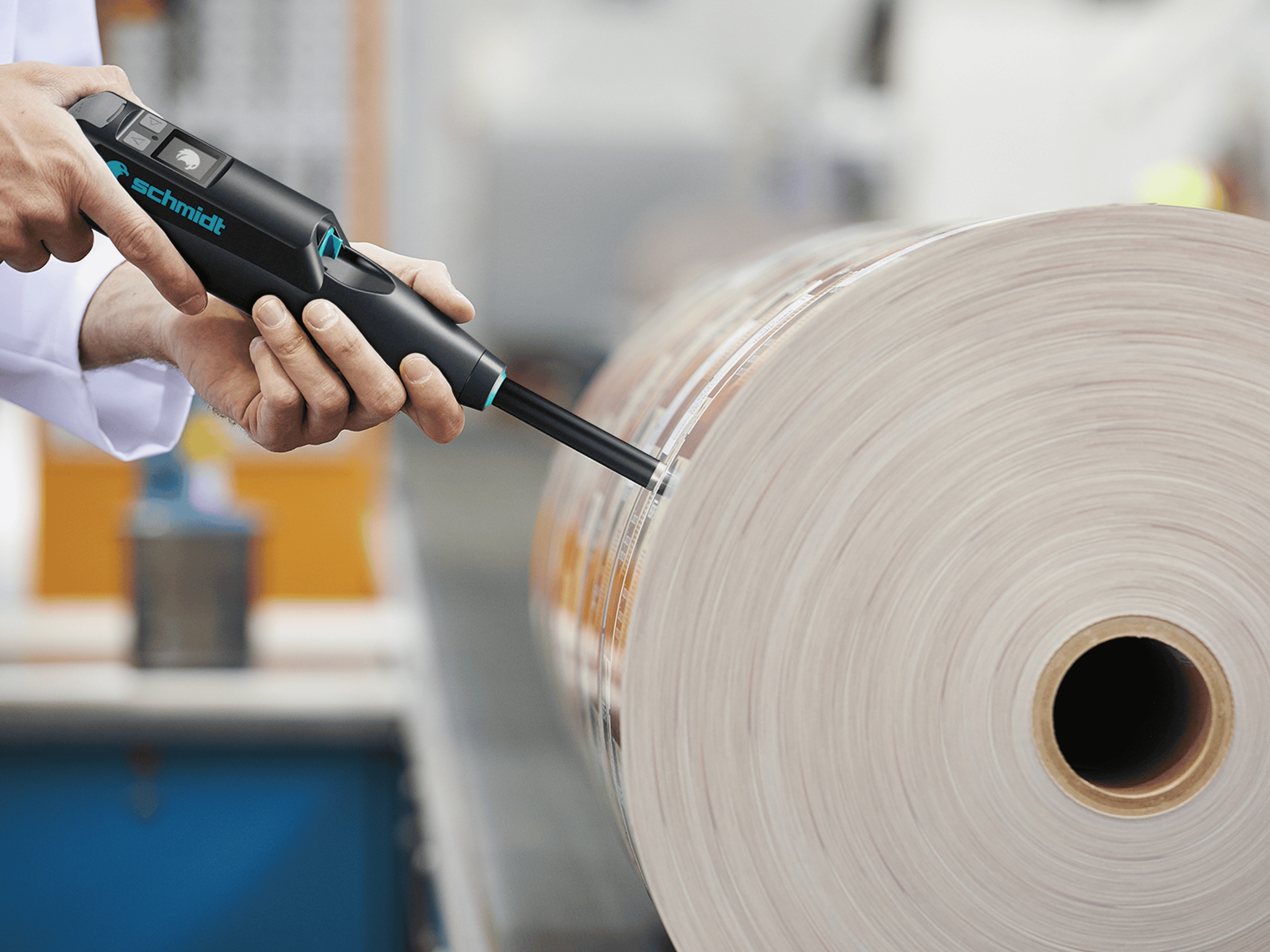

Roll hardness testing using rebound hammer technology

The Paper Schmidt PS8000 is a specialized rebound hammer engineered for precise roll hardness testing of paper, film, foil, and similar materials. Boasting impact-angle-independent measurements and optical rebound velocity quotient technology, it delivers unmatched accuracy and repeatability in roll profiling. With a rugged, Swiss-made design, live on-screen impact feedback, and flexible data handling through PC software, mobile apps, or portable printers, it streamlines roll quality monitoring in demanding industrial environments.

Inquire Now
Download Brochure
Features
  • Optical rebound velocity quotient technology (impact-angle independent)
  • On-screen display of individual impacts and live roll profile
  • Preset min/max thresholds and instant deviation alerts
  • Robust, durable Swiss-made construction suited for industrial use
  • Stores over 20,000 impact readings in internal memory
  • Flexible data export via Bluetooth LE or USB; compatible with PC software, mobile app, and portable printers
  • Integrated mobile app features: geolocated logbook, images, audio/text annotations, barcode/QR scanning, series statistics, CSV reporting
  • TAPPI T834 and TIP 1004-01 compliant
Applications
  • Paper roll hardness profiling
  • Quality control in paper manufacturing
  • Film and foil roll inspection
  • Process monitoring for roll winding operations
  • Automated hardness validation on production lines
Technical Data
Parameter Specification
Measurement Type Roll profile rebound hardness (series of rebound values)
Technology Optical rebound velocity quotient
Impact Energy 0.735 Nm
Measurement Range Approx. 17–80 R
Memory > 20,000 impact readings
Display Analog + backlit digital, 100 × 100 px graphic
Connectivity Bluetooth LE and USB (data transfer, charging, updates)
Software Support Mobile App; PC software for data management & export
Standards Compliance TAPPI T834, TAPPI TIP 1004-01
Included Supply Device, rechargeable battery, USB cable, strap, bag, documentation, factory certificate
  • Tags: industrial durability, mobile app compatible, optical rebound technology, paper roll testing, rebound hammer, roll hardness tester, roll profiling, roll quality control, Swiss made, TAPPI compliant

Tags:

paper roll testing, roll hardness tester, rebound hammer, roll profiling, optical rebound technology, TAPPI compliant, roll quality control, mobile app compatible, Swiss made, industrial durability
