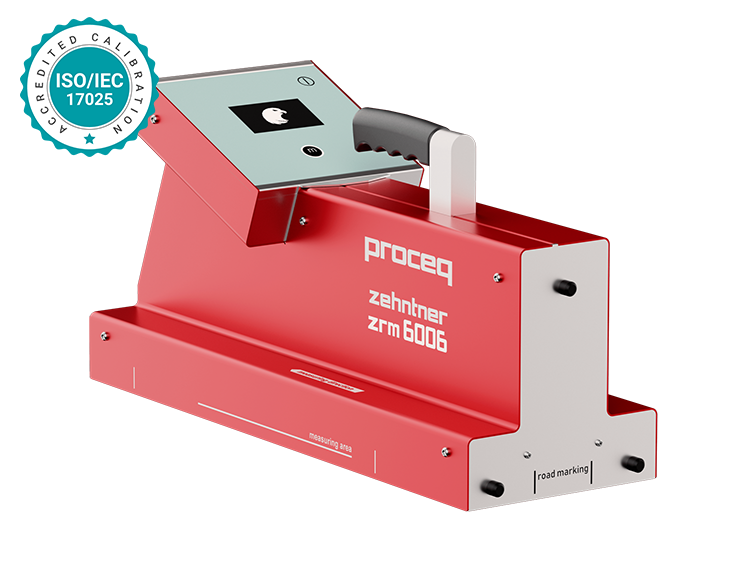

Zehntner ZRM 6006

An entry-level and easy to use retroreflectometer

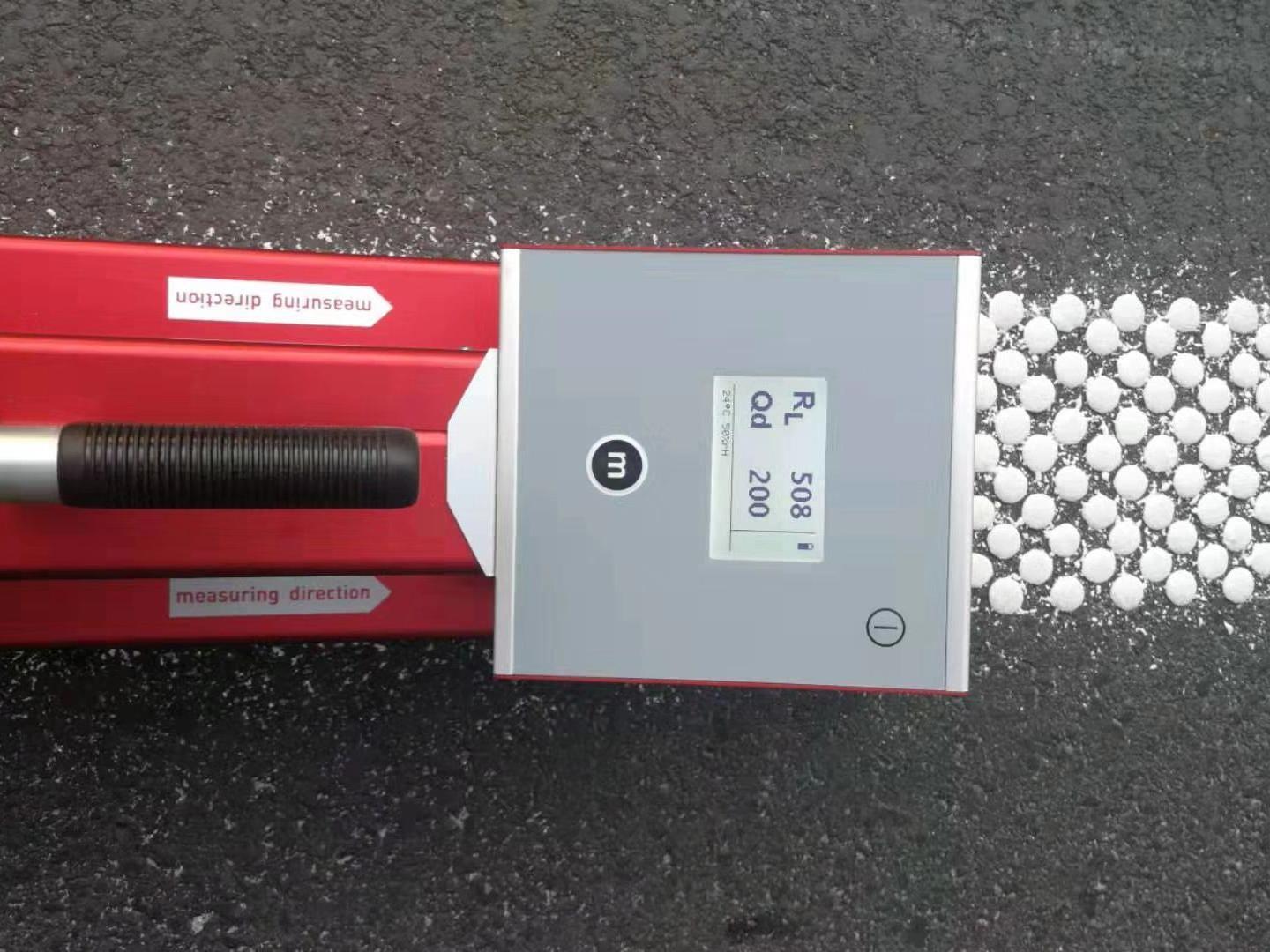

The Zehntner ZRM 6006 RL‑Qd is a budget-friendly, entry-level retroreflectometer engineered for quick, reliable assessment of road and airport marking visibility—both night (RL) and day (Qd)—with just one button press. Ultra‑fast measurements in about 2 seconds, it performs accurately in both dry and wet conditions, in the field or lab, and comes factory‑calibrated with metrology-grade traceability. Built to meet key international standards, it ensures dependable nighttime and daytime visibility data for quality assurance and safety compliance.

Inquire Now
Download Brochure
Features
  • One‑button operation for ease of use
  • Ultrafast RL and Qd measurement (~2 s)
  • Operates in dry, wet, day, or night environments
  • Factory calibration traceable to Swiss METAS
  • Compliance with EN 1436, ASTM E1710, E2302, E2177
  • Portable, field‑ and lab‑ready design
Applications
  • Road authorities
  • Manufacturers of road‑marking materials
  • Contractors and consultants
  • Airport marking quality control
  • Field measurement and lab evaluation
  • Project acceptance and quality assurance agencies
Technical Data
Parameter Specification
Equivalent Observation Distance 30 m
Measurement Modes RL dry (night), RL wet, Qd (day), °C/°F, rH%
Measuring Area (WxL) 52 mm × 218 mm
Measuring Range RL: 0–4 000 mcd·m⁻²·lx⁻¹Qd: 0–400 mcd·m⁻²·lx⁻¹
Accuracy (Repeatability) ± 2 %
Measuring Time ≈ 2 s
Observation Angle EN 1436 & ASTM E2302: 2.29°ASTM E1710: 1.05°
Illumination Angle RL: EN 1436: 1.24°RL: ASTM E1710: 88.76°Qd: diffuse
Display Transflective luminous LCD w/ LED backlight
Power / Battery Li‑Ion 14.4 V / 6.5 Ah
Housing Material Anodized aluminum
Dimensions (L×W×H) 560 mm × 190 mm × 280 mm
Weight 6.4 kg
Operating Temperature –10 °C to +50 °C, non‑condensing
Factory Calibration Traceable to Swiss METAS
Approvals / Standards EN 1436, ASTM E1710, E2302, E2177; StrAus‑Zert approval
